| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | 2heads, 3 heads, 5heads, 6 heads, etc |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $14,200-37,700 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 25 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 10 Sets/month |
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Use: | Woodworking | Style: | Horizontal |
| Voltage: | 380v,50HZ,3phase Or As Customer Needs | Warranty: | 12 Months |
| Motor Power: | 11kw X 2sets, 11kwx3sets, 11kw X5sets, Etc | Sawn Thickness Setting Mode: | Touching Screen Digital Control |

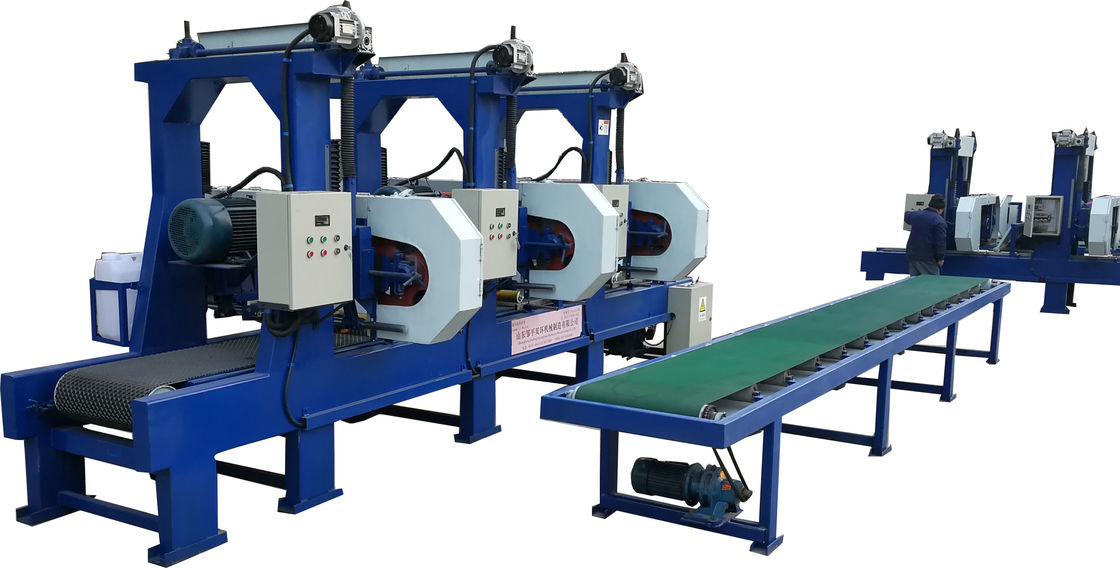

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
|
Model
|
1 head
|
2 heads
|
3 heads
|
5 heads
|
|
sawing wood width
|
400 mm
|
400 mm
|
400 mm
|
400 mm
|
|
sawing thickness
|
2-400mm
|
2-400mm
|
2-400mm
|
2-400mm
|
|
saw blade width
|
32,41,50,54,65mm
|
|||
|
saw blade length
|
5000mm
|
5000mm
|
5000mm
|
5000mm
|
|
main motor
|
11kw*1
|
11kw*2
|
11kw*3
|
11kw*5
|
|
Method of feeding
|
Frequecy control conveyor
|
Frequecy control conveyor
|
Frequecy control conveyor
|
Frequecy control conveyor
|
|
machine length
|
3500mm
|
3500mm
|
5000mm
|
8000mm
|
|
weight
|
1200KG
|
2000KG
|
2500KG
|
4000KG
|
