Detail Information

Name:	Bottom Slab Horizontal Band Saw	Type:	Band Saw
Use:	Woodworking	Power(W):	22kw, 380v/30h/50HZ
Feeding Motor:	5.5KW	Sawing Log Diameter:	100mm To 500mm
Sawing Wood Length:	1000mm To 3000mm	Saw Blade Width:	50mm To 80mm
Operation:	CNC Digital	Warranty:	1 Year
Highlight:	Single Head 22Kw Wood Resaw , Woodworking Slab Saw Mill , 22Kw Slab Saw Mill

Product Description

Woodworking Slabs Cutting Saw Mill, Horizontal band saw, single head resaws

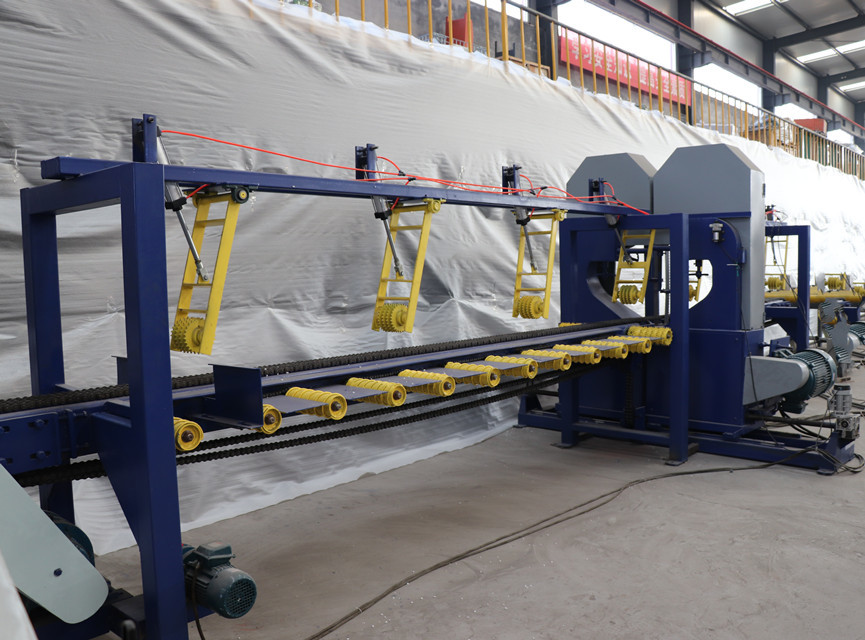

Bottom Slab Cutting Horizontal Band Saw

Designed to make the first cut at the bottom of the log, providing a flat surface for further processing.

• Ideal to cut pine.

• Base blocks 100% square.

• High production, continuous feed system.

• Produces up to 4,000 m3 per month.

• Efficient wood utilization with the thinnest cut on the market.

• Motorization and automatic electrical panel included.

• Automatic in-feed

Technical Data:

Technical specifications	DP500
Maximum log diameter	500mm
Minimum log diameter	100mm
Wood length	1000-3000mm
Feed speed	9-25m/min
Conveyor length	7000mm
Band wheel diameter	700mm
Saw blade width	50mm-80mms
Saw motor	22kw
Feed motor	5.5kw
Weight	2500kgs

Related Saw Machine

Block Bandsaw/ Twin Vertical Band Saw (Flat bottom)
Designed to receive logs with at least one straight bottom, making two vertical cuts, removing a slab from each side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· Block 100% Square

· High-production continuous feed system.

· Production up to 4,000 m³ per month.

· Highly efficient use of wood, with the thinnest kerf on the market.

· Motorization and automatic electric panel included.

· Automatic feeding, inverter speed adjustable .

Technical data :

Model	SLSP400
Maximum log diameter	400mm
Minimum log diameter	100mm
Wood length	1000~3000mm
Feed speed	9~25m/min
Conveyor length	7000mm
Bandwheel diameter	700mm
Blade width	50~80mm
Saw motor	18.5KW X 2
Feed motor	5.5kw
Weight	2500kg

Deatiled Image

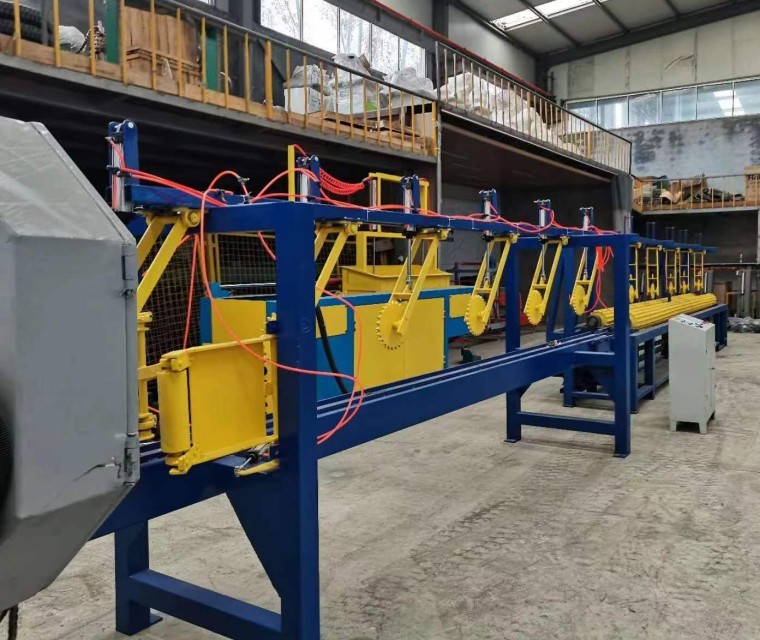

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment 2

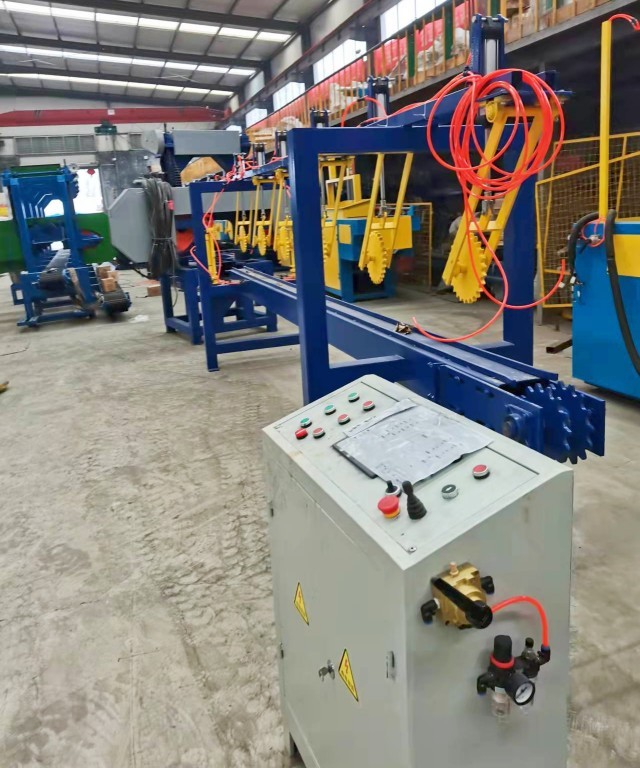

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment 3

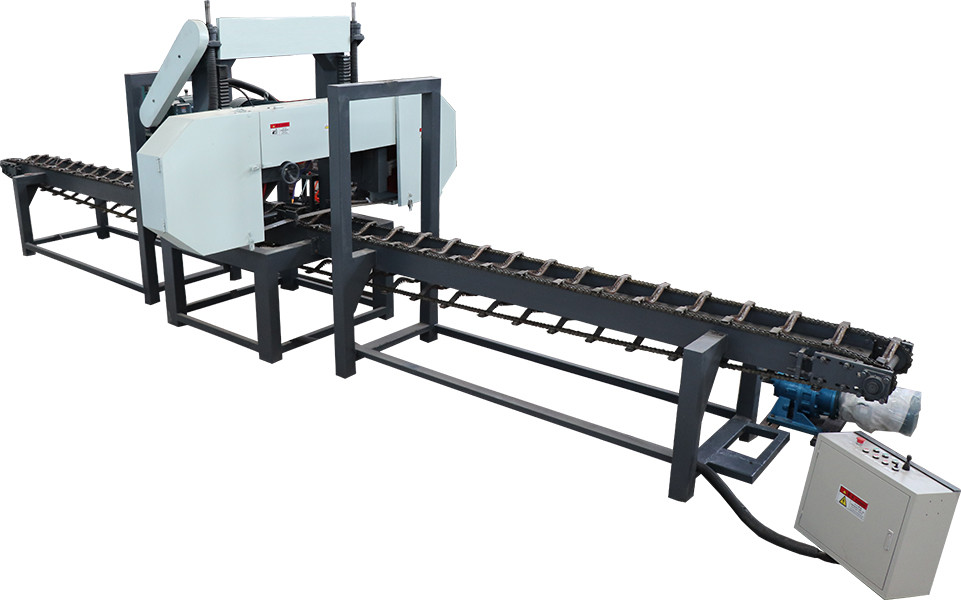

Multiple Heads Horizontal Resaw Band Saws

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

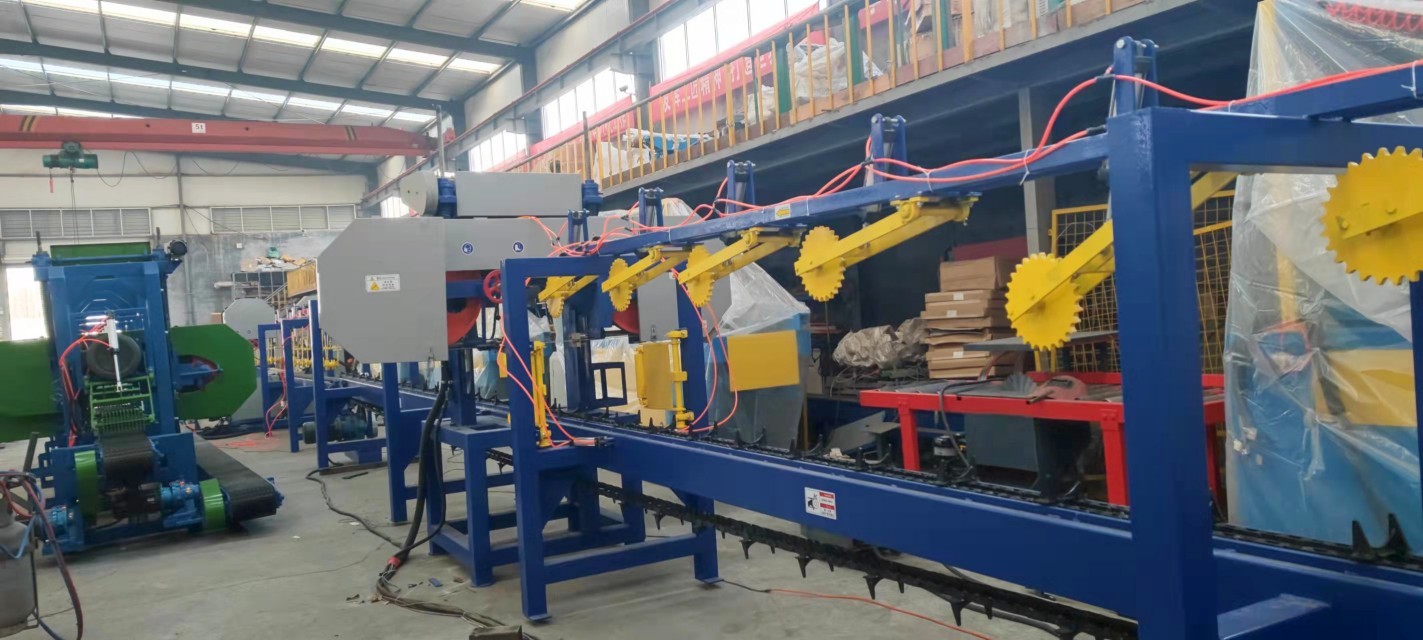

High-Production Bottom Slab Cutting Saw Mill with Industrial Sawmill Equipment 5

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DP500

Minimum Order Quantity:	1 SET
Price:	US $14,600-18,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500 sets/year
