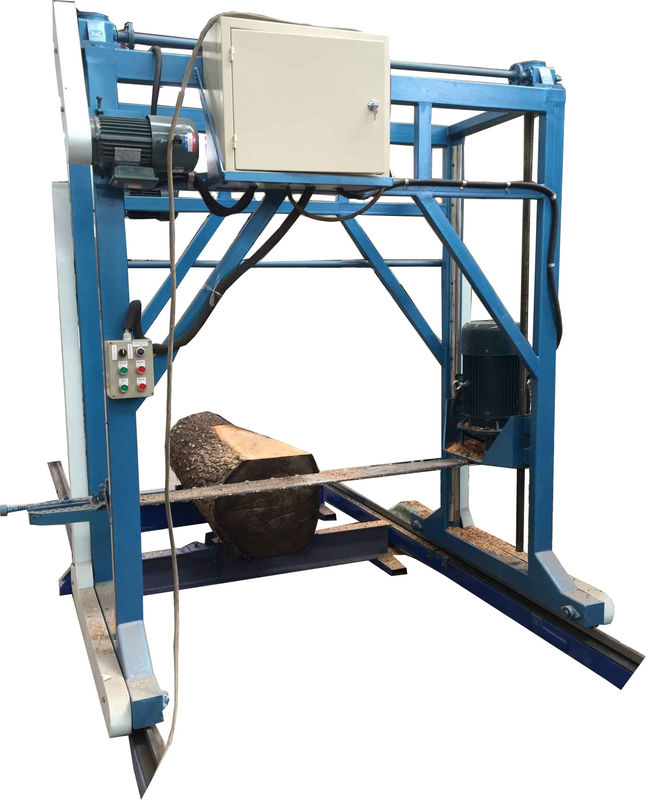

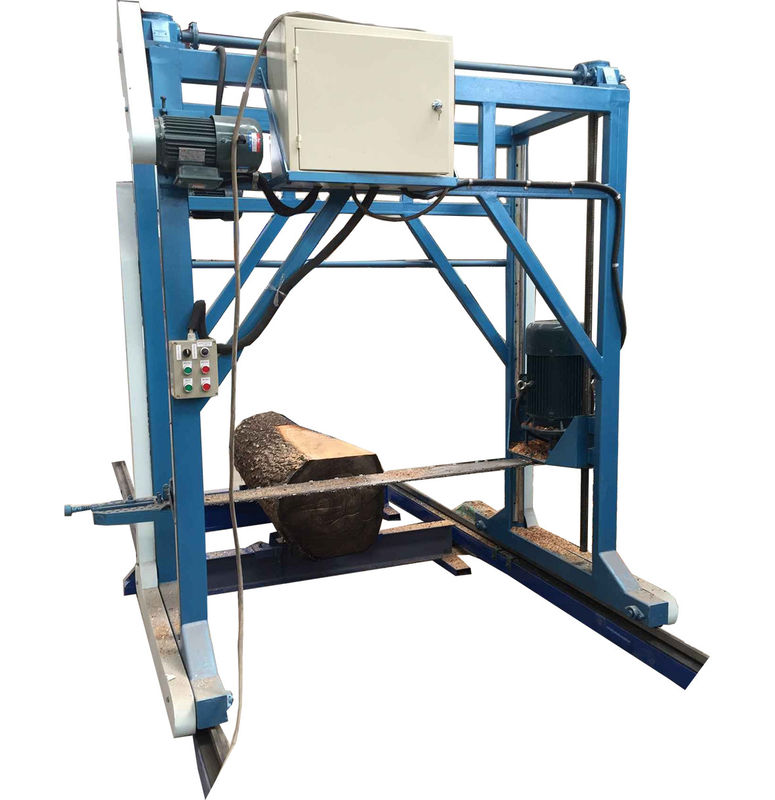

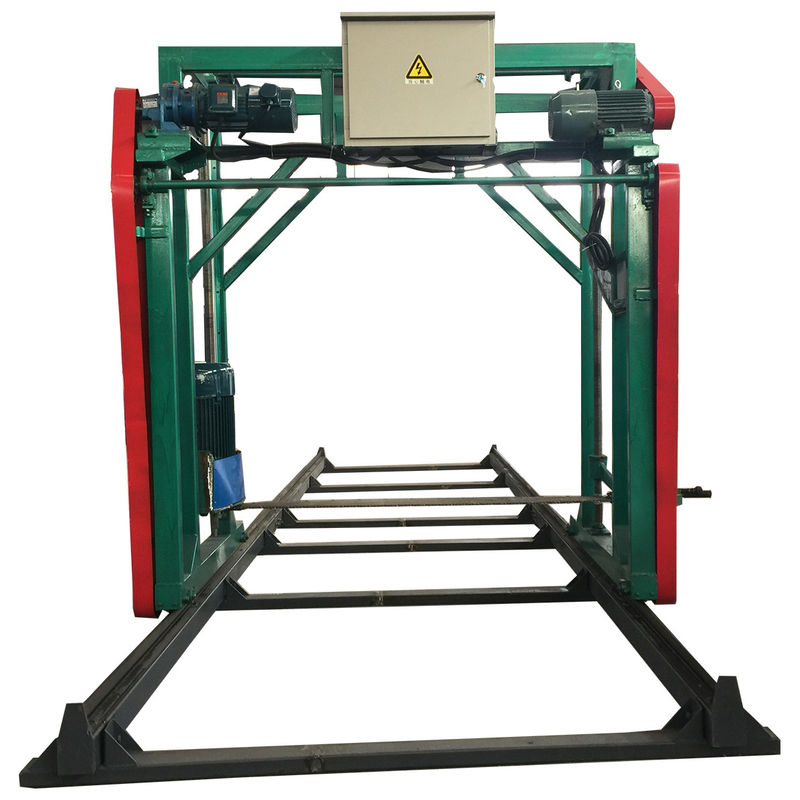

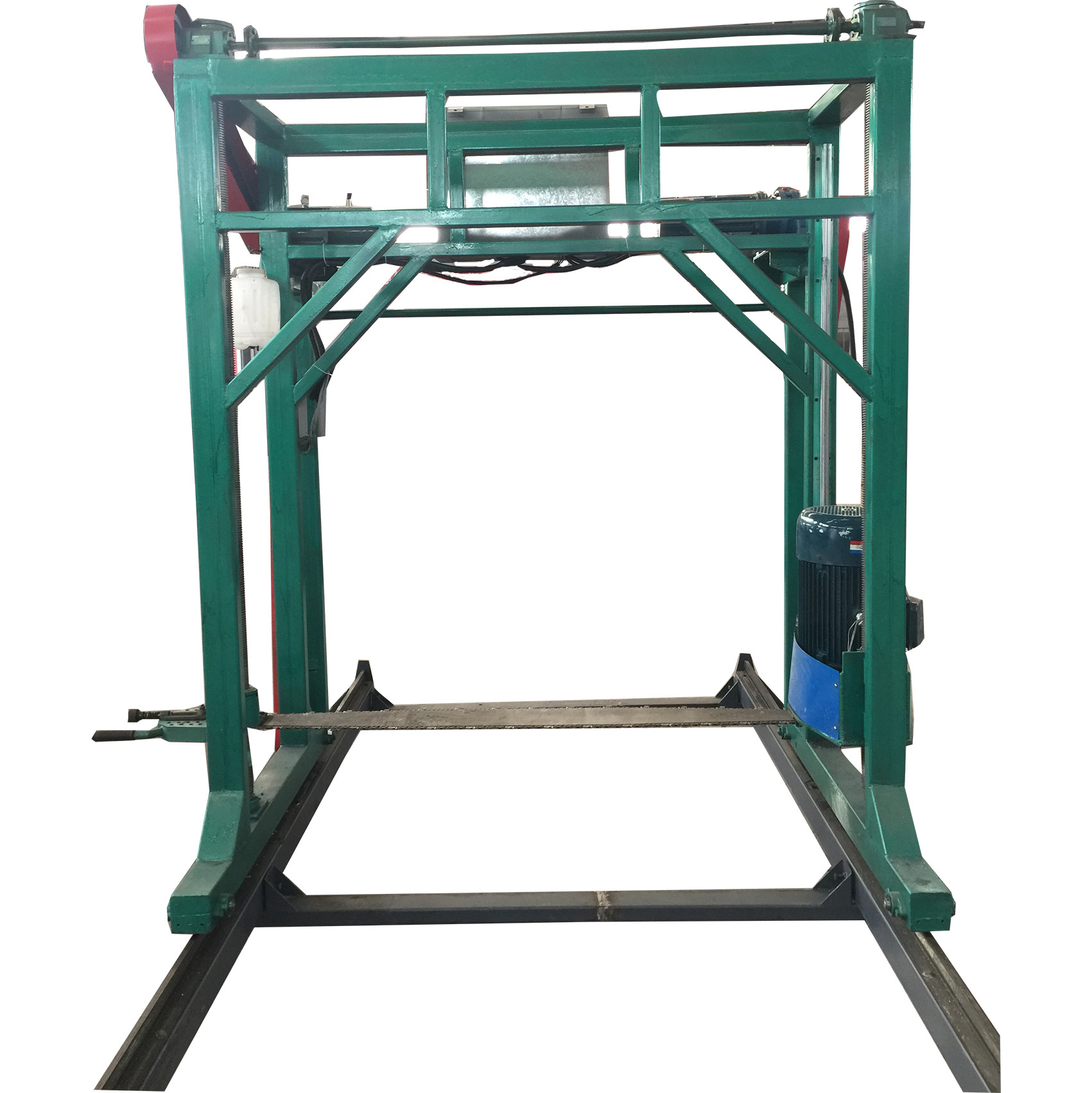

1. Easy Installation and disassemble.
2. Sawmill track can be extended
|
Specifications
|
BXLJ600 | DDLJ600 | DDLJ900 | DDLJ1500 |
|
Guide bar length
|
18-36inch | 36inch | 42 inch | 1900mm |
|
Cut length (mm)
|
3600 | 3500 | 3500 | 4500 |
|
Cut max. diameter(mm)
|
600 | 600 | 900 | 1500 |
|
Electric motor(kw)
|
chainsaw | 5.5 | 7.5 | 15 |
|
Saw head up/down
|
manual | manual | manual | electric |
|
Saw head walking
|
manual | manual | manual | frequency variable |
|
Track length(mm)
|
4800 | 4800 | 5000 | 6000 |
|
Total weight(kg)
|
120 | 120 | 250 |
1000
|
|
Packing size(mm)
|
1700*1200*1400 | 1700*1200*1400 | 2500*1300*1600 | 3300*1700*2200 |

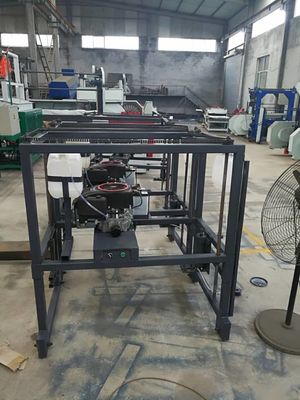

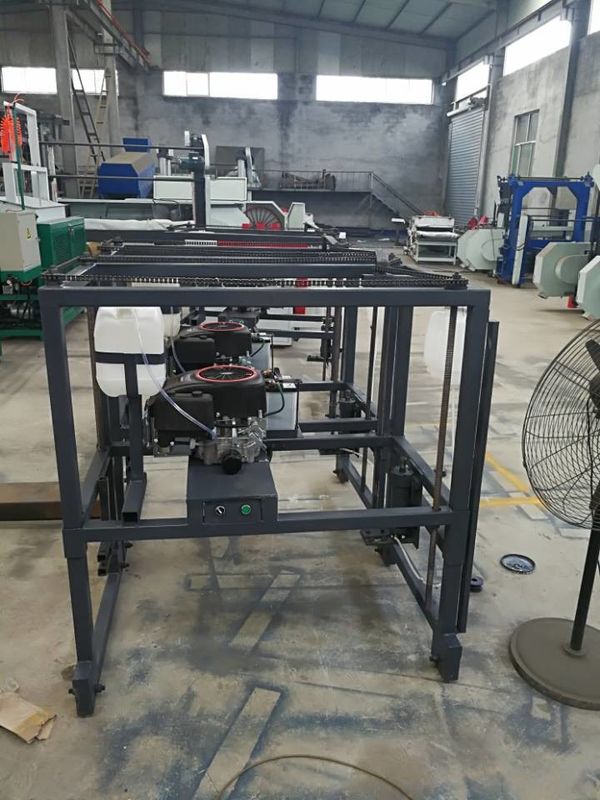

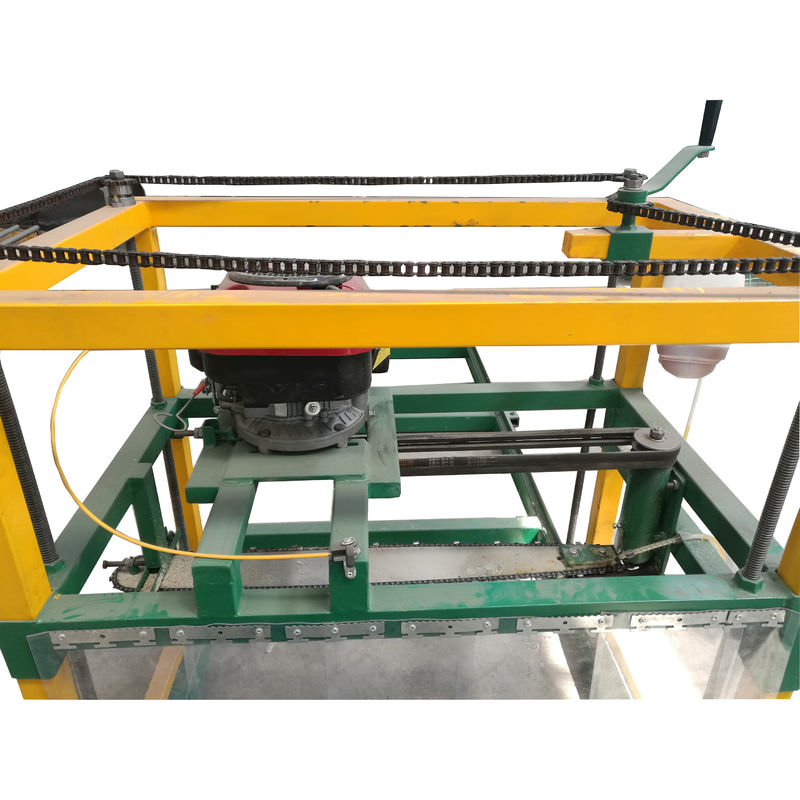

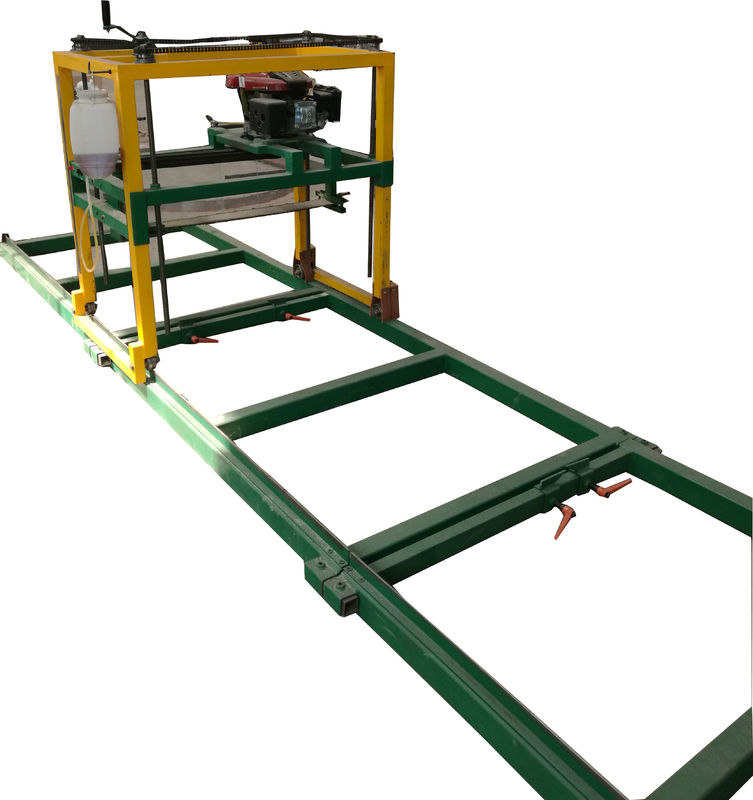

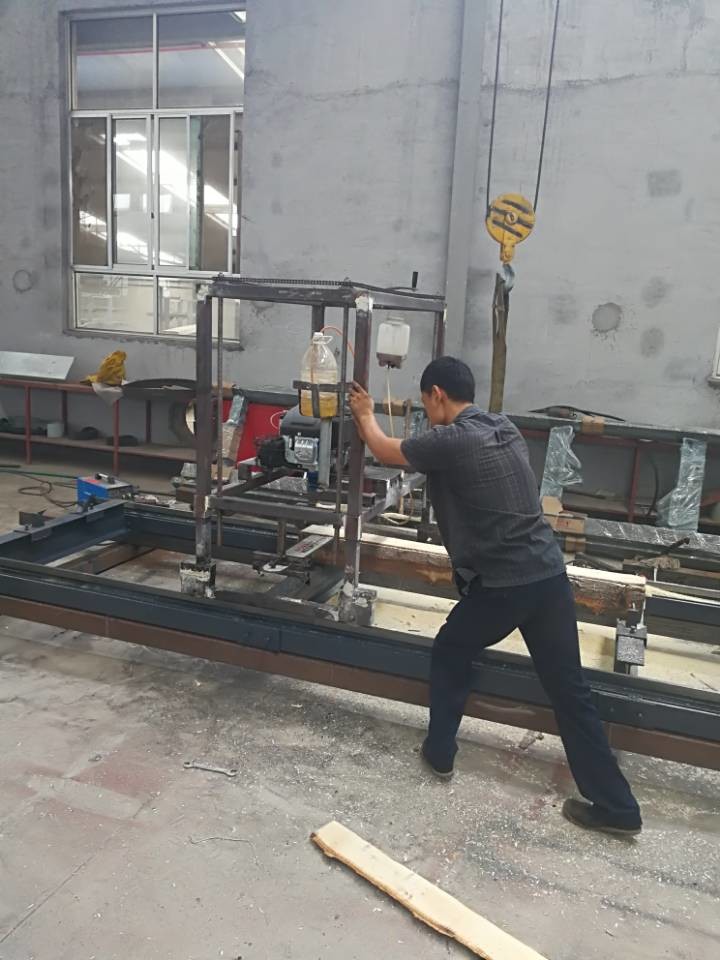

1. Easy usage and installation.
2. Track can be extended .
|
Specifications |
QYLJ600 | QYLJ900 | QYLJ1500 |
|
Guide bar length |
36inch | 42inch | 1900mm |
|
Cut length (mm) |
3500 | 3500 | 4500 |
|
Cut max. diameter(mm) |
600 | 900 | 1500 |
|
Gasoline Engine |
12HP | 16HP | 27HP |
|
Saw head up/down |
manual | manual | manual |
|
Saw head walking |
manual | manual | manual |
|
Track length(mm) |
4800 | 5000 | 6000 |
|
Total weight(kg) |
220 | 300 | 900 |
| Packing size(mm) | 1700*1300*1500 | 2500*1300*1600 | 3300*1700*2200 |
