Twin Circular Blades Boards Edgers Electric Edger Saw,Twin Circular Blades wood Board Edgers

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	EG600A, EG800, EG1000

Minimum Order Quantity:	1 SET
Price:	US $2,900 - 9,000 / Set
Packaging Details:	export iron frame packing
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100 Sets/month

Get Best Price Contact Now

Detail Information

Name:	Twin Circular Blades Boards Edgers Electric Edger Saw	Condition:	New
Power(W):	15kw/3phase	Max. Sawing Width:	600mm To 1000mm
Max. Sawing Thickness:	70mm	Weight:	500KG
Feeding Speed:	20-25m/min	Warranty:	1 Year

Product Description

Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

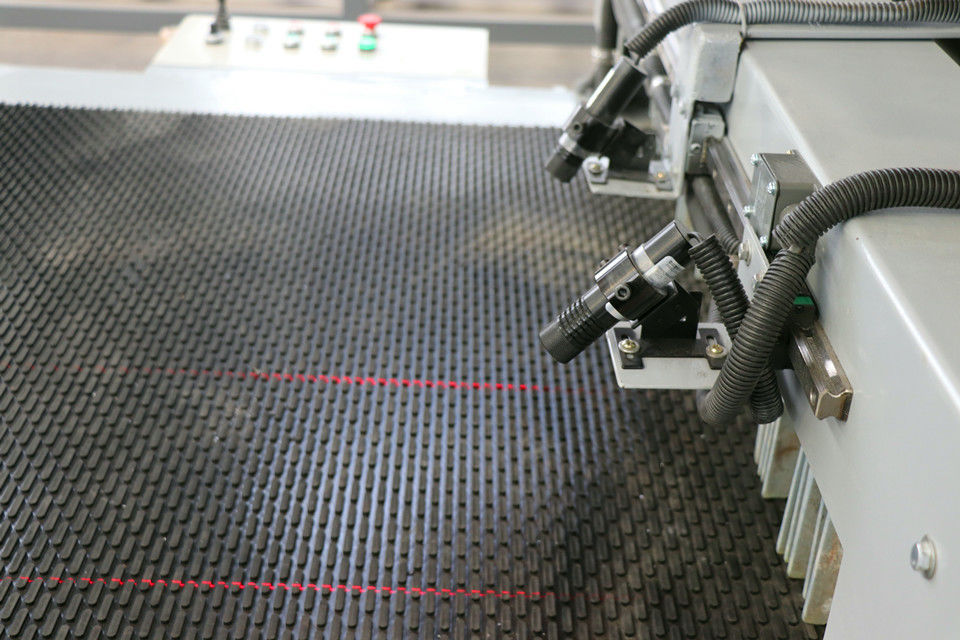

4. The saw blade moves with infrared light and moves at the same time .

5. Feeding: frequency speed adjustable auto feeding

6. Max. sawing width: 600mm or as customer needs

7. Max. sawing thickness : 70mm

Technical data :

Technical parameters	EG600A
cutting max. width	600mm
cutting min. width	50mm
sawn max. thickness	70mm
sawn min. thickness	10mm
Blade	2*350mm
Feeding method	Automatic feeding conveyor
Feed Rate	20-25m/ minute
Power	15KW electric motor
Positioning	Infrared line
Machine weight	800KG
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable

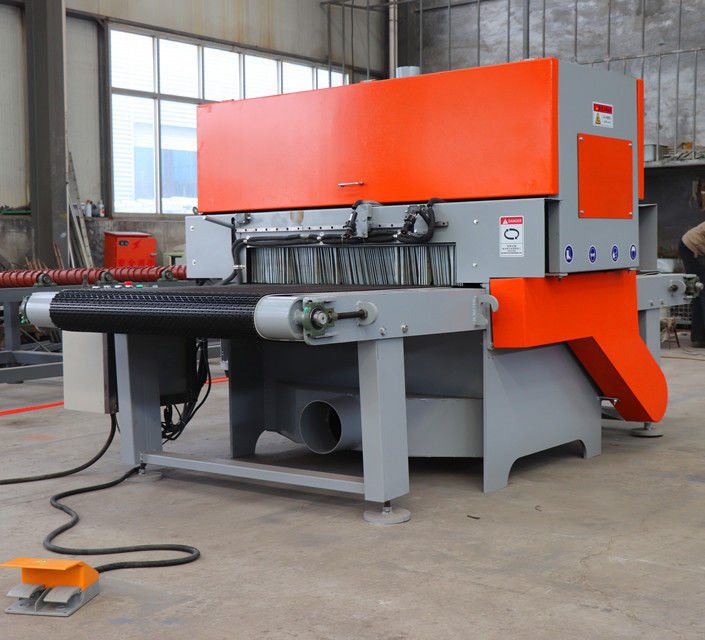

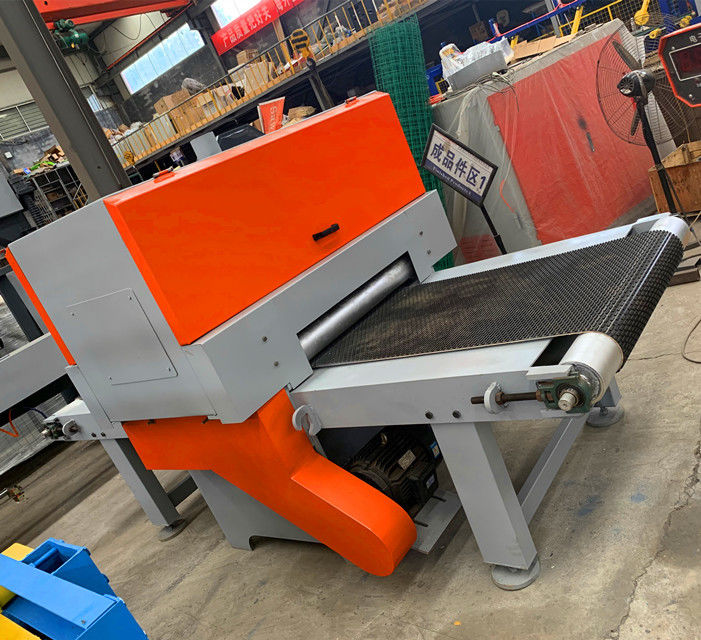

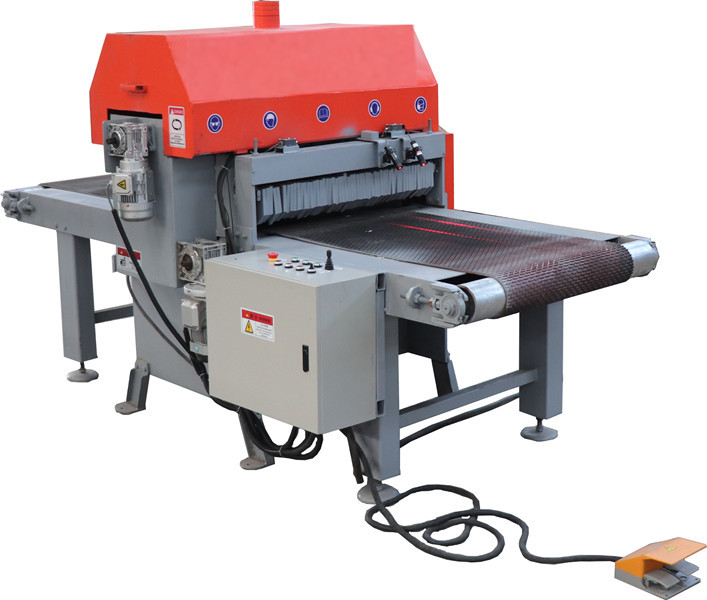

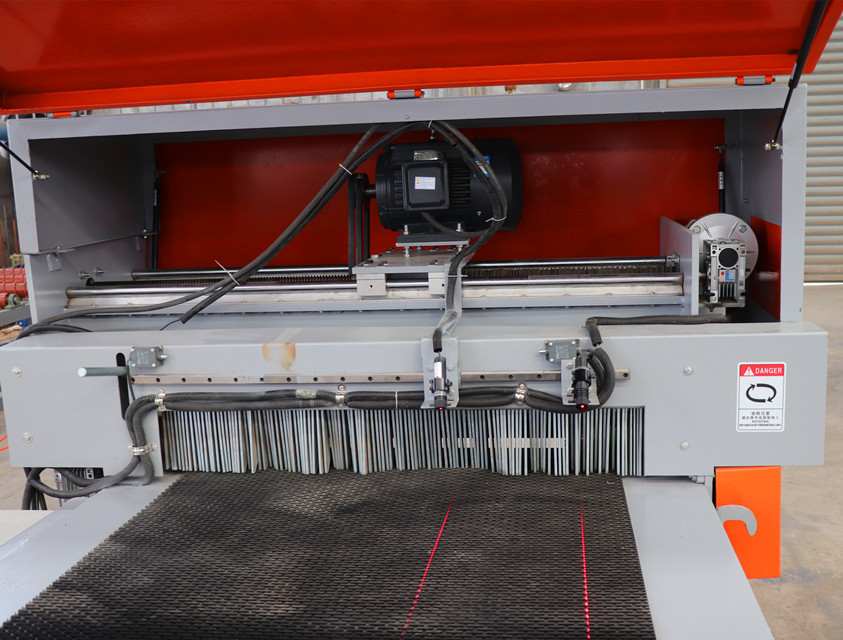

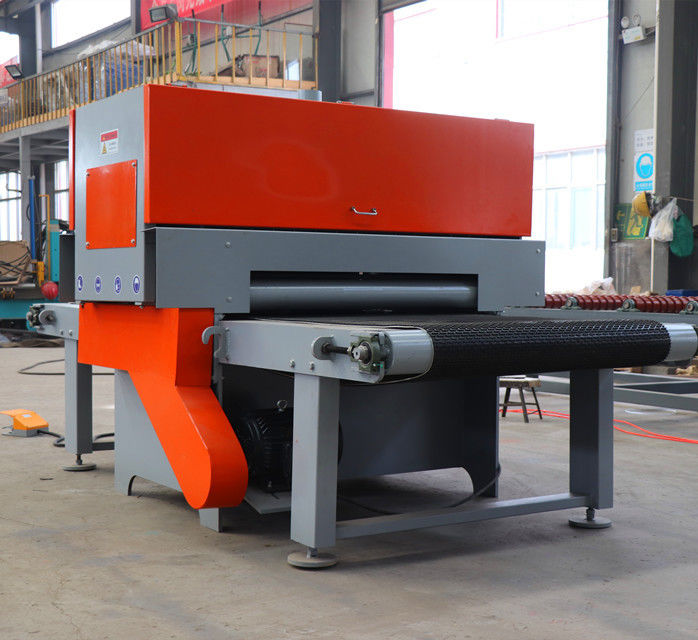

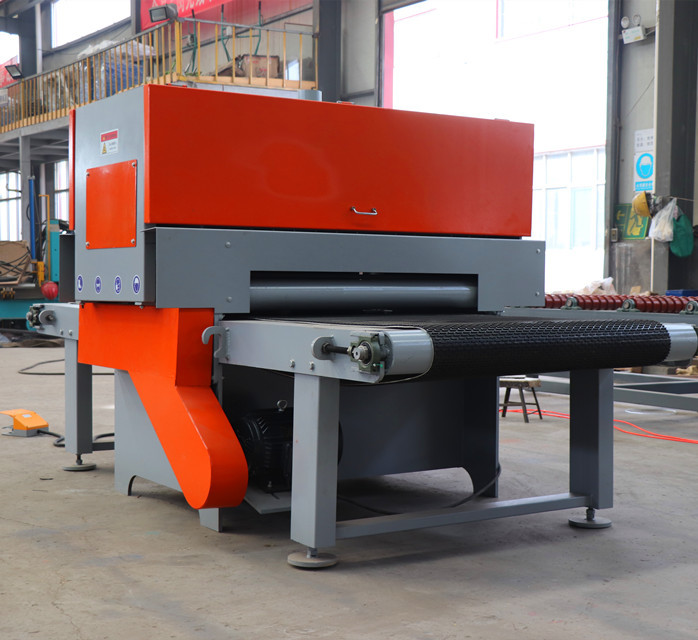

Photos:

Twin Circular Blades Boards Edgers Electric Edger Saw,Twin Circular Blades wood Board Edgers 0

Twin Circular Blades Boards Edgers Electric Edger Saw,Twin Circular Blades wood Board Edgers 1

Twin Circular Blades Boards Edgers Electric Edger Saw,Twin Circular Blades wood Board Edgers
