| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | EG700A, EG700B, etc |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $5,000 - 9,000 / Set |
| Packaging Details: | export iron frame packing |
| Delivery Time: | within 25 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 100 Sets/month |
| Type: | Circular Rip Saw | Condition: | New |
|---|---|---|---|
| Use: | Woodworking | Style: | Horizontal |
| Voltage: | 380V/50HZ/3phase Or As Customer Needs | Power(W): | 11kw |
| Weight: | 500KG | Warranty: | 1 Year |

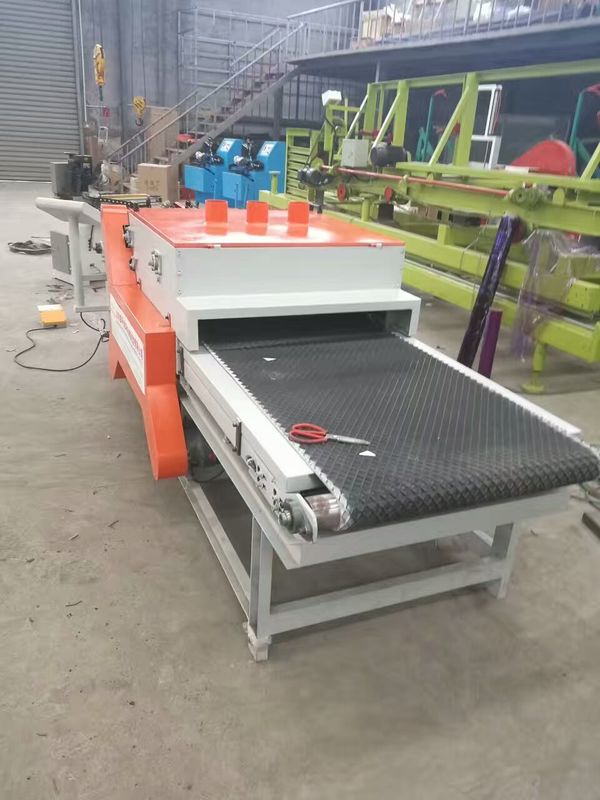

Twin Blades Wood Board Edger/border cutting machine

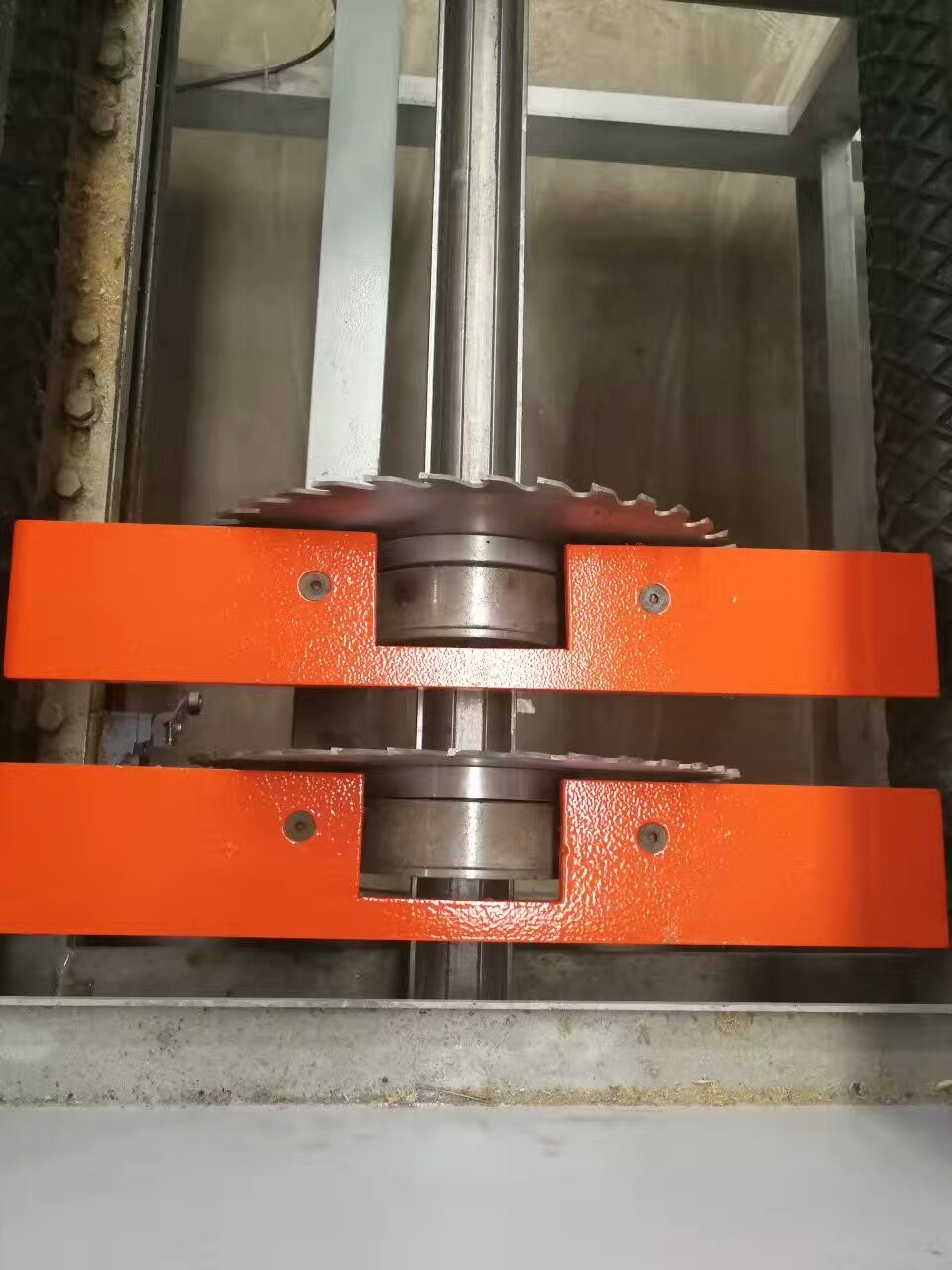

1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
|
Technical parameters
|
EG700A | EG700B |
|
cutting max. width
|
700mm | 700mm |
|
cutting min. width
|
50mm | 50mm |
|
sawn max. thickness
|
100mm | 100mm |
|
sawn min. thickness
|
10mm | 10mm |
|
Blade
|
2*300mm | 2*300mm |
|
Feeding method
|
Automatic | Automatic |
|
Feed Rate
|
20-25m/ minute | 20-25m/ minute |
|
Power
|
11KW electric motor | 22HP V-twin Diesel Engine |
|
Machine weight
|
500KG | 450KG |
