Name: Precision Horizontal Resaw Industrial Sawmill Equipment For Wood Cut Thin Slices
Brand: Weifang Jiuyi Information technology co., LTD
SKU: SHJM800, SHJM400, SHJM650, SHJM1000
Price: 9.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Precision Resaw Bandsaw

Style: Horizontal

Main Power(W): 15kw To 30kw

Max. Sawing Width: 1000mm

Max. Sawing Height: 110mm

Min.sawn Thickness: 2mm

Feeding: Frequency Speed Adjustable

Board Press: Hydraulic Press Roller

Voltage: 380v OR As Customer Needs

Feeding Speed: 0.1 To 30meter/min

After-sales Service: Video Technical Support, Spare Parts

Highlight:

Horizontal Resaw Industrial Sawmill Equipment

1000mm Horizontal Resaw

1000mm Industrial Sawmill Equipment

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: SHJM800, SHJM400, SHJM650, SHJM1000

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 100 Sets/month

Gallery

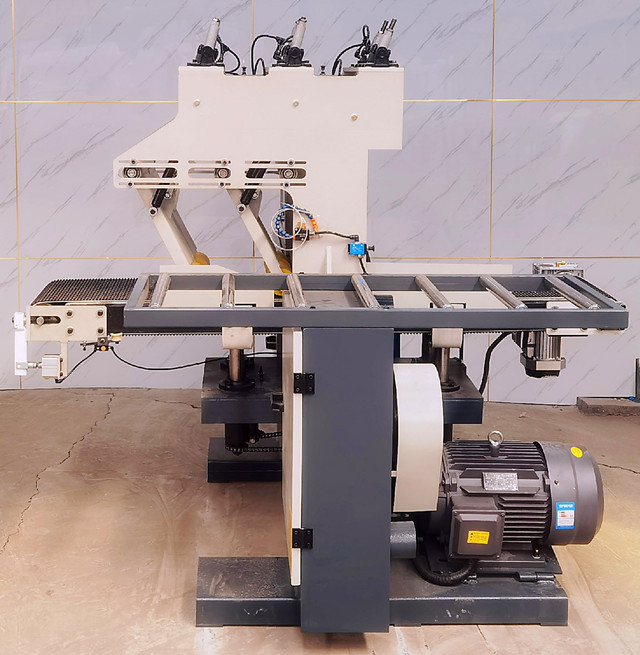

Precision Horizontal Resaw Industrial Sawmill Equipment For Wood Cut Thin Slices

Product Description

Precision Horizontal Band Saw Mill Wood Cut Thin Slices Machine

Horizontal re-saw band sawmills

1. No need installation, easy working with high efficienty, high precision.

2. Used to saw wood board/lumber into thin lumber/timber.

3. Re-saw working.

Model	SHJM400	SHJM650	SHJM800
Saw Wheel Diameter	600MM	600MM	700MM
Max Sawing Wood Width	400MM	650MM	800MM
Max Sawing Wood Height	110 MM
Min Sawing Thickness	2 MM
Feeding Speed	0.1-30 Meters/Minute
Motor Power	15KW	18.5KW	22KW
Feeding Motor	0.75KW	0.75KW	1.5KW
Band Saw Blade Length	4300MM	4900MM	5300MM
Machine Weight	1850KG	2550KG	2750KG

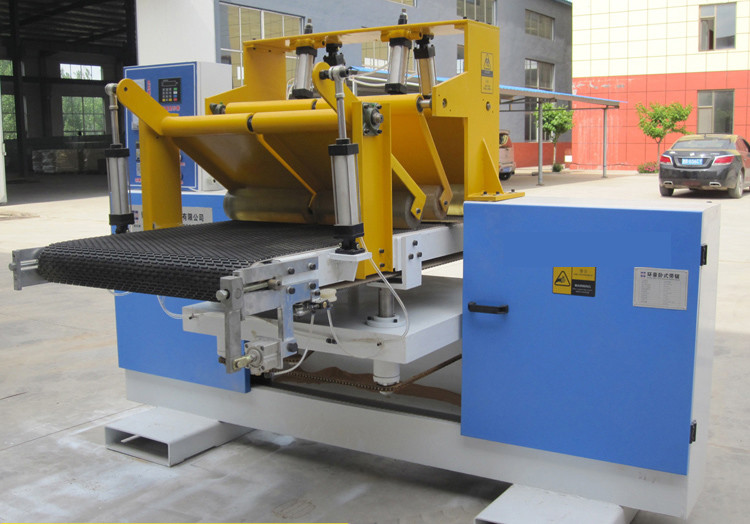

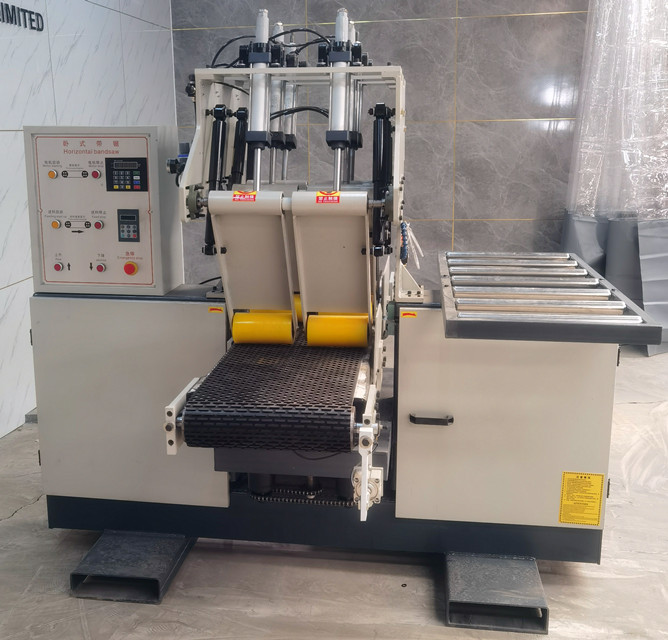

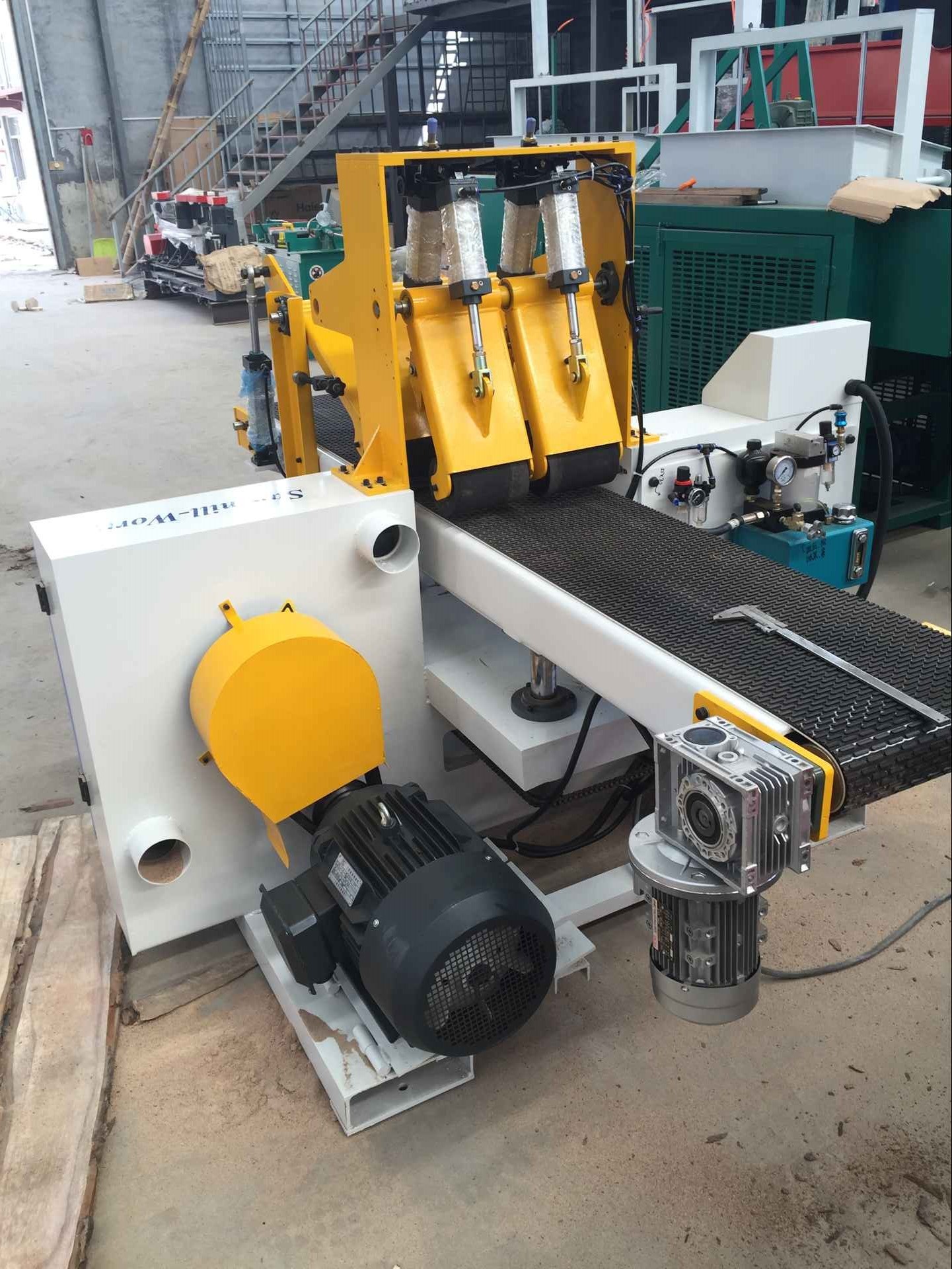

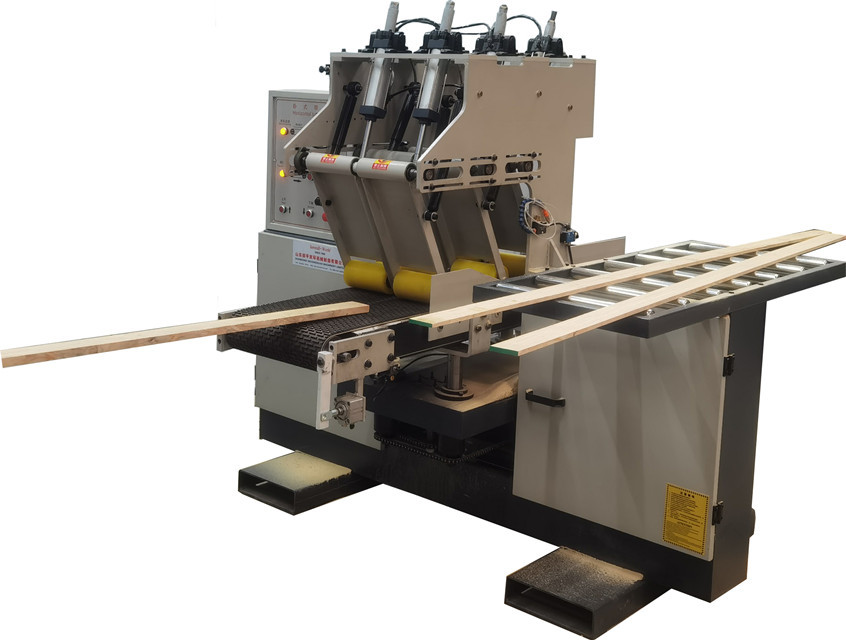

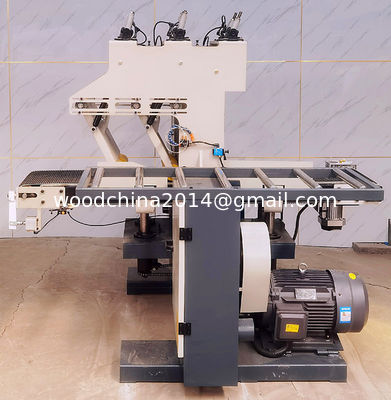

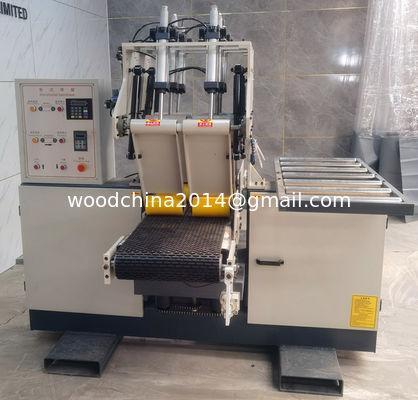

Detailed Image

Precision Horizontal Resaw Industrial Sawmill Equipment For Wood Cut Thin Slices 0
Related Saw Machine

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment
Precision Horizontal Resaw Industrial Sawmill Equipment For Wood Cut Thin Slices 3
Optional - board returning conveyor

5heads reaw equipment

4heads reaw equipment
