Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: DT300-1, DT300-2, DT300-3, DT300-4, DT300-5,DT300-6
Minimum Order Quantity: 1 SET
Price: US $10,200-37,700 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Detail Information
Name: Multiple Head Horizontal Band Resaw Machine Condition: New
Type: Band Saw Voltage: 380v,50HZ,3phase Or As Customer Needs
Sawing Wood Width: 300mm Sawing Wood Thickness: 260mm
Power(W): 11kw X 2sets, 11kwx3sets, 11kw X5sets, Etc Sawn Thickness Setting Mode: Touching Screen Digital Control
Application: Wood Cutting Saw Wheel Diameter: 700MM
Keyword: Wood Cutting Band Saw,Horizontal Band Saw Warranty: 1 Year
After-sales Service Provided: Online Support,Video Technical Support,commissioning And Training
Highlight:

Rosewood Band Sawmill

,

Multiple Head Horizontal Resaw

,

Rosewood Horizontal Resaw Machine


Product Description

Multi Head Band Sawmill For Sale, Horizontal rosewood Cutting BandSaw Multiple Head Resaws

Multi Head Horizontal Band Sawmill

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

Technical Specifications :



Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
Sawing width300mm300mm300mm300mm300mm
Minimum wood thickness2mm2mm2mm2mm2mm
Maximum wood height260mm260mm260mm260mm260mm
Band wheel diameter700mm700mm700mm700mm700mm
Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
Saw machine length3500mm4500mm5800mm8500mm11000
Weight900kg1500kg2200kg3500kg5000kg
FeedingVariable frequency speed adjustable conveyor
OperationTouching screen auto setworks for sawn thickness

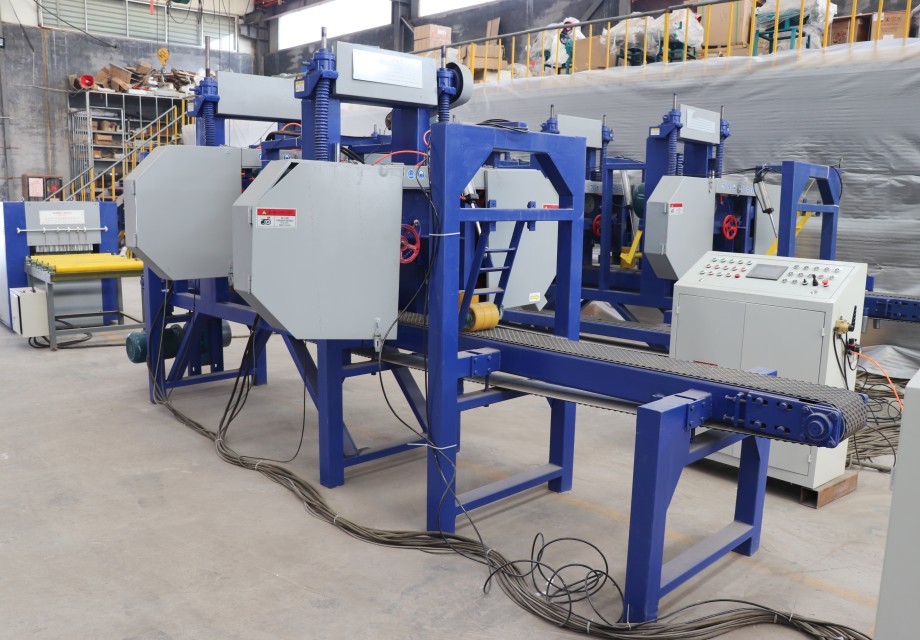

Detailed Image -6heads reaw equipment
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 0

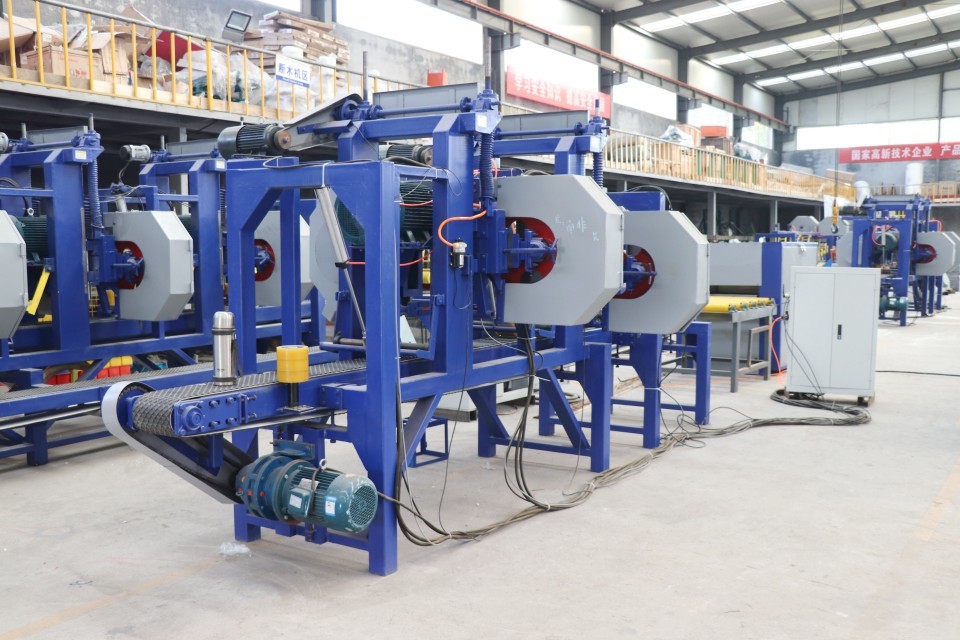

Optional - board returning conveyor
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 1

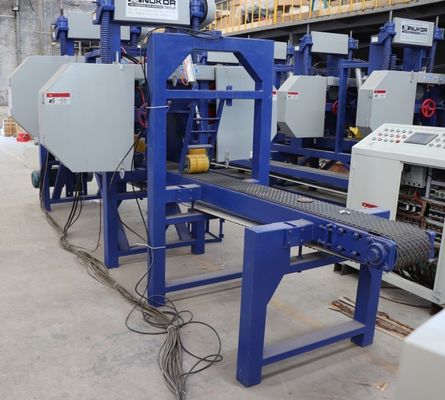

5heads reaw equipment
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 2

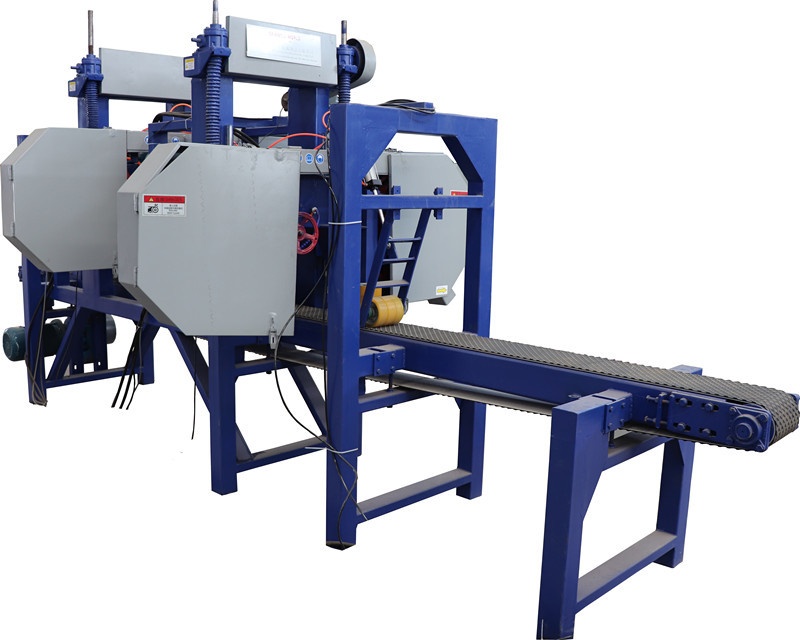

4heads reaw equipment

Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 3

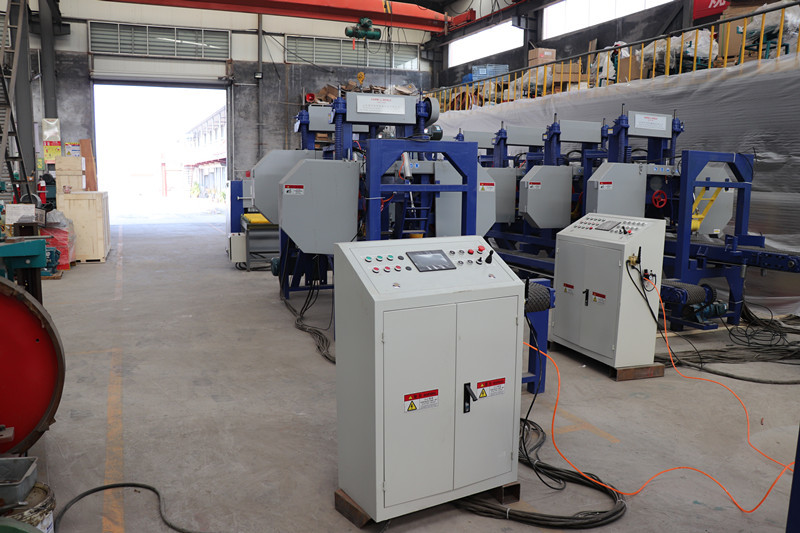

Container loading
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 4
Optional - max. sawing width upto 640mm
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 5
Related Saw Machine

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

Technical Specifications:

Technical dataSLS350SLS500
Maximum log diameter350mm500mm
Minimum log diameter100mm100mm
Wood length1000 to 3000mm1000 to 3000mm
Feed speed9-25m/min (inverter)9-25m/min (inverter)
Conveyor length7000mm3500mm x 2
Band wheel diameter700mm760mm
Width of saw blade50-80mm50-100mm
Length of saw blade48505200mm
Thickness of saw blade0.9mm0.9mm
Saw motor2x18.5kw2x22kw
Feed motor5.5kw4kw x 2
Sawn sizing controlTouching screen auto setworksTouching screen auto setworks


Photos
Rosewood Band Sawmill Multiple Head Horizontal Resaw Machine 6
