5 Heads Resaws Multiple Head Wood Band Saw Machine with adjustable conveyor

Basic Information

Place of Origin:	shandong province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DT300-1,DT300-2,DT300-3,DT300-5,DT300-6

Minimum Order Quantity:	1 SET
Price:	US $14,200-37,700 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	500 Sets/Year

Get Best Price Contact Now

Detail Information

Name:	Multiple Head Horizontal Band Resaw Machine	Condition:	New
Type:	Band Saw	Use:	Woodworking
Saw Wheel Diameter:	700MM	Max. Sawing Wood Width:	300mm
Max. Sawing Height:	260mm	Motor Power:	11kw X 2sets, 11kwx3sets, 11kw X5sets, Etc
Sawn Thickness Setting Mode:	PLC Touching Screen Auto Setworks	Feeding:	Frequency Variable Conveyor Auto Feeding
Warranty:	12 Months	After-sales Service Provided:	Online Support,Video Technical Support,commissioning And Training
Highlight:	5 heads wood band saw machine , adjustable conveyor band saw , industrial resaw wood cutting machine

Product Description

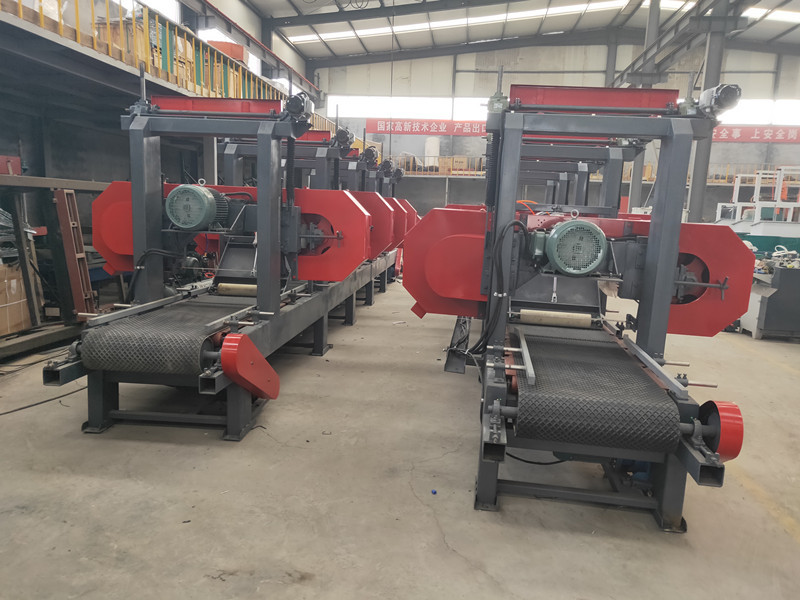

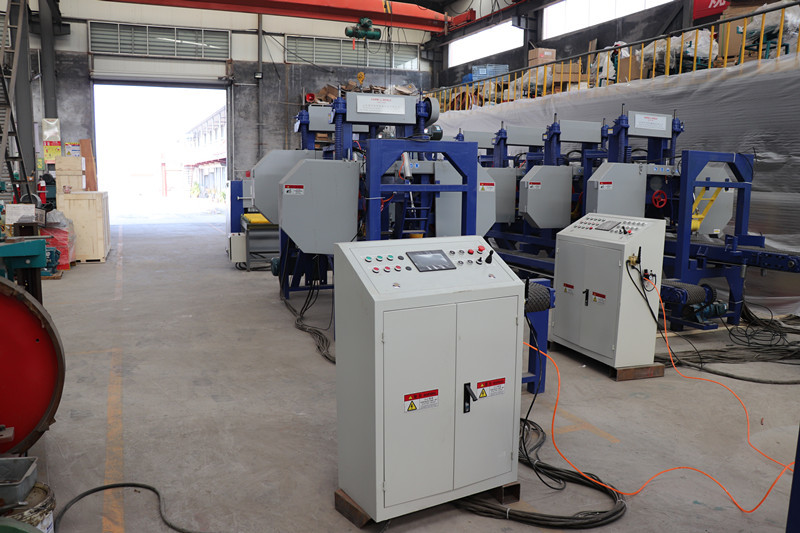

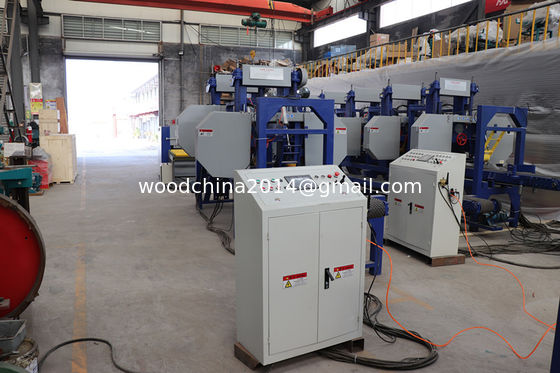

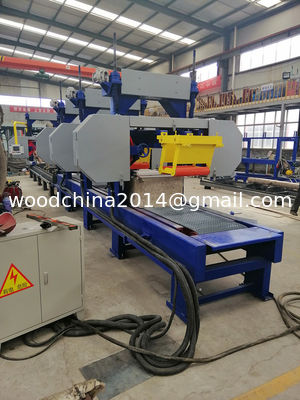

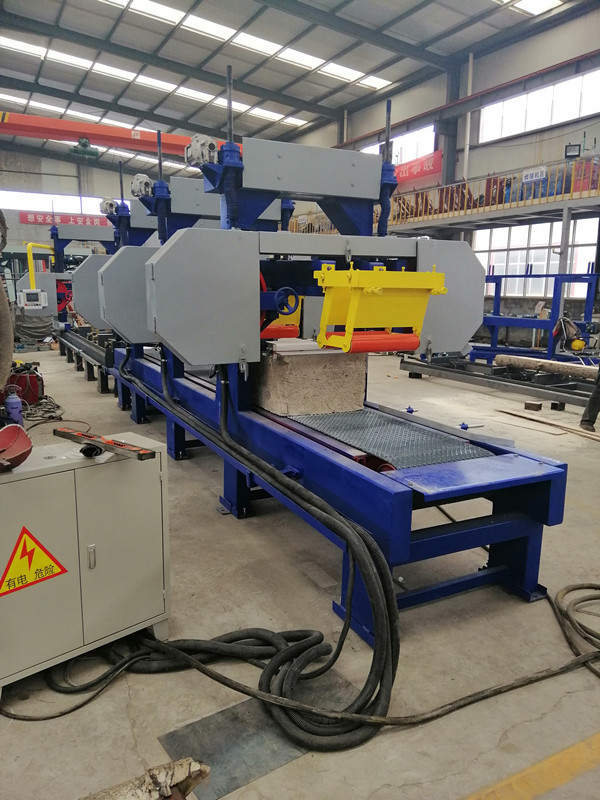

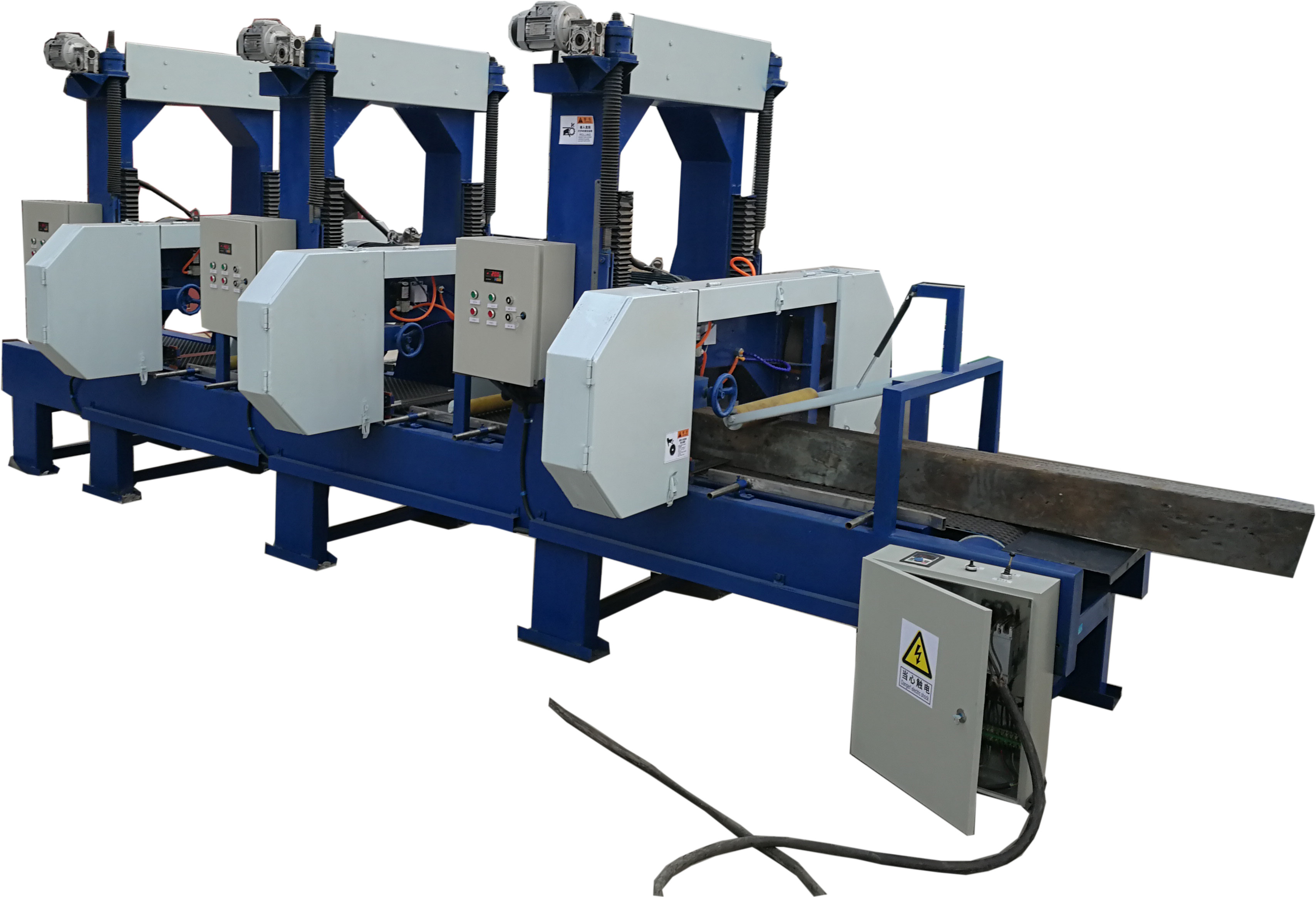

Multiple Heads Horizontal Resaw Band Saws

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

Main Features:

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness
