New Design Wooden Tray Nailing Machine Wood Pallet Making Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | AS1250- 3 ,AS1250- 4 |
| Minimum Order Quantity | 1 SET |
| Price | US $19,800 - 21,500 / Set |
| Packaging Details | export packing of wood pallet nailing machine |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Pallet Nailing Machine | Application | Pallet Nailing Machine |
|---|---|---|---|
| Voltage | 380V, 3phase/50hz Or As Customer Needs | Power(W) | 1.5KW |
| Nailing Range | 800-1250mm | Number Of Coil Nail Guns | 3pcs Or 4pcs |
| Palletizer Equipment | With It ,automatic Working | Warranty | One Year |
| Weight | 2000KG | Production Prodedure | Manual Feeding/automatic Nailing/automatic Palletizing |
Product Description

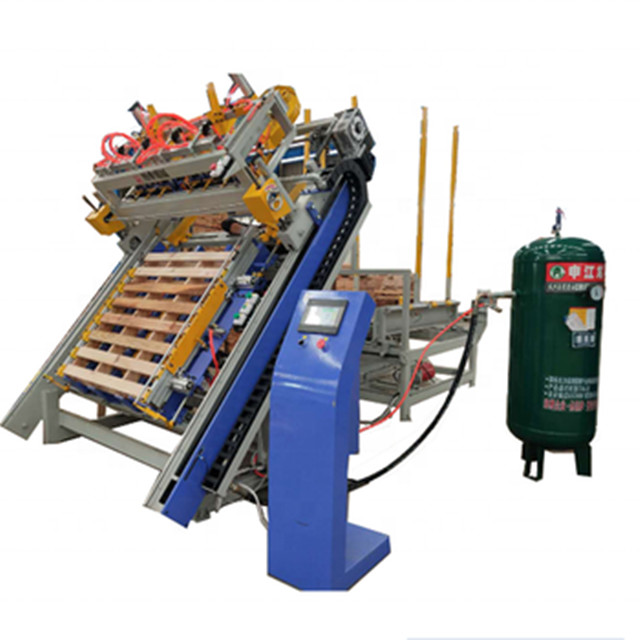

Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data
| Model | AS 1250- 3 nail guns type | AS1250- 4 nail guns type |
| Nailing Range | 800—1250mm | 800—1250mm |
| Operation ,Automatic | PLC touching screen | PLC touching screen |
| Nail capacity | 3000 nails/large coil nails | 3000 nails/large coil nails |
| Number of Coil Nail Guns | 3 | 4 |
| Air pressure | 0.8MPA | 0.8MPA |
| Receiving | Automatic palletizing (pneumatic) | Automatic palletizing (pneumatic) |
| Production prodedure | Manual feeding/automatic nailing/automatic palletizing | |
| Pallet type | American tray , European tray | American tray, European tray |
| Wight | 1000kg | 1200kg |
| Palletizer equipment parameters | ||
| Processing size | 800-1250mm pallet nailing machine supporting | |
| Air compressure | 0.8MPA | |
| working speed | 4-8 seconds/each | |
| Motor power | 1.5KW/3phase | |
| Controlling | Integrated supporting of pallet nailing machine production line | |
| Production mode | Automatic feeding of pallet nailing machine | |
