Home /Products/Industrial Sawmill Equipment/Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line

Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line

1 unit
MOQ
US $35,000 - 49,000 / Unit
Price
Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Full Automatic Sawmill Production Line
Function: Sawing Logs Into Small Wood Boards/timber, Etc
Max. Sawing Log Diameter: 500mm, 300mm, Etc
Max.sawing Log Length: 3meter To 6meters
Production Capacity: 150m3/day
Condition: New
Operation: Automatic
Optional Part: Wood Chipper Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLSP400, SLS500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 30 days
Payment Terms: T/T or L/C at sight
Supply Ability: 5 Unit/Units per Month
Product Description

Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line 0

Full Automatic Vertical Log Cutting Band Saw Production Line

  • sawing log max. diameter : 500mm
  • sawing log max. length : 3meters to 6meters
  • Operation: automatic
  • capacity: 150m3/day

Technical Specifications :

Central Console
Overall size 3000*1500mm
Display function LCD Monitor
Operation Distant control
Wood loading rack
Length of loading rack 4000mm
Total width 2500mm
Transmission method Inverter
Motor 3KW
loading method Pneumatic
Feeding type Chain feeding
Wood automatic tumbling guide belt
Max. length of tumbling wood 3m
Transmission method Inverter
Total motor power 6KW
Control Distant control
SLS350 Twin Bandsaw for logs No.1
Max. sawing log diameter 350mm
Min.sawing log diametr 150mm
Log length 800-3000mm
Saw wheel diameter 700mm
Sawing speed 9-25m/min
Main motor power 18.5KW *2
Sizing operation CNC Touching screen
Automatic roll adjustment centering roller frame
Frame length 6000mm
Width 1000mm
Motor 5.5kw
Log centering operation Pneumatic
SLSP400 Twin Bandsaw for logs No.2
Max. sawing log diameter 400mm
Min. sawing log diameter 150mm
Log length 800-3000mm
Saw wheel diameter 700mm
Sawing speed frequency
Motor power 18.5KW *2
Sizing operation CNC touching screen
Slab slope conveyor
Conveyor length 3000mm
Width 2500mm
Motor 2.2KW
DT300-5 Multi Heads Band Saw-5heads
Max. sawing width 300mm
Max. sawing thickness 300mm
Main motor 15kw*5
BPJ300 Slabs Cutting Saw
Max. sawing width 300mm
Max. sawing thickness 200mm
Motor power 7.5KW*2
CB600 Wood Edger
Max. sawing width 600mm
Max. sawing thickness 80mm
Blades No. 1-5pcs
Motor power 22kw

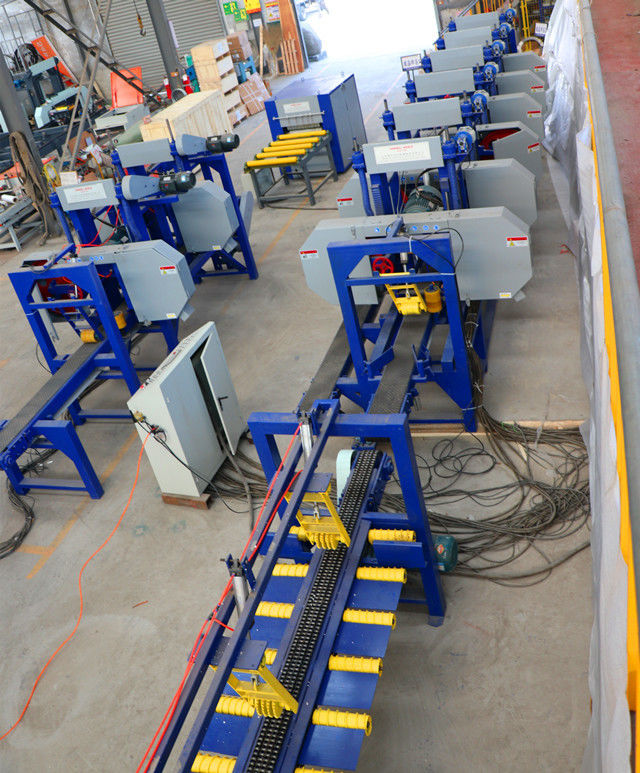

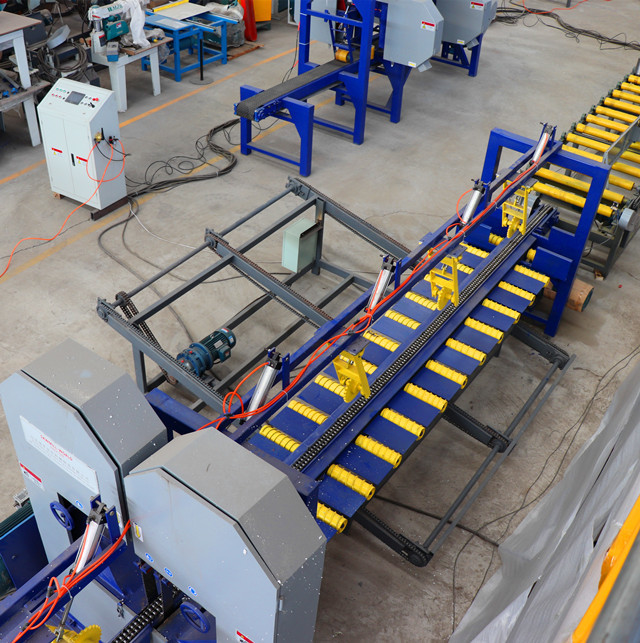

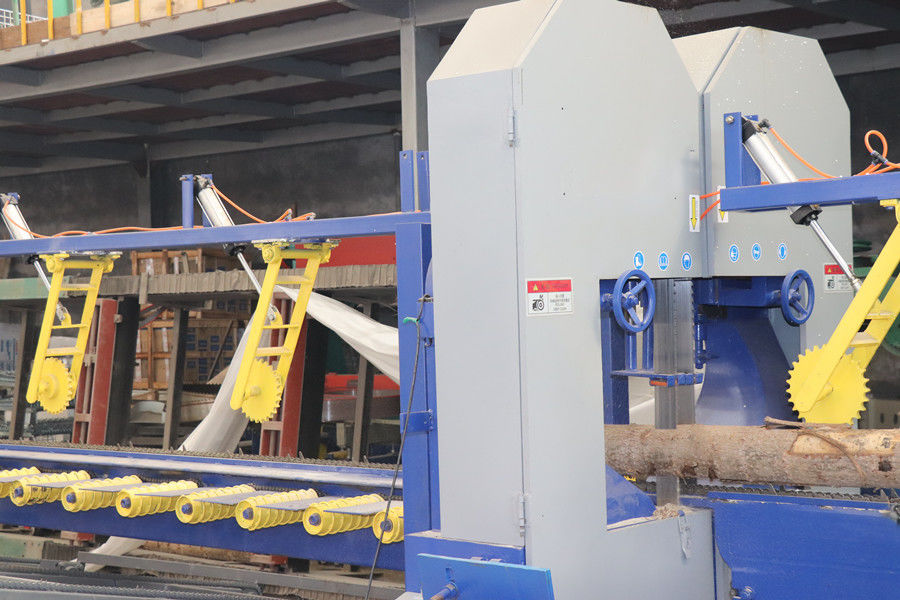

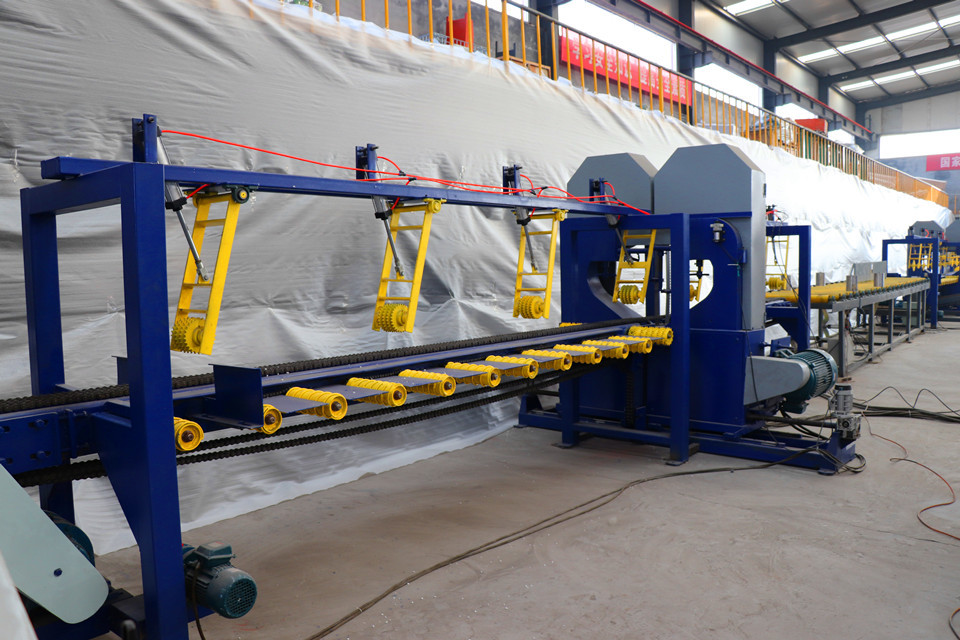

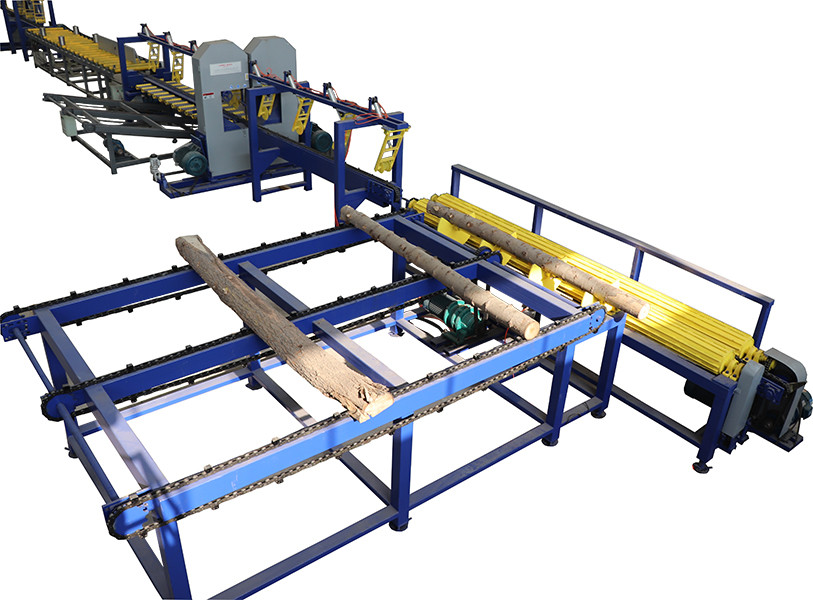

Photos

Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line 1

Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line 2

Full Automatic Vertical Log Cutting Band Saw Production Line,Twin Bandsaw Sawn Timber Sawmill Line 3
