Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number DT300-1,DT300-2,DT300-3,DT300-5,DT300-6
Minimum Order Quantity 1 SET
Price US $14,200-37,700 / Set
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight
Supply Ability 500 Sets/Year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multiple Head Horizontal Band Resaw Machine Max. Sawing Width 300mm Or As Customer Needs
Sawing Height 2mm To 300mm Voltage 380V/50HZ/3PH Or As Customer Needs
Saw Wheel Diameter 700MM Bandsaw Blade Width 50mm To 80mm
Motor Power 15kw X 2set, 3sets, 5sets... Feeding Inverter
Sawn Sizes Setting PLC Touching Screen Auto Setworks Application Wood Hardwood / Softwood
Warranty 1 Year Keyword Wood Cutting Band Saw,Wood Table Saw Machine
High Light

15KW Horizontal Band Resaw

,

15KW Industrial Sawmill Equipment

,

Resaw Industrial Sawmill Equipment

Leave a Message
Product Description

Multiple Heads Horizontal Wood Sawing Band Resaw Machine with auto conveyor belt

Multiple Heads Horizontal Resaw Band Saws

  • This machine is easy-operated,high efficiency and easy-installed.
  • The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
  • Main Features:

1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.

  • Technical data
Technical specificationsDT300-1DT300-2DT300-3DT300-5DT300-6
Sawing width300mm300mm300mm300mm300mm
Minimum wood thickness2mm2mm2mm2mm2mm
Maximum wood height260mm260mm260mm260mm260mm
Band wheel diameter700mm700mm700mm700mm700mm
Saw motor15kw15kw x 215kw x 315kw x 515kw x 6
Saw machine length3500mm4500mm5800mm8500mm11000
Weight900kg1500kg2200kg3500kg5000kg
FeedingVariable frequency speed adjustable conveyor
OperationTouching screen auto setworks for sawn thickness

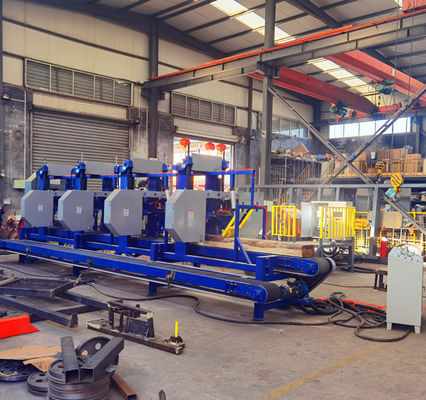

Detailed Image - 6heads band resaw with board returning conveyor
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 0
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 1
3heads band resaw
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 2
3heads band resaw -used to saw foam /cement , etc

Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 3

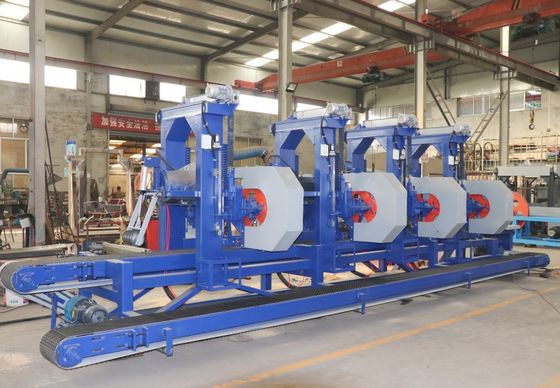

4heads band resaw with board returning conveyor
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 4
6heads band resaw
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 5
Container loading
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 6
Related Saw Machine

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed

  • Technical Specifications:
Technical dataSLS350SLS500
Maximum log diameter350mm500mm
Minimum log diameter100mm100mm
Wood length1000 to 3000mm1000 to 3000mm
Feed speed9-25m/min (inverter)9-25m/min (inverter)
Conveyor length7000mm3500mm x 2
Band wheel diameter700mm760mm
Width of saw blade50-80mm50-100mm
Length of saw blade48505200mm
Thickness of saw blade0.9mm0.9mm
Saw motor2x18.5kw2x22kw
Feed motor5.5kw4kw x 2
Sawn sizing controlTouching screen auto setworksTouching screen auto setworks


Photos
Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 7Horizontal Band Resaw Industrial Sawmill Equipment With Multiple Heads 8
