High-throughput Twin Vertical Saw for Sawing 20" Diameter Log with 4" Band Blade
TWIN BANDSAW FOR LOG EDGES CUTTING
Designed to receive logs and make two vertical cuts removing a slab from either side of the log.
· Ideal to cut pine, eucalyptus, and teak.
· High-precision cutting.
· Laterally-supported chain.
· High-production continuous feed system.
· Produces up to 4,000 m³ per month.
· Highly efficient use of wood, with the finest cut on the market.
· Motorization and control panel included.
· Automatic feed
Technical Specifications:
| Technical data | SLS350 | SLS500 |
| Maximum log diameter | 350mm | 500mm |
| Minimum log diameter | 100mm | 100mm |
| Wood length | 1000 to 3000mm | 1000 to 3000mm |
| Feed speed | 9-25m/min (inverter) | 9-25m/min (inverter) |
| Conveyor length | 7000mm | 3500mm x 2 |
| Band wheel diameter | 700mm | 760mm |
| Width of saw blade | 50-80mm | 50-100mm |
| Length of saw blade | 4850 | 5200mm |
| Thickness of saw blade | 0.9mm | 0.9mm |
| Saw motor | 2x18.5kw | 2x22kw |
| Feed motor | 5.5kw | 4kw x 2 |
| Sawn sizing control | Touching screen auto setworks | Touching screen auto setworks |

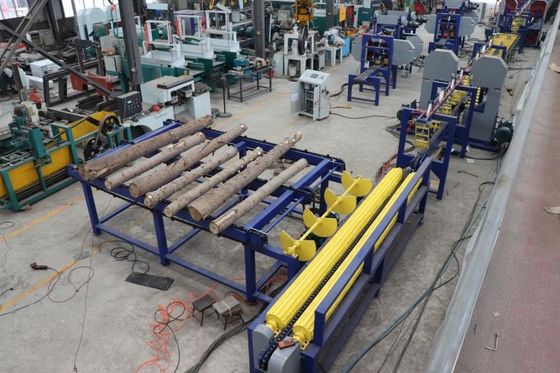

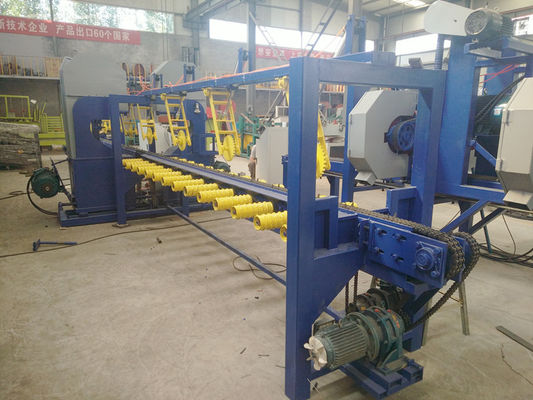

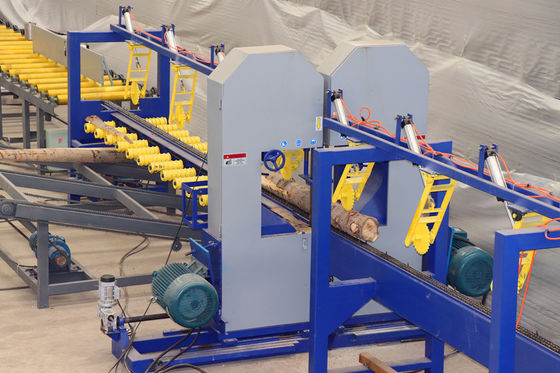

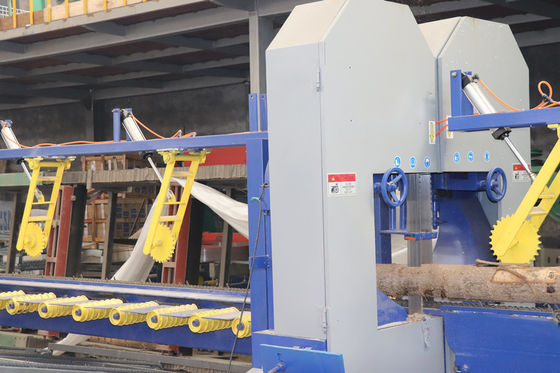

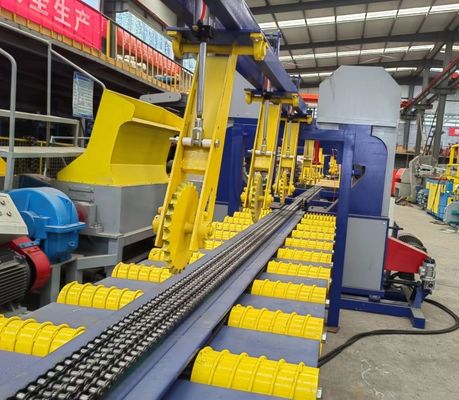

Photos
| SLSP400 Twin Bandsaw for log in plat bottom | ||
| sawing max. diameter | 400mm | |
| sawing min. diameter | 150mm | |
| sawing length | 800-3000mm | |
| saw wheel diameter | 700mm | |
| sawing speed | 9-25meters/min | |
| main motor power | 18.5kw x 2sets | |
| sawn size settting | CNC touching screen | |
Related Saw Machine
Wood Slabs Cutting Circular Saw
Optional - slabs slope conveyor
Optional - log loading deck
Optional -Roller conveyor
Specifications:
Model Specifications | BPJ200 | BPJ250 | BPJ300 |
| Cutting width (mm) | 200 | 250 | 300 |
| Cutting height | 100mm | 100mm | 150mm |
| Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 11kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter | 305(mm) | 355(mm) | 405(mm) |
| Weight (kg) | 480 | 600 | 750 |
| Overall size | 1450x1150x1400mm | 1450x1200x1400mm | 1750x1250x1550mm |
Photos :
