| Log Loading Deck | |||
| Log Length | 4000mm | ||
| Width | 2000mm | ||
| Feeding Speed | Variable Frequency Speed Adjustable | ||
| Motor | 5.5KW | ||
| Feeding Speed | frequency speed adjustable | ||
| Feeding | Pneumatic | ||
| Feeding Model | Chain | ||
|
|||
| Log Rotation And Feeding Belt | |||
| Log Length | 4000mm | ||
| Feeding Model | Variable Frequency Speed Adjustable | ||
| Feeding Speed |
frequency speed adjustable 3KW*2 |
||
| Motor Power | |||
| Control Model | Remote Control | ||
|
|||

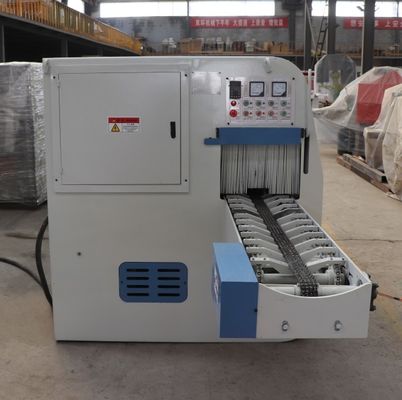

| SLS500 Muti blades ripsaw for logs | |||
| Max Cutting Log Diameter | 500mm | ||
| Min Cutting Log Diameter | 200mm | ||
| Log Length | 800-3000mm | ||
| Cutting Speed | 9-25m/min | ||
| Motor Power | 75KW *2 | ||
| Centralise Model | Touch Screen Digital Control | ||
|
|||
| Automatic Rotation Centralise Roller Conveyor | |||
| Conveyor Length | 6000mm | ||
| Conveyor Width | 1000mm | ||
| Motor Power | 2.2KW | ||
| Centralise Model | Pneumatic | ||
|
|||
| 200-400 Heavy duty Log Cutting Multiple Blades Sawmill | |||
| max. sawing width | 400mm | ||
| Max. sawing thickness | 200mm | ||
| sawing speed | 10-25m/min | ||
| Main Motor power | 45KW*2 | ||
| Feeding Motor | 2.2KW | ||
| Saw Blade Quantity | 2-10 pieces | ||
| Saw Blade Diameter | 355mm | ||
| Variable Frequency Speed Adjustable Feeding, | |||
| Axles Center Water Cooling System, | |||
|
|||
| Slab Slope Conveyor | |||
| Length | 3000mm | ||
| Width | 2500mm | ||
| Motor | 2.2KW | ||
|
|||
| BP300重型 Slab Cutting Multiple Blades Horizontal Circular Saw | |||
| Max Cutting Width | 300mm | ||
| Max. sawing thickness | 80mm | ||
| feeding | frequency speed adjustable | ||
| Motor | 15KW*2 | ||
|
|||
| 500 High Speed Multiple Blade Rip Sawmill | |||
| Max Cutting Plank Width | 500mm | ||
| Max Cutting Plank Thickness | 50mm | ||
| Circular Saw Blade Quantity | 1-3 Pieces | ||
| Motor Power | 22kw | ||
|
|||
| Conveyor Belt | |||
| 160-400 Conveyor Belt | 600mm*6000mm,3KW | ||
| BP300 Conveyor Belt | 600mm*6000mm,3KW | ||
| CB500 Conveyor Belt | 600mm*6000mm,3KW | ||
