4 Head Log Sawing Machine Multiple Heads Horizontal Resaw Band Saws

Basic Information

Place of Origin:	shandong province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DT300-1,DT300-2,DT300-3,DT300-5,DT300-6

Minimum Order Quantity:	1 SET
Price:	US $14,200-37,700 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight
Supply Ability:	500 Sets/Year

Get Best Price Contact Now

Detail Information

Name:	Horizontal Wood Cutting Band Saw	Condition:	New
Voltage:	380V/50HZ/3PH	Power(w):	15kw X 1set, 2sets....
Saw Wheel Diameter:	700MM	Max. Sawing Wood Width:	300mm
Max. Sawing Height:	260mm	Feeding:	Frequency Auto Feeding
Application Wood:	Hardwood / Softwood	Keyword:	Wood Cutting Band Saw,Horizontal Band Saw
Warranty:	1 Year	After-sales Service Provided:	Online Support,Video Technical Support,commissioning And Training
Highlight:	4 head horizontal band saw , log sawing machine with multiple heads , industrial resaw band saws

Product Description

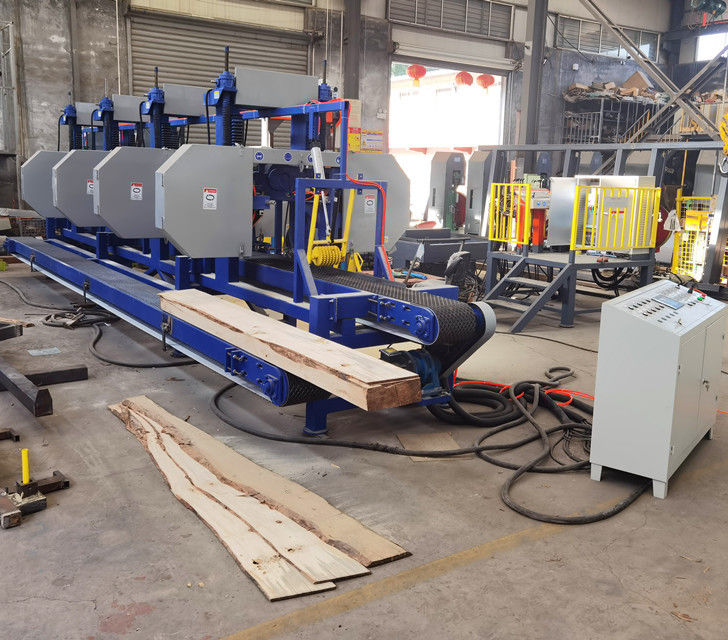

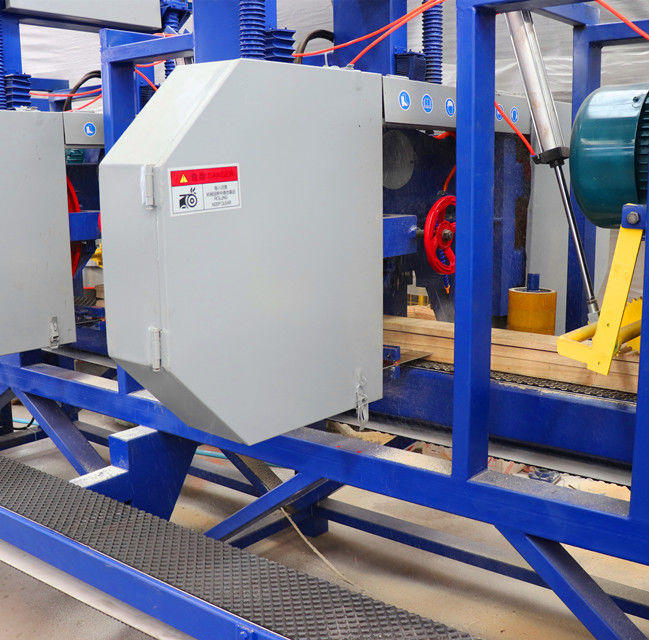

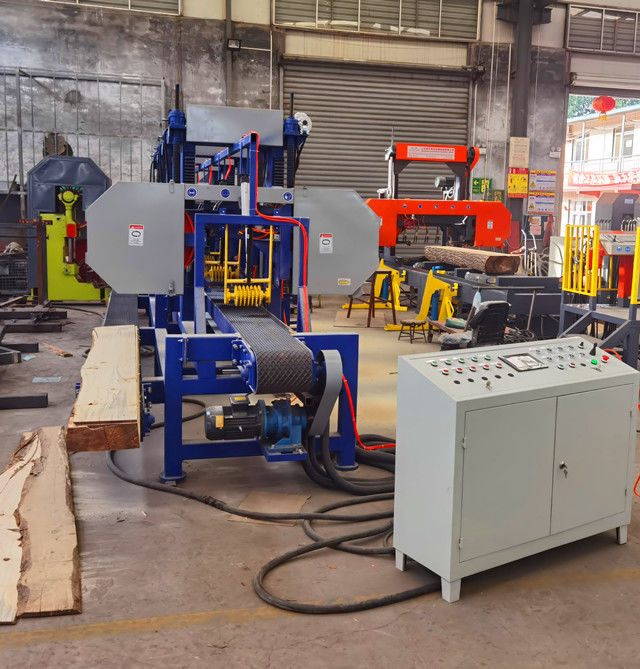

Multiple Heads Horizontal Resaw Band Saws

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

Main Features:

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness
