| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | 2 heads, 3 heads, 5 heads |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | USD12,000 ~USD30,000 |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 100 Set/Sets per Quarter |
| Condition: | New | Type: | Band Saw |
|---|---|---|---|
| Use: | Woodworking | Style: | Horizontal |
| Usage: | Plank Making | Voltage: | 380v,50HZ/3phase Or As Customer Needs |
| Power(W):: | 11kw X 3, 11kw X 5sets, 11kw X 6sets | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machine Overseas | Sawn Thickness Setting Mode: | Touching Screen Digital Control |

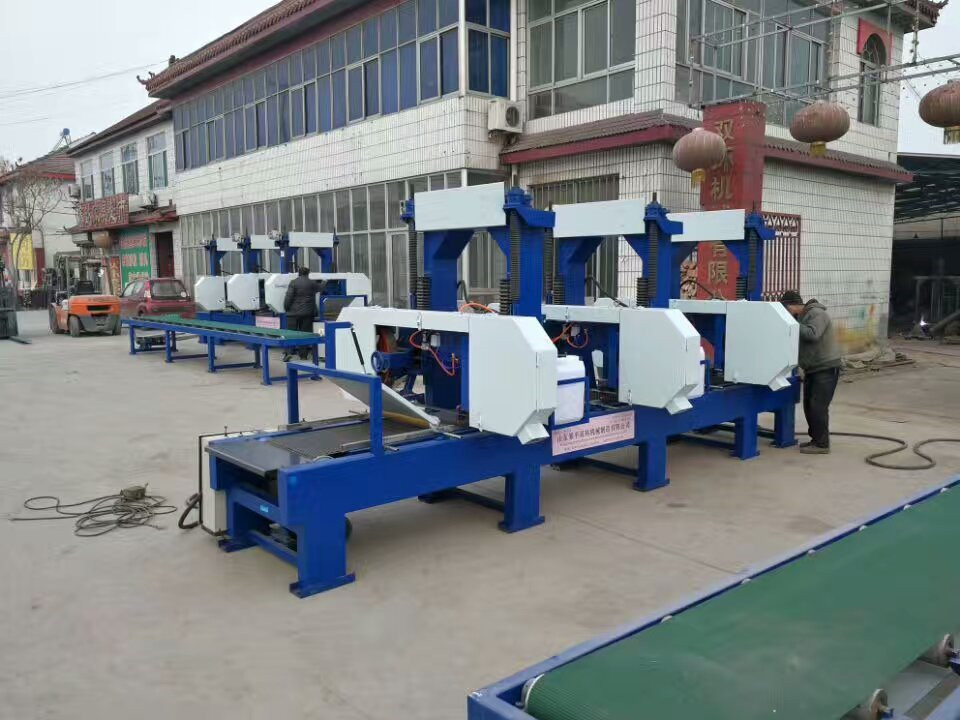

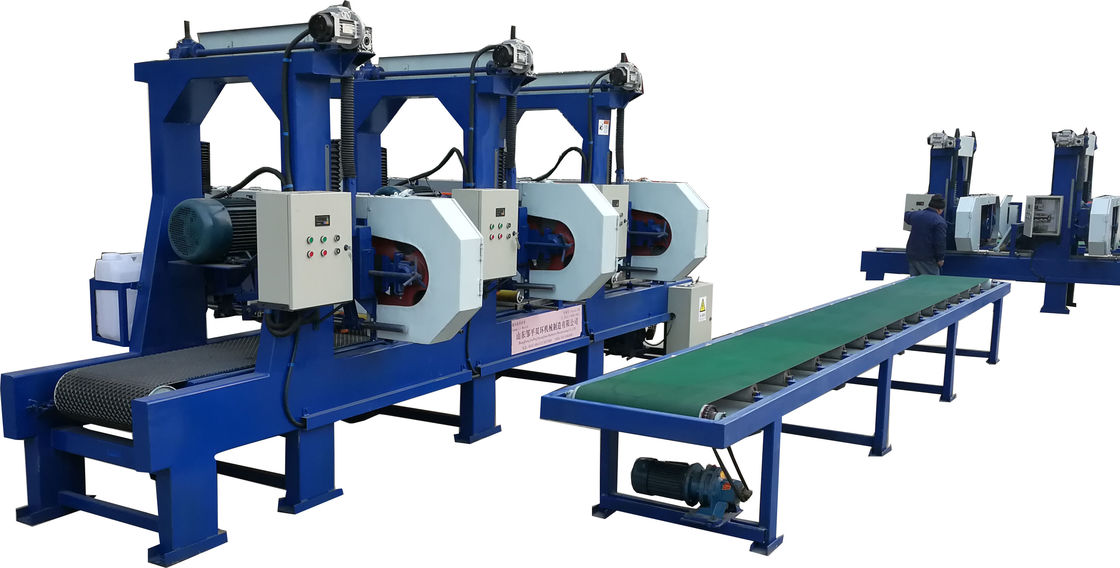

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
|
Model
|
1 head
|
2 heads
|
3 heads
|
5 heads
|
|
sawing wood width
|
400 mm
|
400 mm
|
400 mm
|
400 mm
|
|
sawing thickness
|
2-400mm
|
2-400mm
|
2-400mm
|
2-400mm
|
|
saw blade width
|
32,41,50,54,65mm
|
|||
|
saw blade length
|
5000mm
|
5000mm
|
5000mm
|
5000mm
|
|
main motor
|
11kw*1
|
11kw*2
|
11kw*3
|
11kw*5
|
|
Method of feeding
|
Frequecy control conveyor
|
Frequecy control conveyor
|
Frequecy control conveyor
|
Frequecy control conveyor
|
|
machine length
|
3500mm
|
3500mm
|
5000mm
|
8000mm
|
|
weight
|
1200KG
|
2000KG
|
2500KG
|
4000KG
|
