Detail Information

Name:	Multiple Head Horizontal Band Resaw Machine	Sawing Thickness:	2mm To 260mm
Max. Sawing Width &height:	300mm	Power(W)::	11kw X 3set, 11kw X 4sets, Etc
Saw Wheel Diameter:	700mm Or 600mm	Saw Blade Width:	50mm To 80mm
Feeding:	Frequency Speed Adjustable	Application Wood:	Logs And Square Wood,Hardwood / Softwood
Keyword:	Wood Cutting Band Saw,Wood Table Saw Machine,Horizontal Band Saw	Warranty:	12 Months
After-sales Service Provided:	Online Support,Video Technical Support,commissioning And Training
Highlight:	600mm Dia Industrial Sawmill Equipment , 600mm Horizontal Resaw Bandsaw , horizontal resaw machine

Product Description

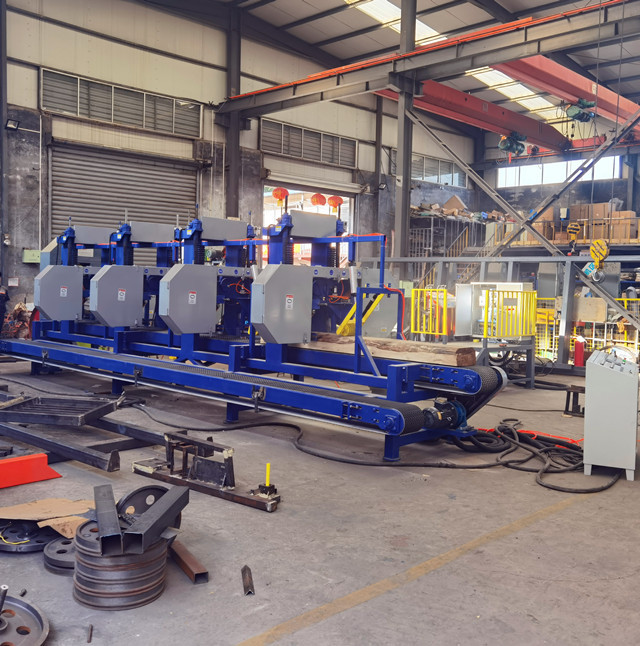

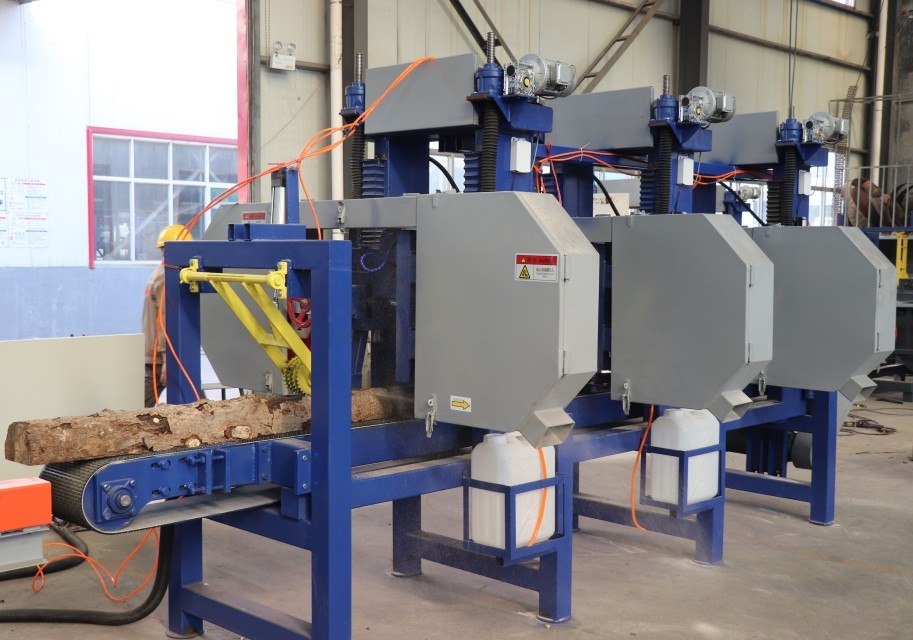

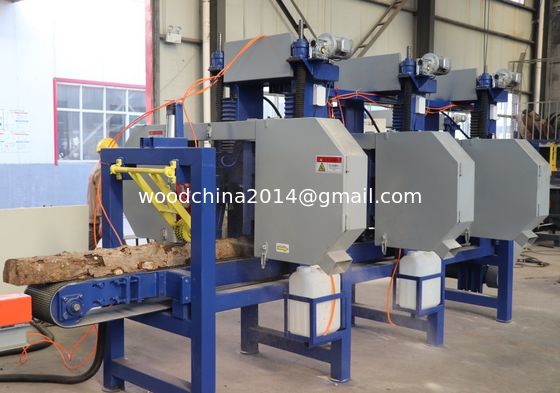

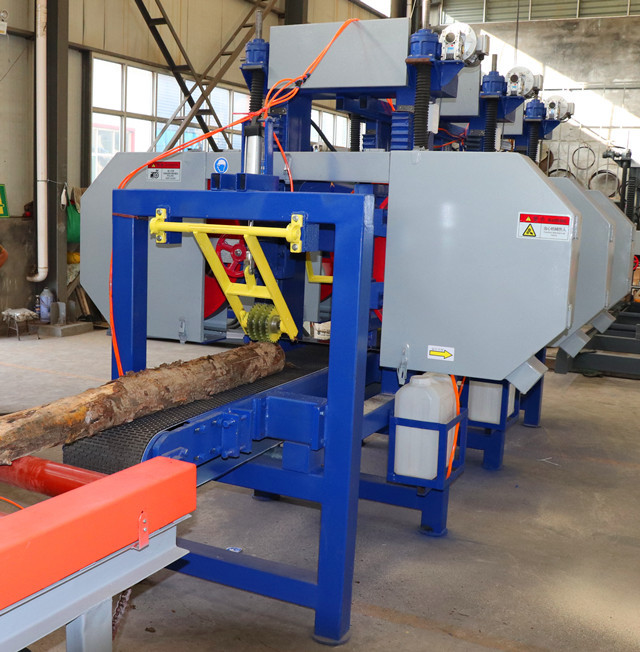

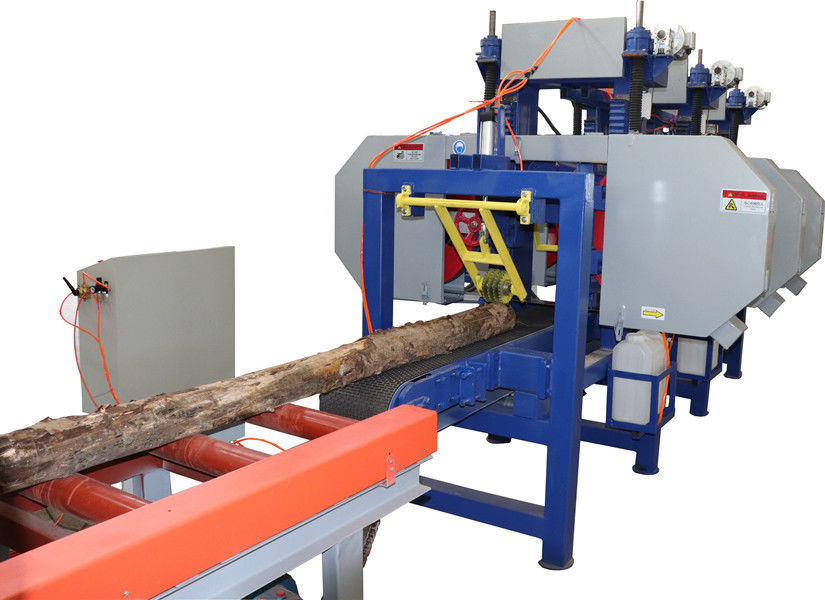

DT300-3 Multi Heads Horizontal Resaw Band Saw Mill Machine For Log

Multiple Heads Horizontal Resaw Band Saws

This machine is easy-operated,high efficiency and easy-installed.

The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.

Main Features:

1.The head quantity from one to six is available.

2.Touch screen setting sawing thickness.

3.Variable Frequency Speed Adjustable Feeding Speed.

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image

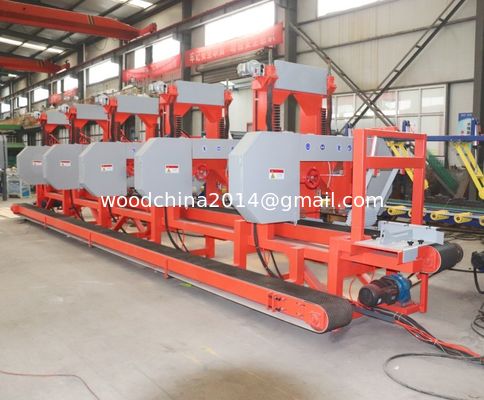

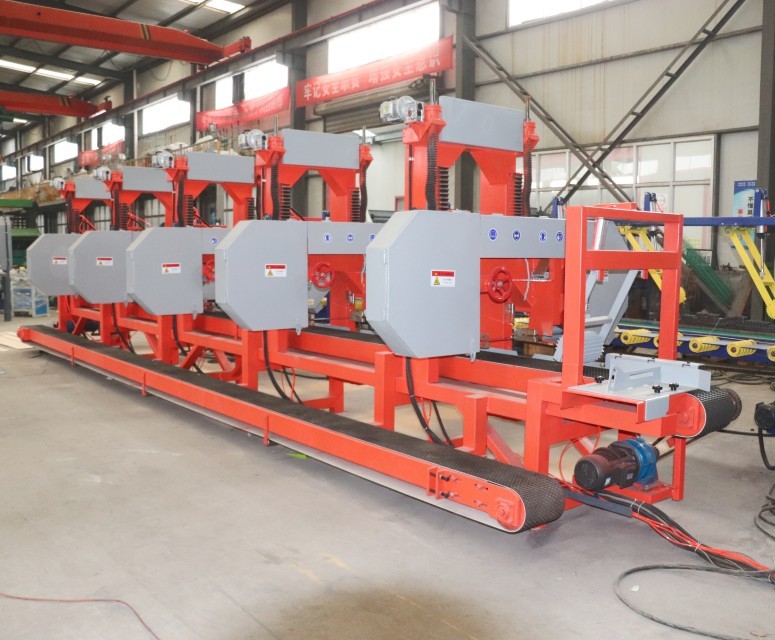

6heads band resaw

Optional - board returning conveyor

Optional - max. sawing width 640mm as customer needs

Client factory visit

Related Saw Machine

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	210mm	210mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

Industrial Sawmill Equipment Horizontal Resaw Bandsaw 5

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	DT300-2,DT300-3,DT300-4,DT300-5,DT300-6

Minimum Order Quantity:	1 SET
Price:	US $14,200-37,700 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000 Set/Sets per Year
