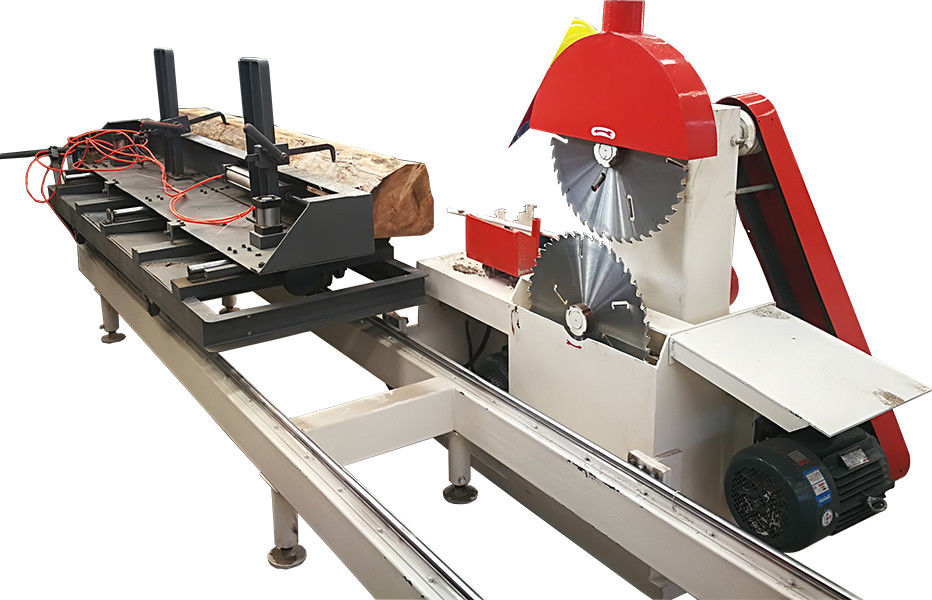

Round Log Cutting Circular Sawmill Sliding Table Saw Machines

Twin Blades Circular Sliding Table Sawmill

• The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
• The circular saw blade can avoid band saw blade bending,or dig hole on wood.
• The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
• The production capacity is more than 4 timers than band sawmill.
• The specification is adjustable,Convenient to move the running rule,accuracy.
• The track use linear guideway,accuracy,no error,wear resistent.
• The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.
• Main Specification:

1. ​cutting log max. diameter: 400mm
2. Feeding: manual type or frequency auto feeding
3. Power : 7.5kw x2 sets electric motor or 40HP diesel engine

• Wood Sliding Table Sawmill (Manual type )

  Model	TT1500	TT2000	TT3000
  Max Sawing Wood Diameter	400mm	400mm	400mm
  Max Sawing Wood Length	1500mm	2000mm	3000mm
  Saw Blade Diameter	500mm	500mm	500mm
  Motor Power	7.5KW*2	7.5KW*2	7.5KW*2
  Rail Length	3500mm	5000mm	6500mm
  Wood Fasten Model	Pneumatic up/down	Pneumatic up/down	Pneumatic up/down
  Carriage Rail Model	Linear Axis	Linear Axis	Linear Axis

  Working video link: https://youtu.be/SRpLTa6-61w





• Diesel Engine Power Circular Saws
