| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | DT300-1,DT300-2,DT300-3,DT300-5,DT300-6 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $14,200-37,700 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 10 Set/Sets per month |
| Condition: | New | Type: | Horizontal Band Saw |
|---|---|---|---|
| Use: | Woodworking | Voltage: | 380v,50HZ/3phase Or As Customer Needs |
| Warranty: | 12 Months | Motor Power: | 11kw X 2sets, 11kwx3sets, 11kw X5sets, Etc |
| Sawn Thickness Setting Mode: | PLC Touching Screen Auto Setworks | Feeding: | Frequency Variable Conveyor Auto Feeding |

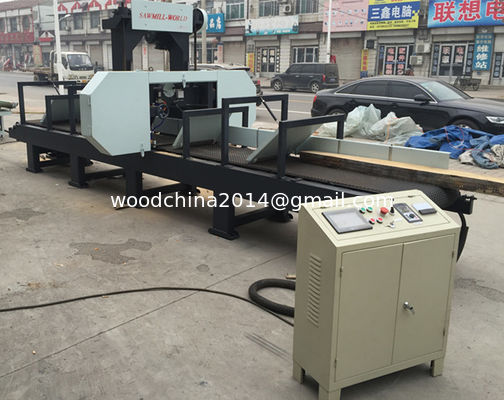

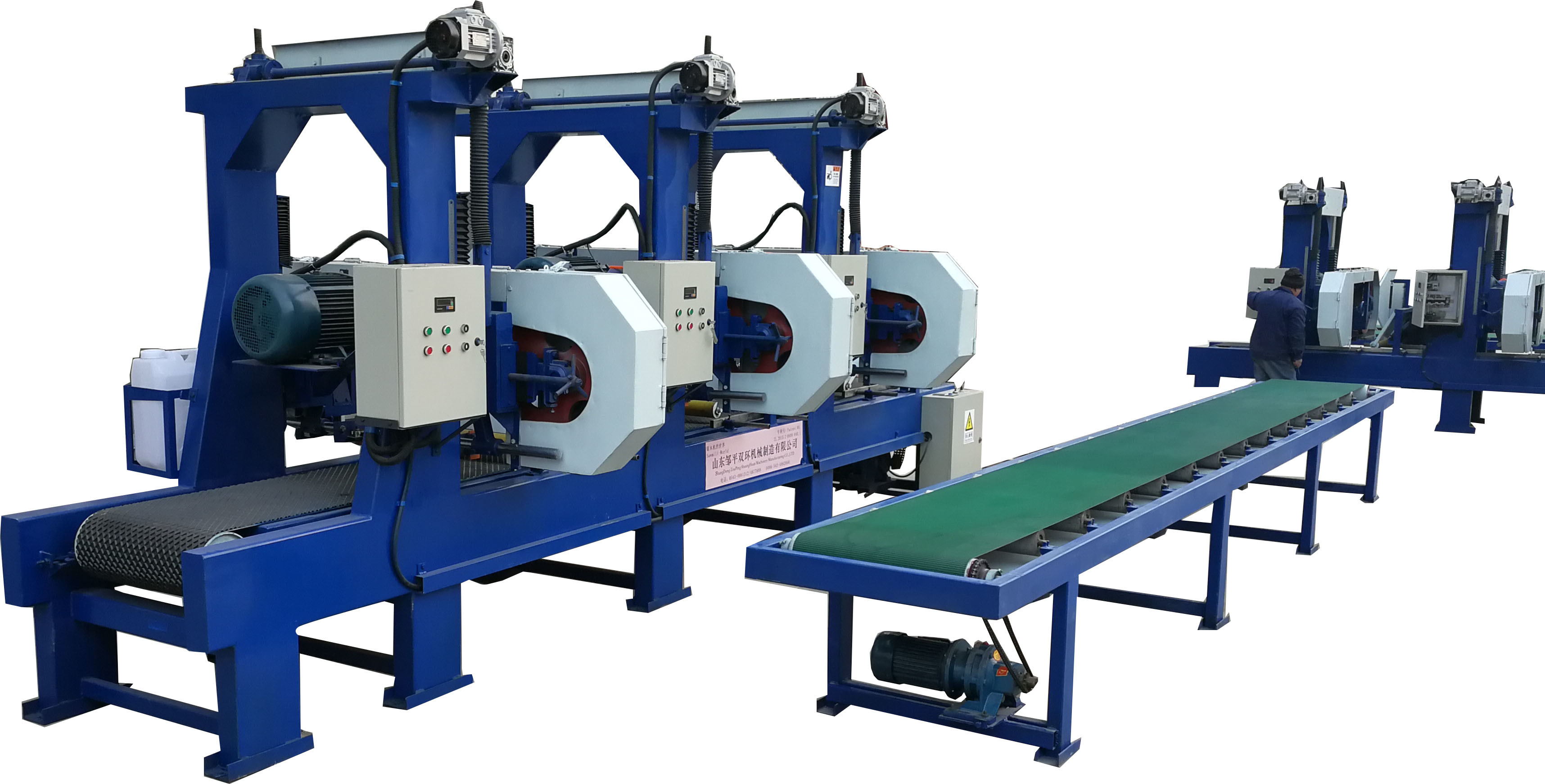

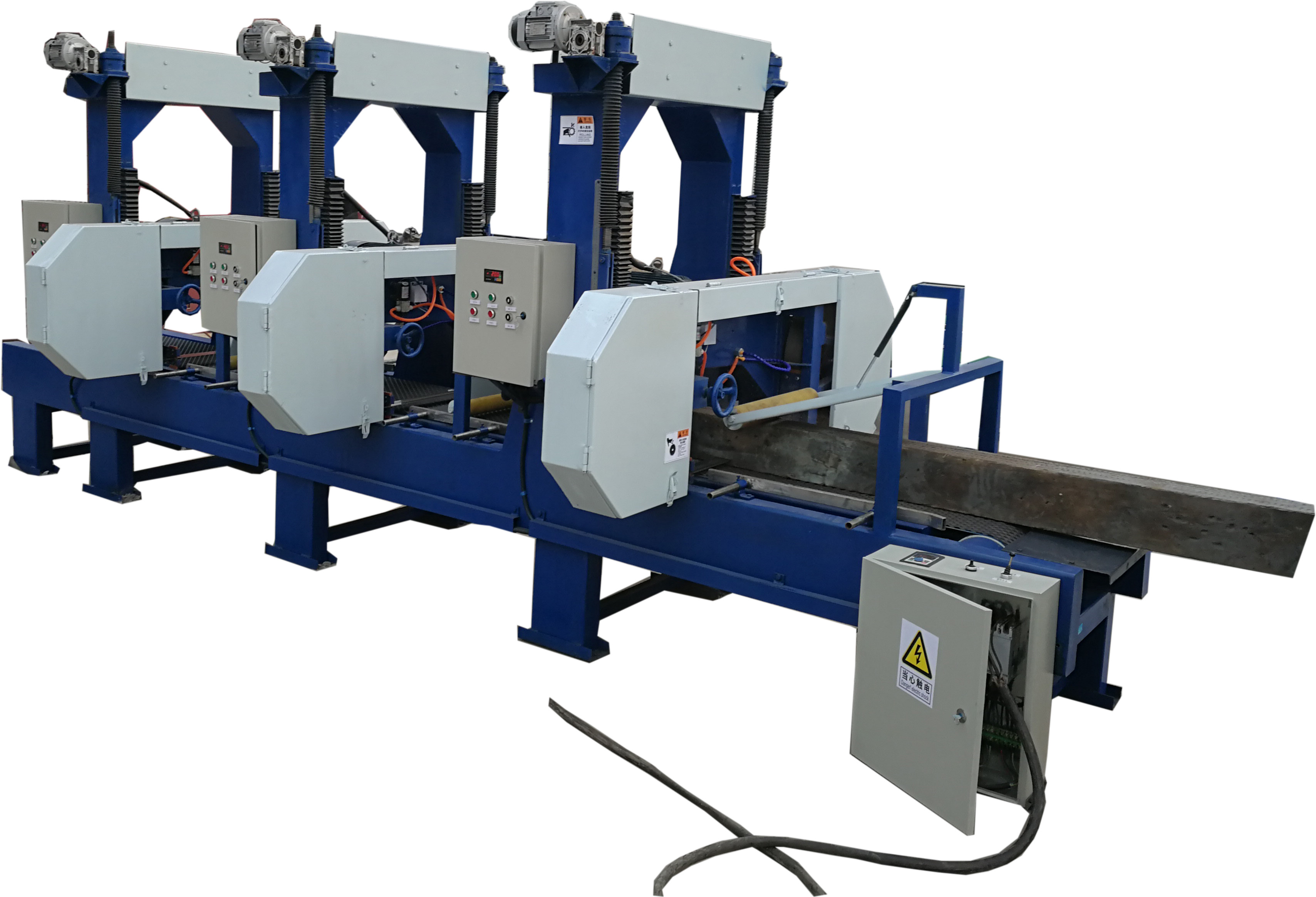

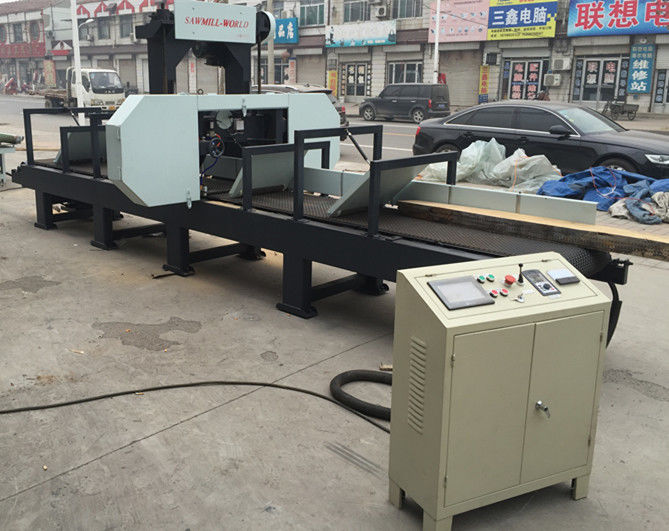

This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||
