DS2000 Automatic Double Blades Circular Sawing Swing Blade Saw Mill Machine

Place of Origin shandong province, China
Brand Name SH
Certification ISO9001
Model Number DS700 D1300,DS2000
Minimum Order Quantity 1 SET
Price US $8,700 - 14,800 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Circular Saw
Voltage 380v,3phase Or As Customer Needs Use Wood Cutting
Warranty 12 Months Usage Square Timber Cut
Controlling System PLC Automacit Control
Leave a Message
Product Description

Double Blades Angle Circular Saw Mill

  • The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety.
  • The angle circular saw is a machine that:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric inverter crane,touch screen for length calculation and remote control.
  • Technical Data:
Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM 1x760mm,1x546mm
Motors Power(KW)

11KW*2,

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,15KW *1

1.1KW*3

Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

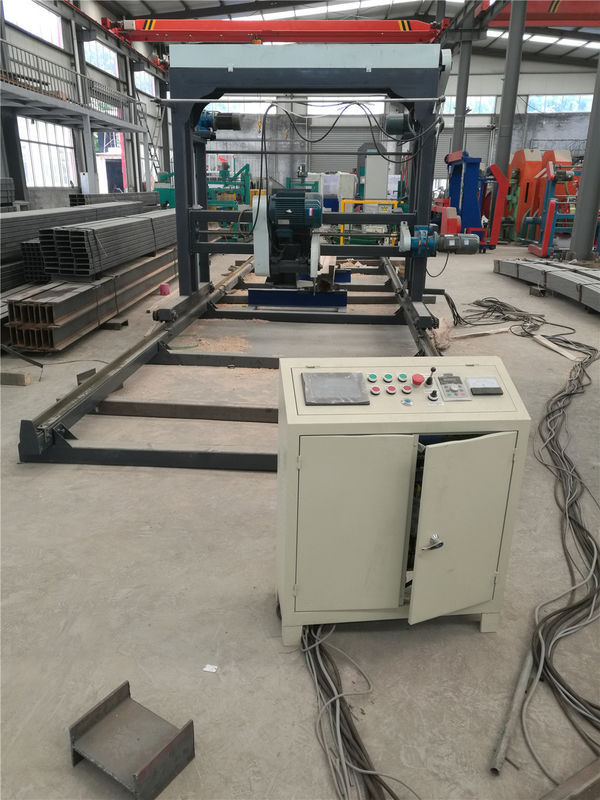

DS2000 Automatic Double Blades Circular Sawing Swing Blade Saw Mill Machine 0

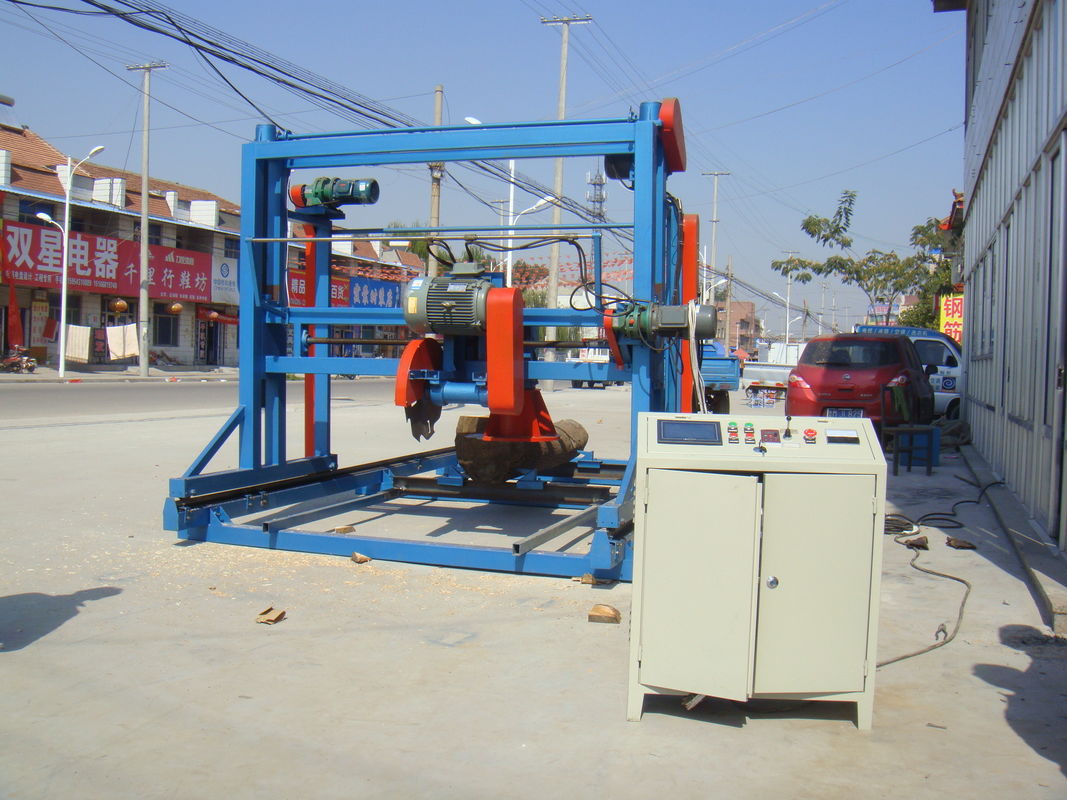

DS2000 Automatic Double Blades Circular Sawing Swing Blade Saw Mill Machine 1
