Double Saw Blade lucas mill saw mill machine circular saw machine

Basic Information
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: DS700 D1300,DS2000
Minimum Order Quantity: 1 SET
Price: US $8,700 - 14,800 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Detail Information
Condition: New Type: Circular Saw
Voltage: 380v,3phase,50hz Or As Customer Needs Use: Wood Cutting
Warranty: 12 Months Usage: Square Timber Cut
Controlling System: PLC Automacit Control

Product Description

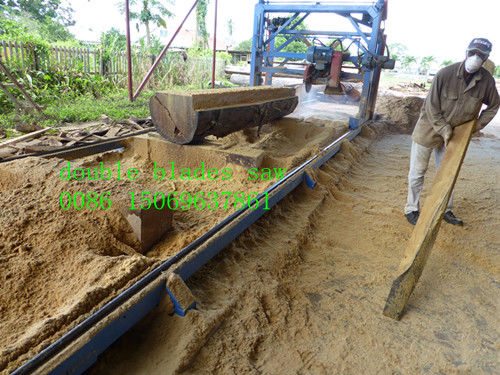

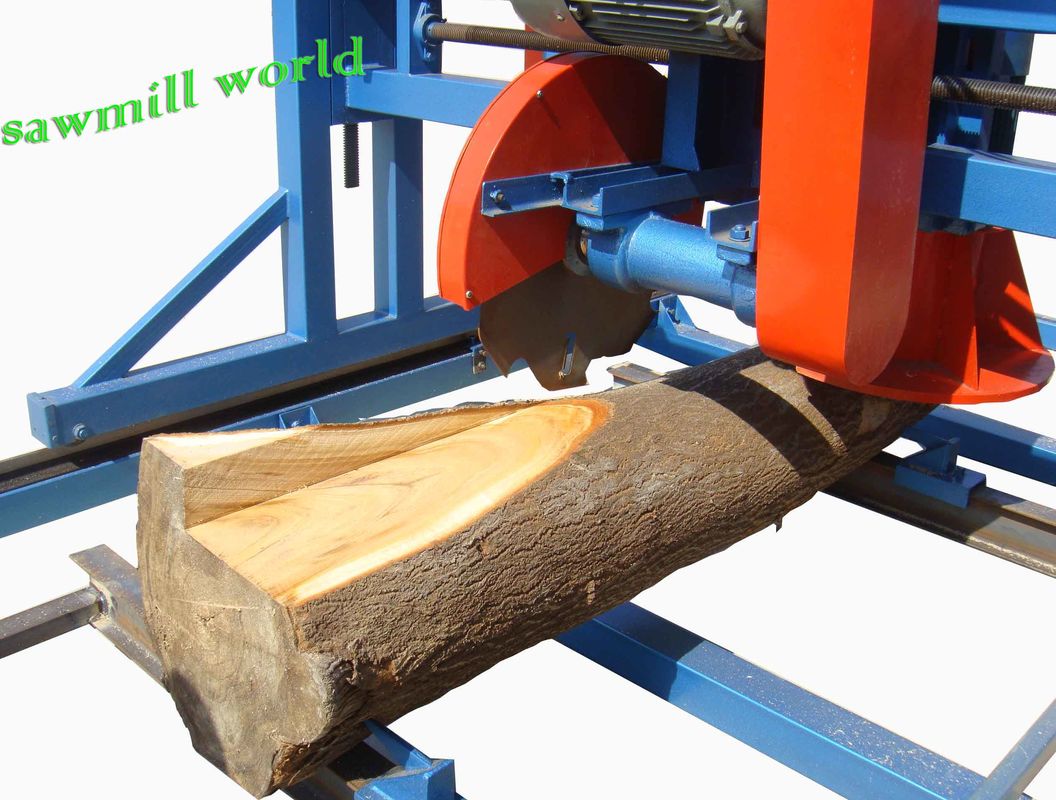

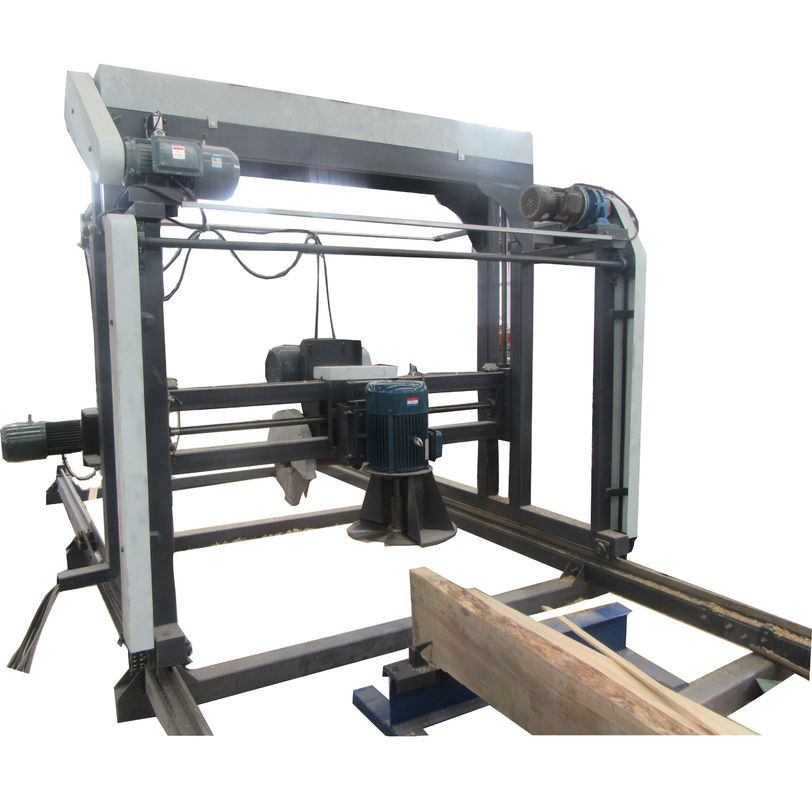

Double Blades Angle Circular Saw Mill

The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.

The Blades enables cutting in both directions,which considerably increases the cutting capacity.

Quick and accurate electronic positioning guarantee invariable high productivity and safety.

The angle circular saw is a machine that:

Produces lumber with saw-cut dimension accuracy up to ± 1mm

Produces lumber of excellent surface quality

Results in very low operational costs

Electric inverter crane,touch screen for length calculation and remote control.





Technical Parameter



DS700 DS1300 DS1300A DS2000 DS2000A



Max Sawing Wood Diameter

700MM 1300MM 1300MM 2000MM 2000MM



Max Sawing Wood Size



150*150MM 210 * 210MM 300*210MM 210*210MM 300*210MM



Saw Blade Diameter



2*424MM 2*546MM

1*760mm,

1*546mm

2*546MM

1*760mm

1*546mm

Motors Power(KW)

5.5KW*2,

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,

15 KW*1

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,

15KW*1

1.1KW*3



Max Swing Wood Length



6 Meters 6 Meters 6 Meters 6 Meters 6 Meters



Machine weight



1500KG 2000KG 2500KG 2700KG

3000KG



Double Saw Blade lucas mill saw mill machine circular saw machine 0Double Saw Blade lucas mill saw mill machine circular saw machine 1Double Saw Blade lucas mill saw mill machine circular saw machine 2
