Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number DS700 D1300,DS2000
Minimum Order Quantity 1 SET Circular saw wood cutting machine portable saw mill
Price US $6,700 - 14,800 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Circular Saw Wood Cutting Machine Portable Saw Mill Usage Sawing Round Logs Into Square Timber
Max. Sawing Log Diameter 2000mm Sawing Log Max. Length 6000mm Or As Customer Needs
Max. Sawn Width X Thickness 300mm X 210mm Saw Head Walking Frequency Speed Adjustable
Saw Blade Moving Automatic Main Motor 22kw X 1, 15kw X 1set
Operation Automatic Keywords Portable Swing Blade Sawmill, Wood Saw Machine
High Light

Double Blades Swing Blade Saw Mills


6M Swing Blade Saw Mills


180 degree swing blade sawmill

Leave a Message
Product Description

Circular saw wood cutting machine portable saw mill, Double Blades Sawmill for 6 meters flooring material

Double Saw blade Angle Circular Swing Blades SawMill

  • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
  • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
  • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
  • The angle circular saw is a machinethat:
  • Produces lumber with saw-cut dimension accuracy up to ± 1mm
  • Produces lumber of excellent surface quality
  • Results in very low operational costs
  • Electric invertor crane, computer touch screen for length calculation and remote control.


  • Max. sawing timber size : 300mm x 210mm
  • Carbide circular blade diameter : 760mm , 546mm
  • Log feeding : frequency auto feeding
Model DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM



Motors Power(KW)


1.5KW*2, 2,2kw


1.5KW*1,2.2KW*1, 3kw x 1


2.2KW*1, 3kw x 1, 1.5kw x 1

Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG

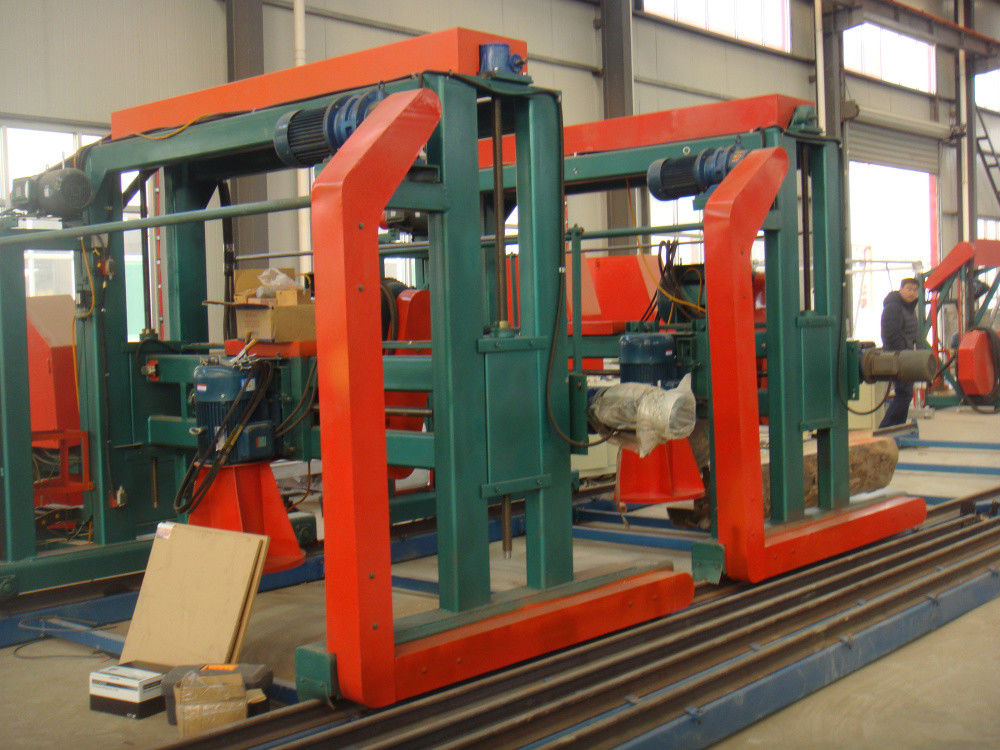

Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material 0

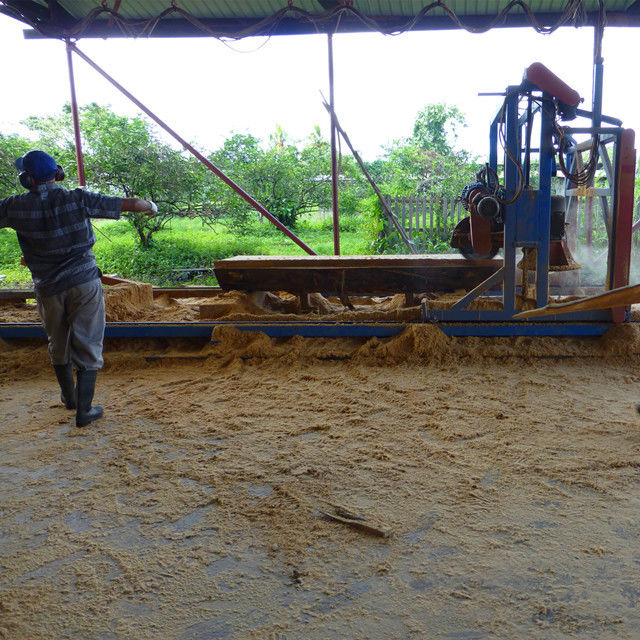

Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material 1

Hot Selling Products:

Twin blades sliding table sawmill -manual type


model TT1500 TT2000 TT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3000mm 5000mm 6000mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode Manual Manual Manual
Setting size mode Manual Manual Manual

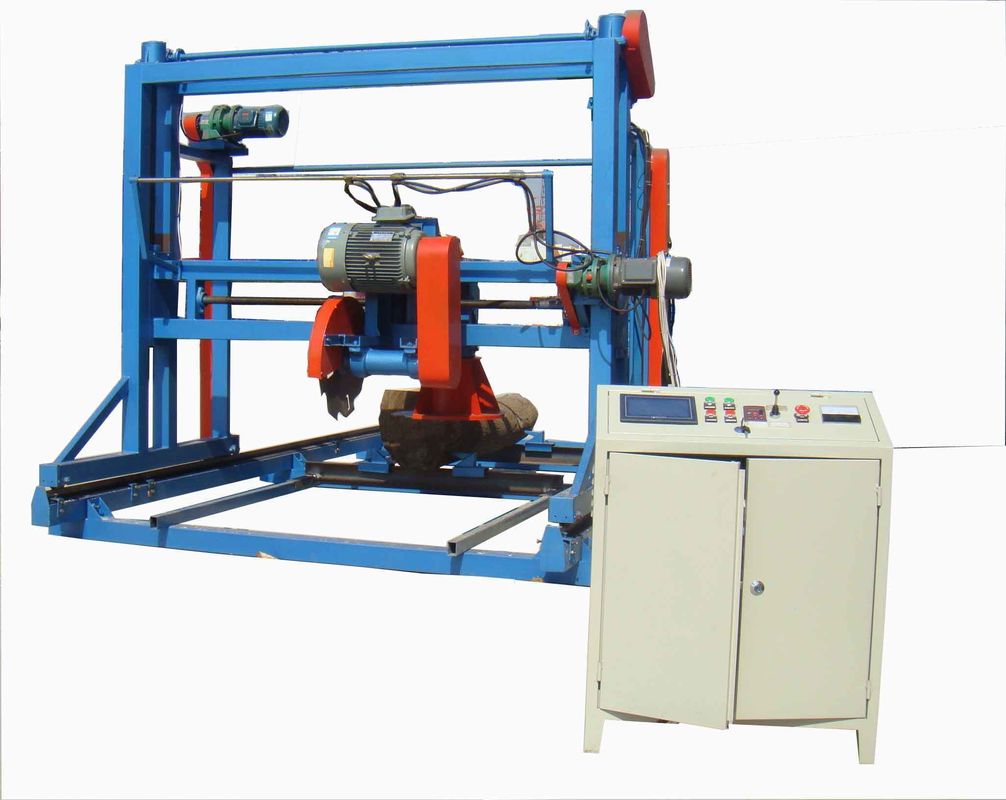

Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material 2

Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .



MJ700E MJ1000E MJ1300E MJ1600E


Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM


Saw Wheel Diameter

600MM 700MM 700MM 700MM


Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM


Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500


Main Motor Power

15KW 18.5KW 22KW 30KW


Lifting Motor Power

1.5KW 1.5KW 1.5KW 1.5KW


Total Weight (KG)

1100 1100 1300 1500


Detailed Images of stanard model:

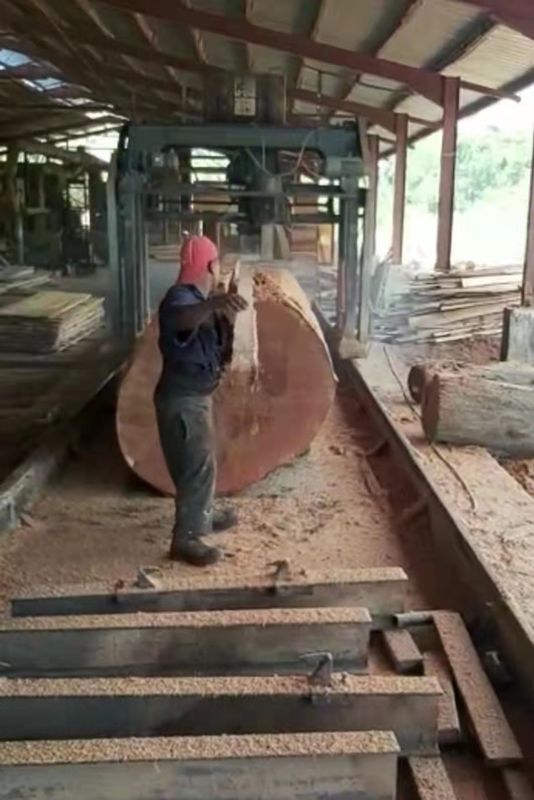

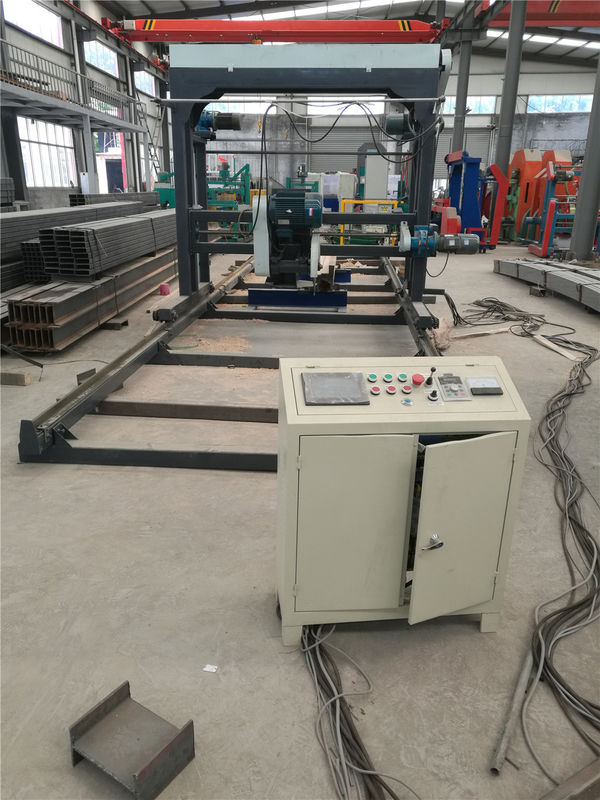

Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material 3


Multi Blades Rip Saw


  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 210mm 210mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min

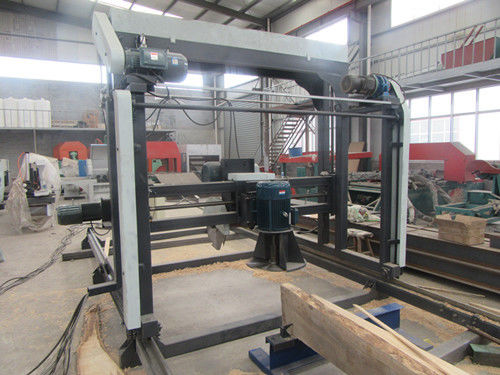

Double Blades Swing Blade Saw Mills For 6 Meters Flooring Material 4
