Wood cutting circular saw, lucas mill saw mill machine circular saw machine

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number DS700 D1300,DS2000
Minimum Order Quantity 1 SET
Price US $8,700 - 14,800 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Circular Saw
Voltage 380v,3phase,50hz Or As Customer Needs Use Wood Cutting
Warranty 12 Months Usage Square Timber Cut
Controlling System PLC Automacit Control
Leave a Message
Product Description

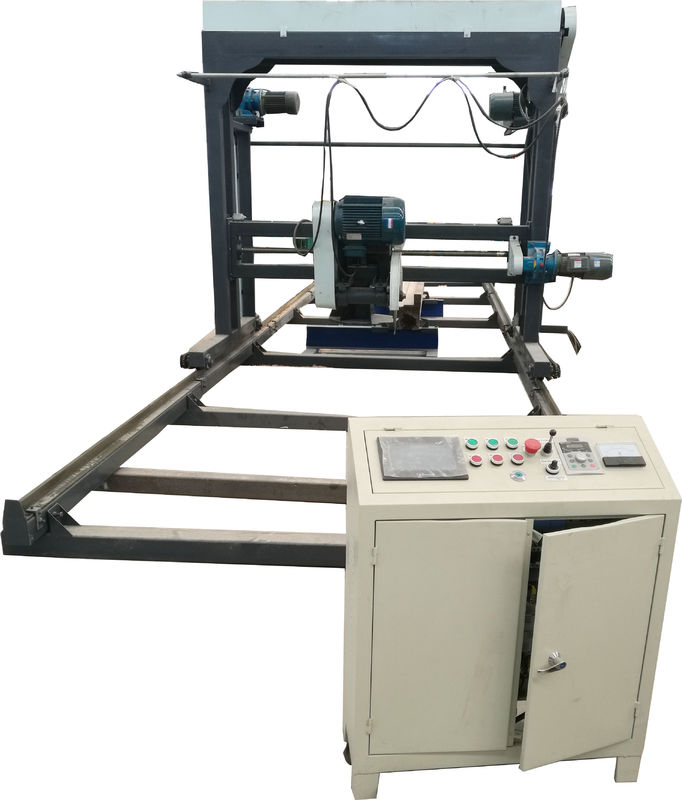

Double Blades Angle Circular Saw Mill

The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.

The Blades enables cutting in both directions,which considerably increases the cutting capacity.

Quick and accurate electronic positioning guarantee invariable high productivity and safety.

The angle circular saw is a machine that:

Produces lumber with saw-cut dimension accuracy up to ± 1mm

Produces lumber of excellent surface quality

Results in very low operational costs

Electric inverter crane,touch screen for length calculation and remote control.



Technical Parameter DS700 DS1300 DS1300A DS2000 DS2000A
Max Sawing Wood Diameter 700MM 1300MM 1300MM 2000MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM 210*210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM

1*760mm,

1*546mm

2*546MM

1*760mm

1*546mm

Motors Power(KW)

5.5KW*2,

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,

15 KW*1

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,

15KW*1

1.1KW*3

Max Swing Wood Length 6 Meters 6 Meters 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 2500KG 2700KG

3000KG
