Timber Cutting Double Blade Circular Saw Portable Swing Blade Sawmill

Basic Information
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: DS700 D1300,DS2000
Minimum Order Quantity: 1 SET
Price: US $8,700 - 14,800 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Detail Information
Condition: New Type: Circular Sawmill
Voltage: 380v,3phase,50hz Or As Customer Needs Use: Woodworking
Warranty: 12 Months Control: PLC Touching Screen Auto Setworks
Walking: Frequency Variable Sawn Timber Max. Size: 300x210mm

Product Description

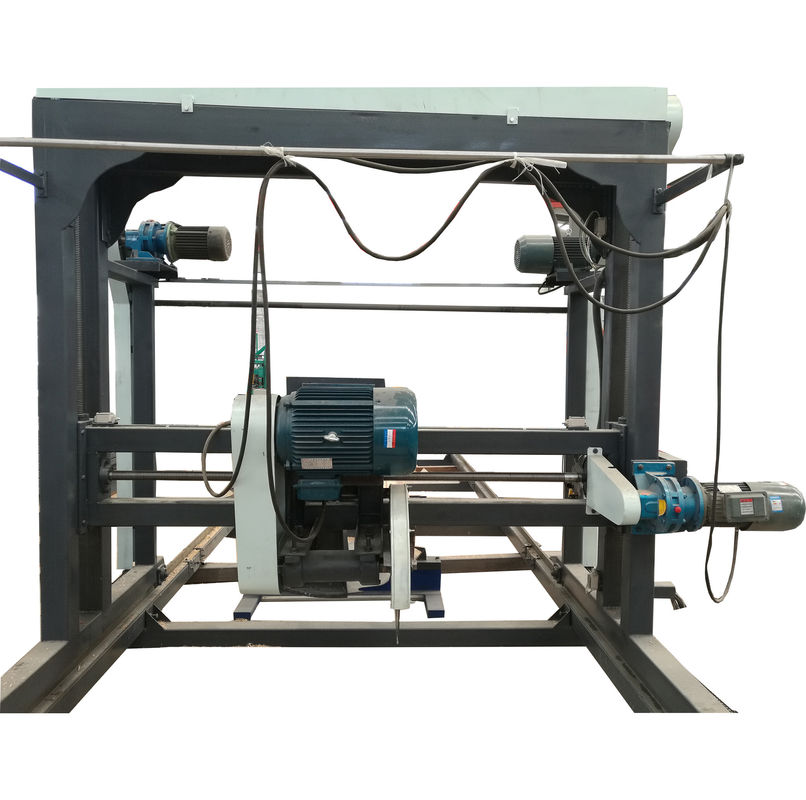

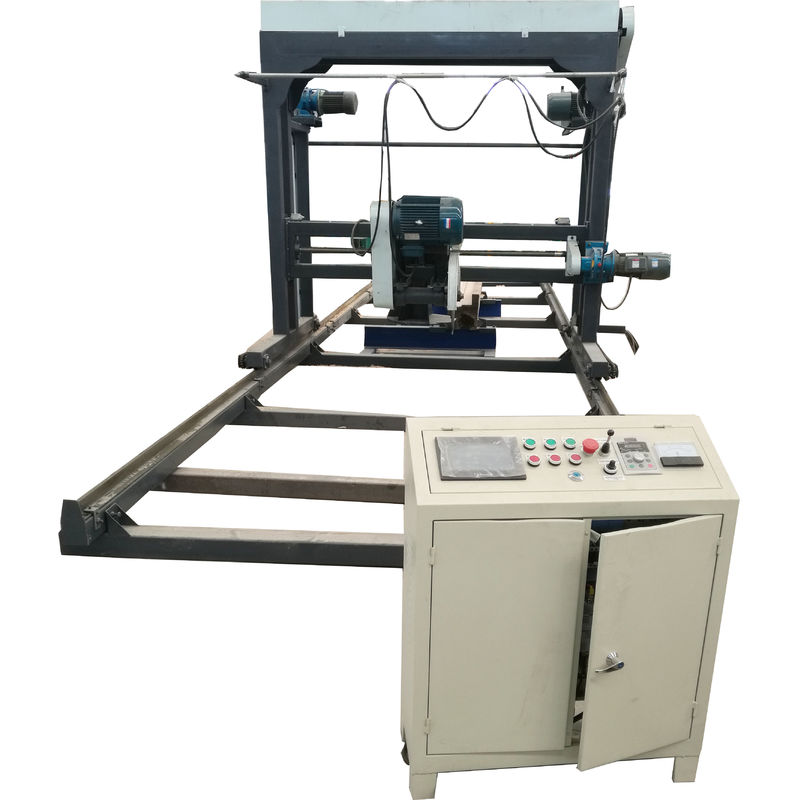

Double Saw Blade Angle Circular Sawmill



Introduction :

The saw machine is equipped with 2 alloy saw blades. The saw blade can cut horizontally and vertically so that we can get square wood at one time .

The machine's sawing size is set by the computer touching screen, and walking is controlled by the inverter. It is widely used for processing the wood into square timber wood and floor base board.



Technical Data :



Technical Parameter DS700 DS1300 DS2000
Max Sawing Wood Diameter 700MM 1300MM 2000MM
Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
Saw Blade Diameter 2*424MM 2*546MM 1x760mm,1x546mm
Motors Power(KW)

11KW*2,

1.1KW*3

15KW*2,

1.1KW*3

22KW*1,15KW *1

1.1KW*3

Max Swing Wood Length 6 Meters 6 Meters 6 Meters
Machine weight 1500KG 2000KG 3000KG



Timber Cutting Double Blade Circular Saw Portable Swing Blade Sawmill 0

Timber Cutting Double Blade Circular Saw Portable Swing Blade Sawmill 1Timber Cutting Double Blade Circular Saw Portable Swing Blade Sawmill 2
