| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | BT3000-600, BT3000-1000, BT3000-1500 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $2,900-8,900 / Sets |
| Packaging Details: | container loading |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1500sets/year |
| Type: | Circular Saw | Use: | Woodworking |
|---|---|---|---|
| Style: | Vertical | Condition: | New |
| Voltage: | 380V/3PHASE/50HZ Or As Customer Needs | Warranty: | 12 Month |
| Power: | 11KW-15KW | Cutting Max. Width: | 1500mm |
| Cutting Length: | As Customer Needs | Feeding: | Manual Or Electric |
| Operation: | Manual Or PLC Touching Screen |
Wood Edger Cutting Circular Blade Table Sawmill
Technical data:
| Model | BT3000-600 | BT3000-1000 | BT3000-1500 |
| Sawing thickness | 10-180mm | 10-180mm | 10-180mm |
| Sawing maximum length | 3000mm | 3000mm | 3000mm |
| Sawing maximum width | 600mm | 1000mm | 1500mm |
| Circular blade diameter | 500mm | 500mm | 500mm |
| Motor power | 11KW | 15KW | 15KW |
| Track length | 5800mm | 5800mm | 5800mm |
| Wood grasp type | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Manual | Manual | Manual |
| Operation | Manual | Manual | Manual |
|
Optional parts: 1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks |
|||

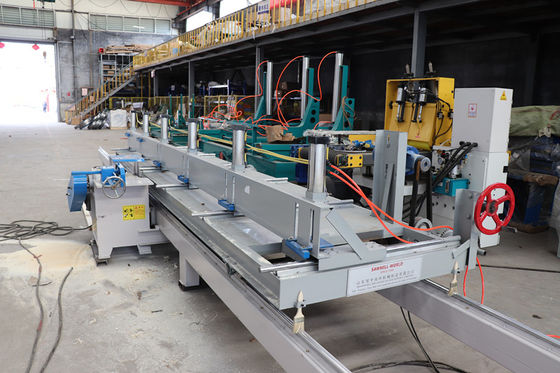

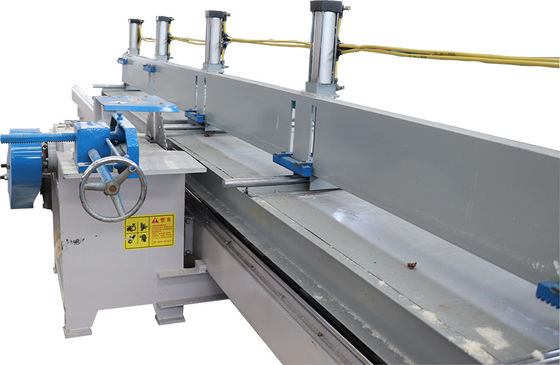

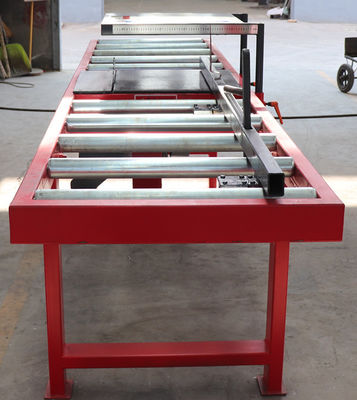

Photos:
