Dual Blade Sawmill Wood Double Blades Angle Circular Saw Mills for timber cutting
| Place of Origin | shandong province |
|---|---|
| Brand Name | sawmillworld |
| Certification | ISO |
| Model Number | DS700 D1300,DS2000 |
| Minimum Order Quantity | 1 SET |
| Price | US $ 8,000 - 12,500 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Circular Saw |
|---|---|---|---|
| Use | Woodworking | Style | Horizontal And Vertical |
| Voltage | 380V/3phase/50HZ | Dimension(L*W*H) | 2300*2300*2500 |
| Weight | 2000 KG | Warranty | 12 Month |
| After-sales Service Provided | Engineers Available To Service Machine Overseas |
Product Description

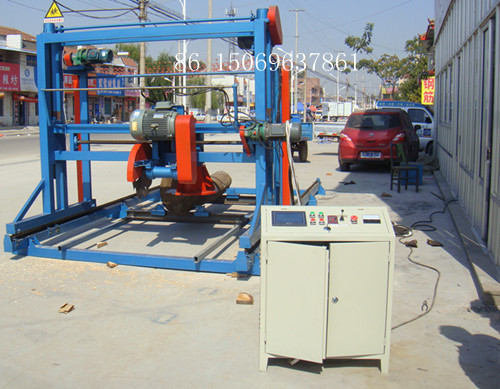

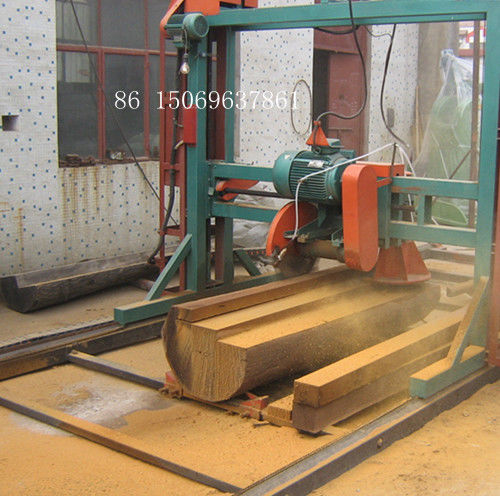

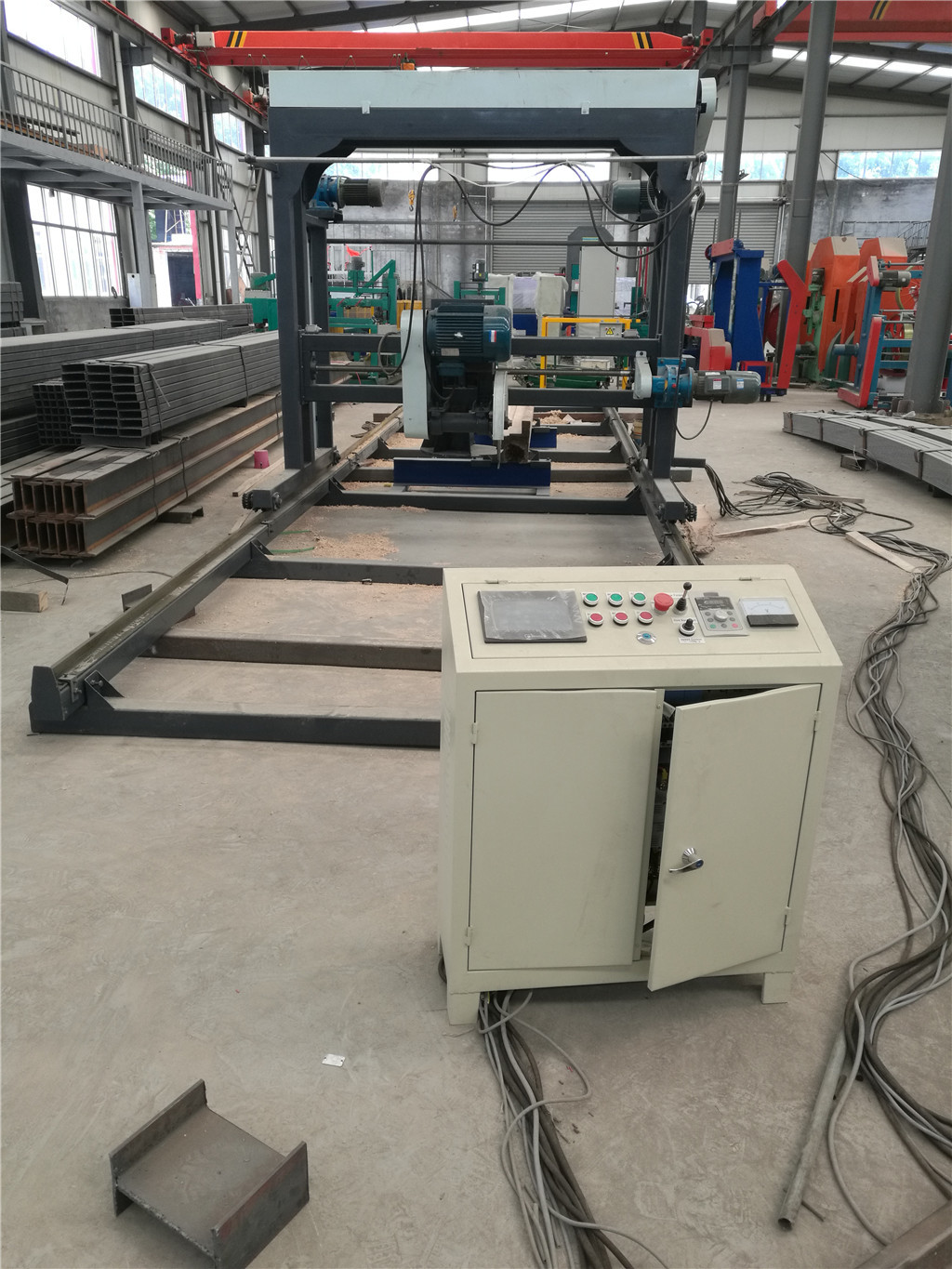

Double Saw Blade Angle Sawmill (Patented Product)
The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety.
The angle circular saw is a machine that:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric inverter crane,touch screen for length calculation and remote control.
|
Technical parameters |
700Model |
1300Model |
2000Model |
|
Manageable log diameter max |
700mm |
1300mm |
2000mm |
|
Saw-cut dimensions max. |
150mm * 150 mm |
210mm * 210 mm |
210mm * 300 mm |
|
Saw blade diameter |
2x424mm |
2x546mm |
546mm,760mm |
|
Main electric motors power |
2*7.5 kW , 3*1.1kW |
2*13 kW , 3*1.1kW |
2*18.5 kW , 3*1.1kW |
|
Processable log length |
6000mm |
6000mm |
6000mm |
|
Machine weight |
1500kg |
2000kg |
2500kg |
|
Free Accessories For Each Machine |
|||||||
|
12 V DC Grinding Machine |
1 Pc |
Photoelectricity switch |
2 Pcs |
Blade Fix Screw |
20Pcs |
V Belt |
1 Set |
|
Blade Tip Welding Tool |
1 Pc |
Sand Wheel |
1 Pcs |
Saw Blade |
2 Pcs |
Run Wheel |
1 Set |
