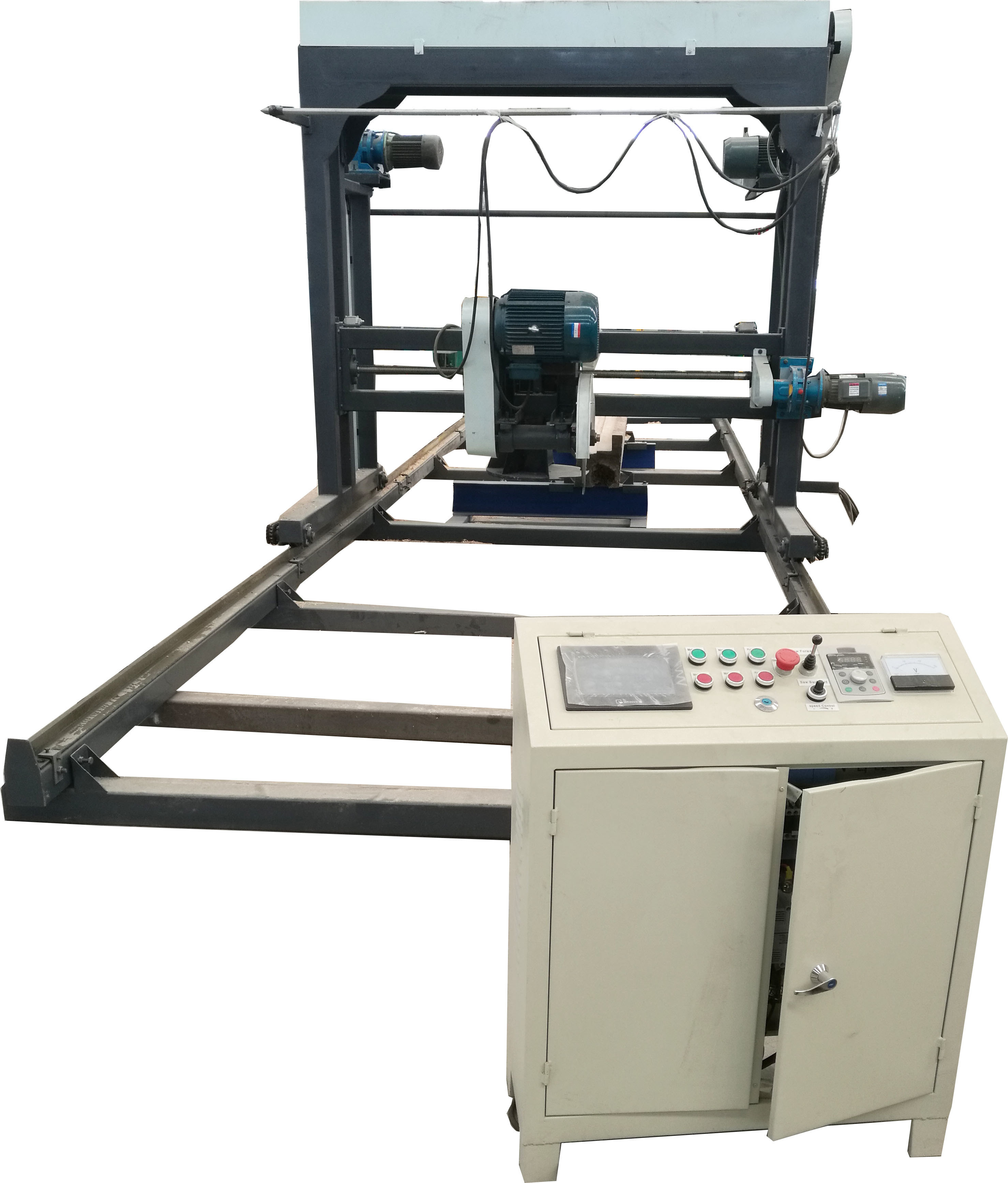

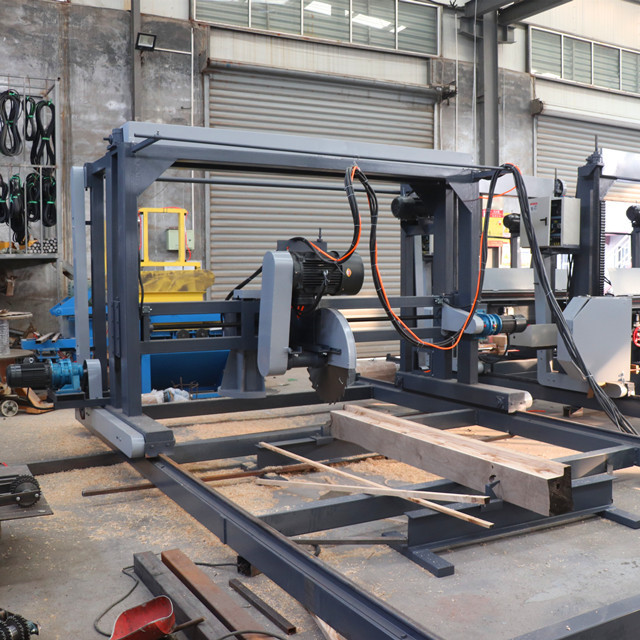

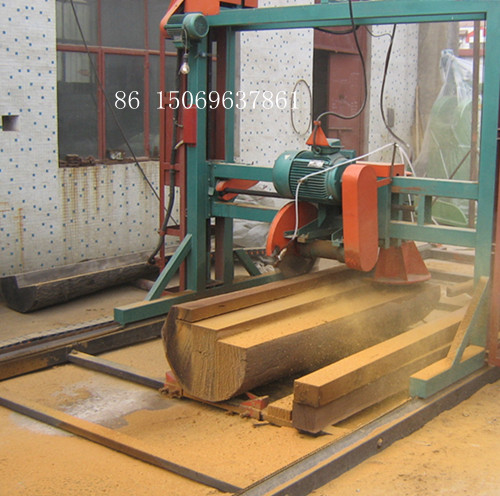

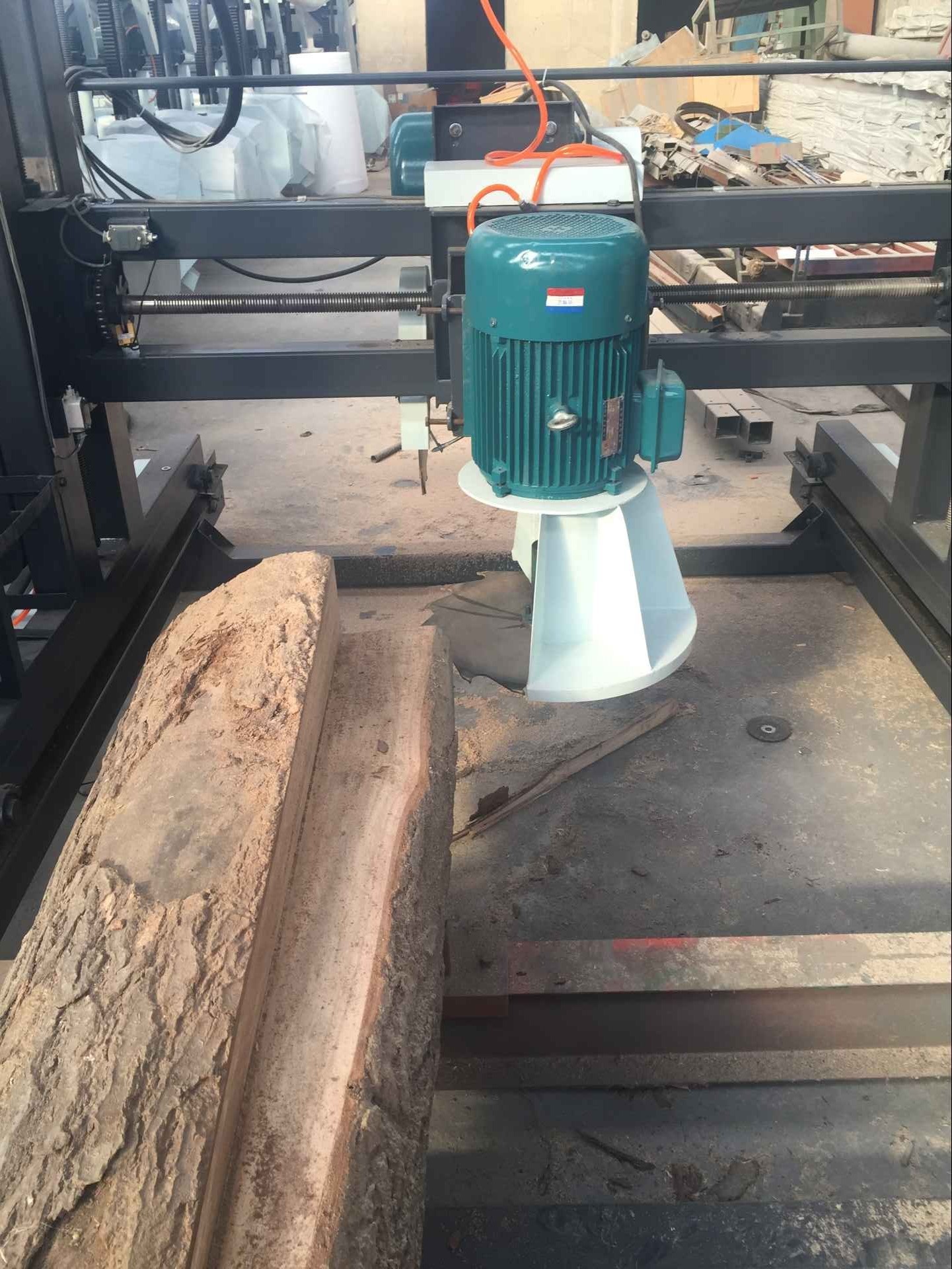

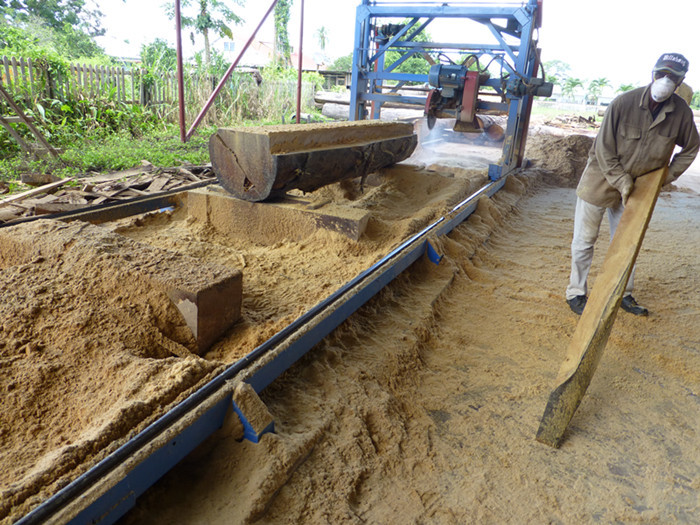

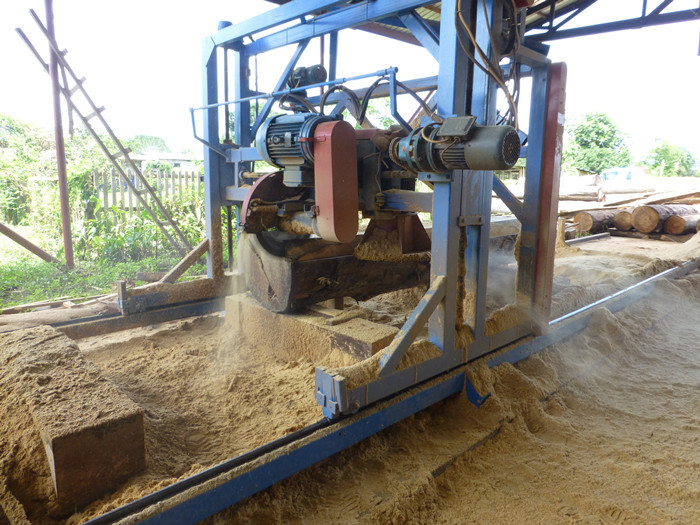

Double Saw blade Angle Circular SawMill
The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
The angle circular saw is a machinethat:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric invertor crane, computer touch screen for length calculation and remote control.
|
Technical Parameter |
DS700 | DS1300 | DS1300A | DS2000 | DS2000A |
|
Max Sawing Wood Diameter |
700MM | 1300MM | 1300MM | 2000MM | 2000MM |
|
Max Sawing Wood Size |
150*150MM | 210 * 210MM | 300*210MM | 210*210MM | 300*210MM |
|
Saw Blade Diameter |
2*424MM | 2*546MM |
1*760mm, 1*546mm |
2*546MM |
1*760mm 1*546mm |
|
Motors Power(KW)
|
5.5KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15 KW*1 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15KW*1 1.1KW*3 |
|
Max Swing Wood Length |
6 Meters | 6 Meters | 6 Meters | 6 Meters | 6 Meters |
|
Machine weight |
1500KG | 2000KG | 2500KG | 2700KG | 3000KG |
