    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: DS2000, DS1300, DS700

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $6,700 - 14,800 / Set
    Packaging Details: container loading
    Delivery Time: within 25 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Name: Angle Circular Swing Blade Sawmill Condition: New
    Max. Sawn Timber Size: 300mm X 210mm Carbide Circular Blade Diameter: 760mm, 546mm
    Electric Motor: 22KW, 15kw, 380v/3phase Or As Customer Needs Log Feeding: Frequency Auto Feeding

    Double Saw blade Angle Circular SawMill

    • The Double Saw Blade Angle Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
    • The Blades enables cutting in both directions,which considerably increases the cutting capacity.
    • Quick and accurate electronic positioning guarantee invariable high productivity and safety at work.
    • The angle circular saw is a machinethat:
    • Produces lumber with saw-cut dimension accuracy up to ± 1mm
    • Produces lumber of excellent surface quality
    • Results in very low operational costs
    • Electric invertor crane, computer touch screen for length calculation and remote control.

    Specification:

    • Max. sawing timber size : 300mm x 210mm
    • Carbide circular blade diameter : 760mm , 546mm
    • Log feeding : frequency auto feeding
    Technical Parameter DS700 DS1300 DS2000
    Max Sawing Wood Diameter 700MM 1300MM 2000MM
    Max Sawing Wood Size 150*150MM 210 * 210MM 300*210MM
    Saw Blade Diameter 2*424MM 2*546MM

    1*760mm

    1*546mm

    Motors Power(KW)

    11KW*2,

    1.1KW*3

    15KW*2,

    1.5KW*3

    22KW*1,

    15KW*1

    2.2KW*3

    Max Swing Wood Length 6 Meters 6 Meters 6 Meters
    Machine weight 1500KG 2000KG 3000KG

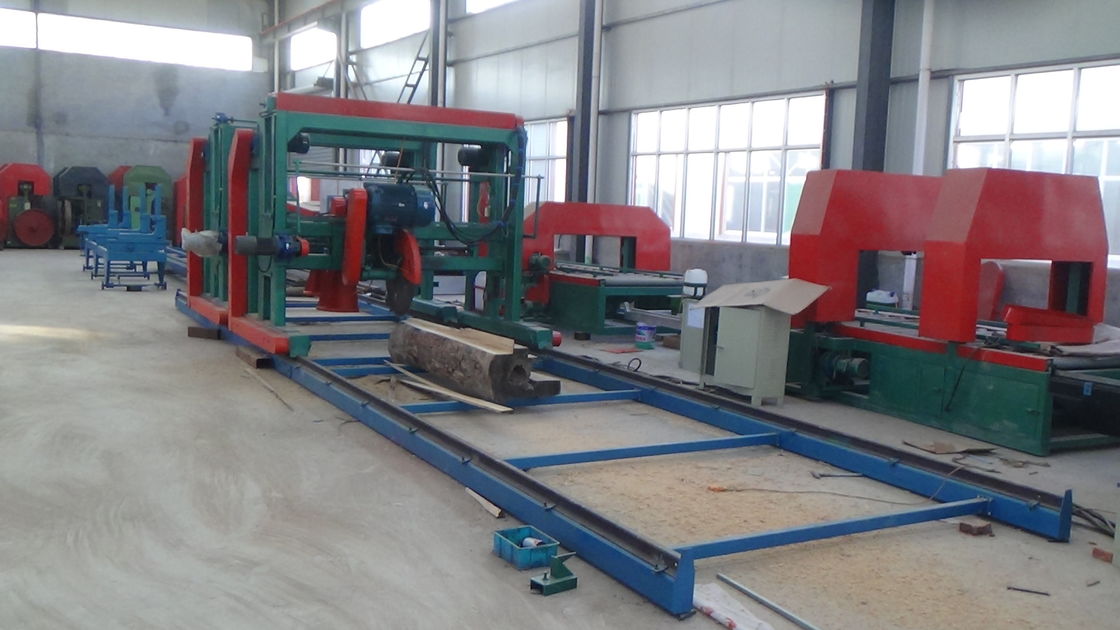

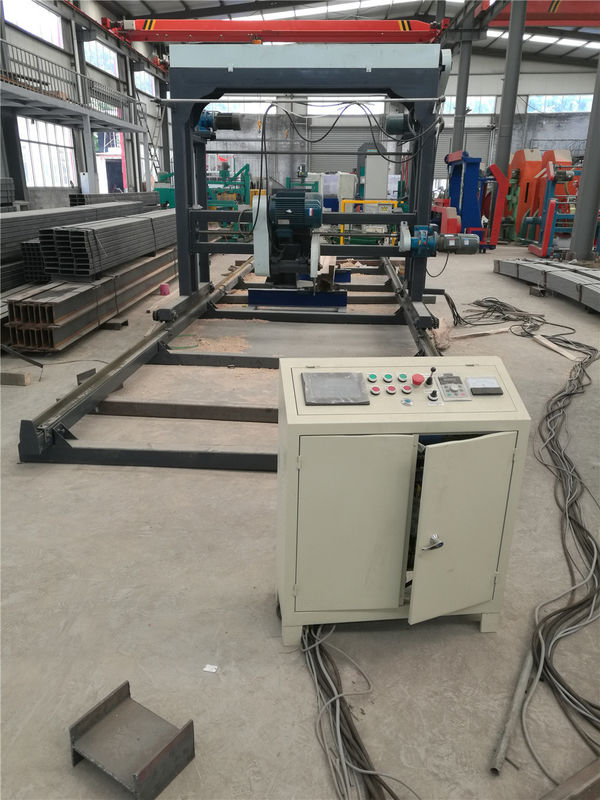

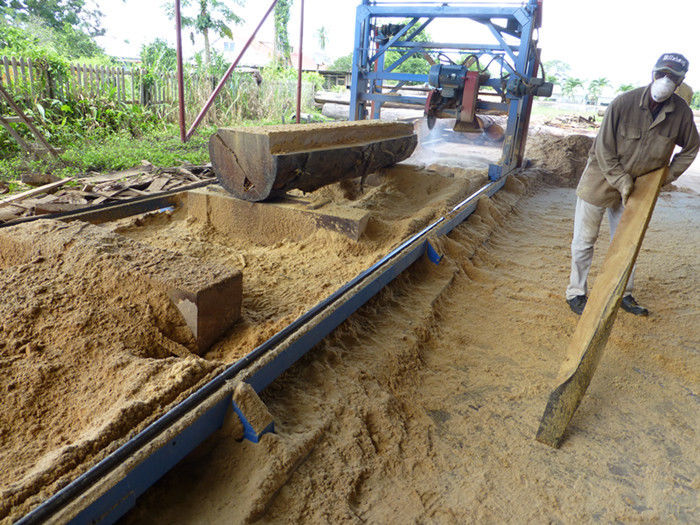

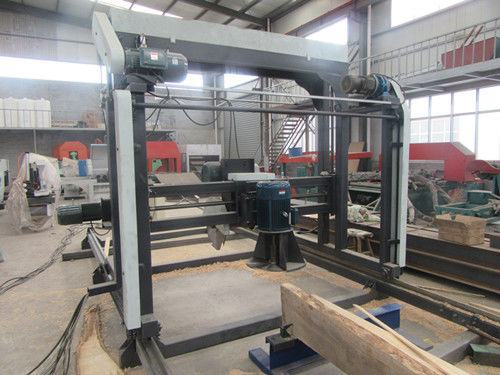

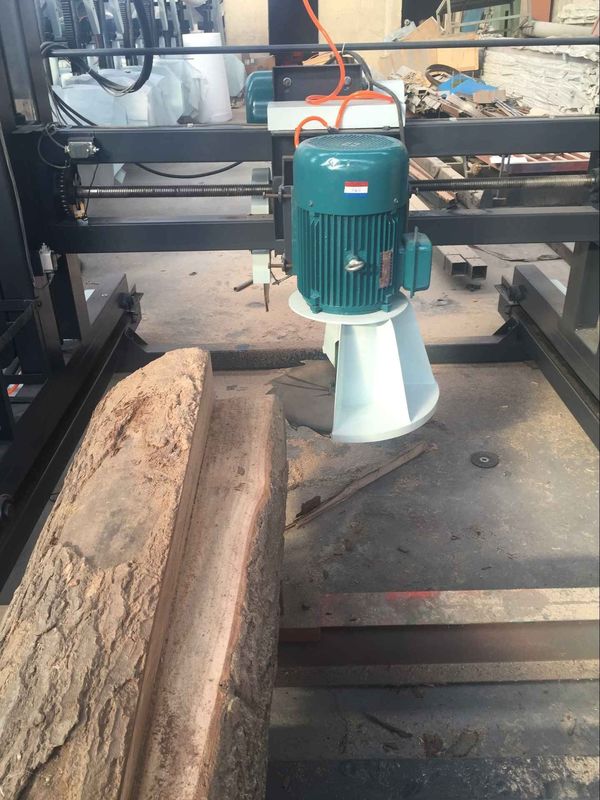

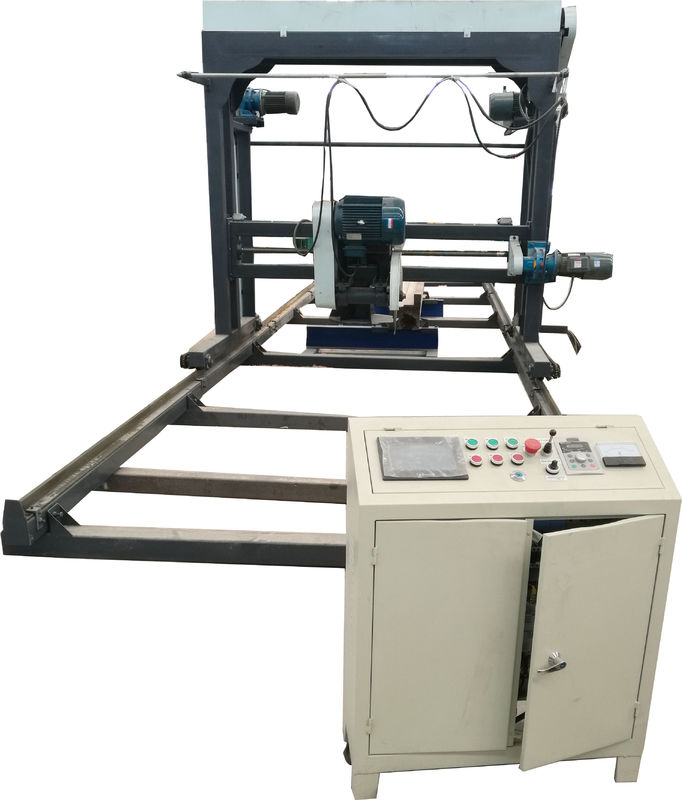

    Photos:

    Swing Blade Sawmill Double Saw Blades Circular Saw Machines Portable SawmillSwing Blade Sawmill Double Saw Blades Circular Saw Machines Portable Sawmill
