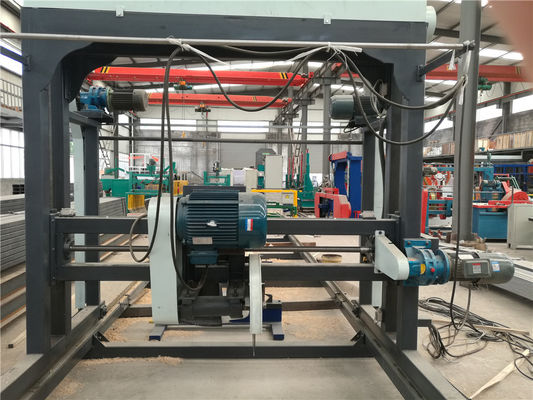

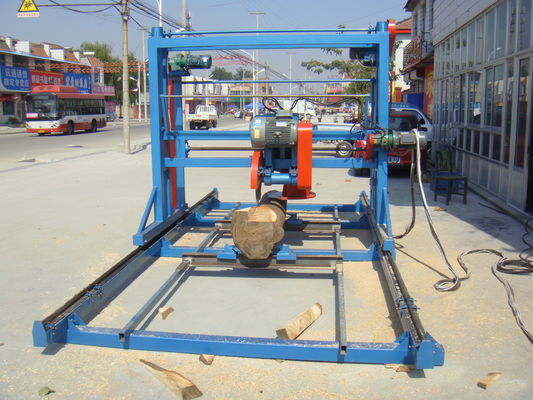

Double Blades Angle Circular Saw Mill
Introduction :
1). The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
2). The Blades enables cutting in both directions,which considerably increases the cutting capacity.
3). Quick and accurate electronic positioning guarantee invariable high productivity and safety.
4). The angle circular saw is a machine that:
5). Produces lumber with saw-cut dimension accuracy up to ± 1mm
6). Produces lumber of excellent surface quality
7). Results in very low operational costs

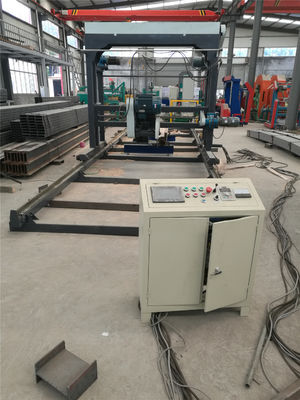

8). Electric inverter crane,touch screen for length calculation and remote control.
Working video link : https://youtu.be/HZ9SHLVnE8I
Technical Specifications:
| Model | DS700 | DS1300 | DS1300A | DS2000 | DS2000A |
| Max Sawing Wood Diameter | 700MM | 1300MM | 1300MM | 2000MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM | 210*210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm, 1*546mm |
2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) |
5.5KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15 KW*1 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1, 15KW*1 1.1KW*3 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 2500KG | 2700KG |
3000KG |
