DS2000 Circular Blade Saw Mill Swing Blade Timber Cutting Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DS2000, DS1300, DS700 |
| Minimum Order Quantity | 1 SET Portable swing blade sawmill |
| Price | US $6,700 - 14,800 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Portable Swing Blade Sawmill For Timber Cutting | Condition | New |
|---|---|---|---|
| Type | Circular Saw | Max. Sawing Timber Size | 300x210mm, 210x210mm, 150x150mm |
| Sawing Wood Length | 6meters Or As Customer Needs | Controlling System | PLC Automacit Control |
| Feeding | Inverter | Main Motor | 22kw, 15kw, 11kw X 2sets |
| Voltage | 380v,3phase,50hz Or As Customer Needs | Warranty | 12 Months |
| High Light | DS2000 Circular Blade Saw Mill,Swing Blade Timber Cutting Machine,DS2000 Timber Cutting Machine |
||
Product Description

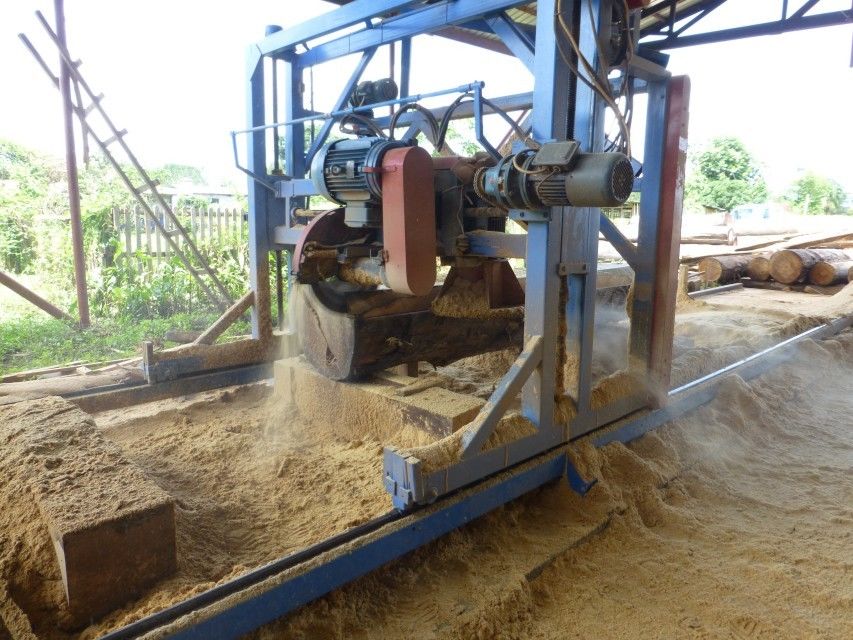

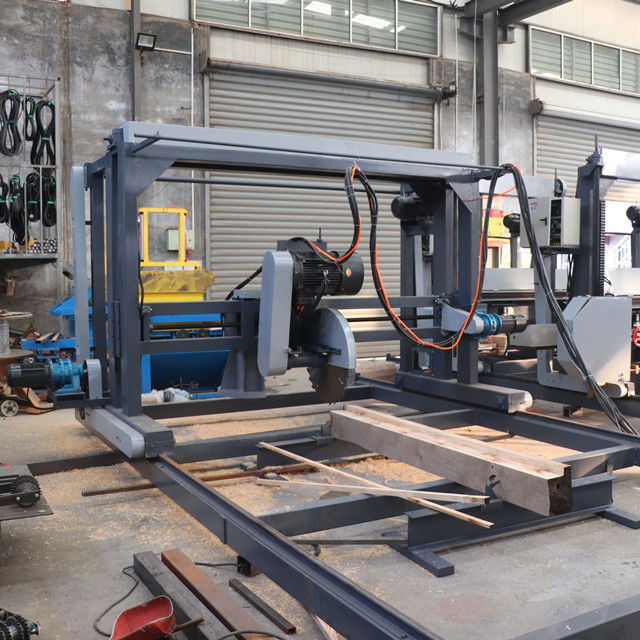

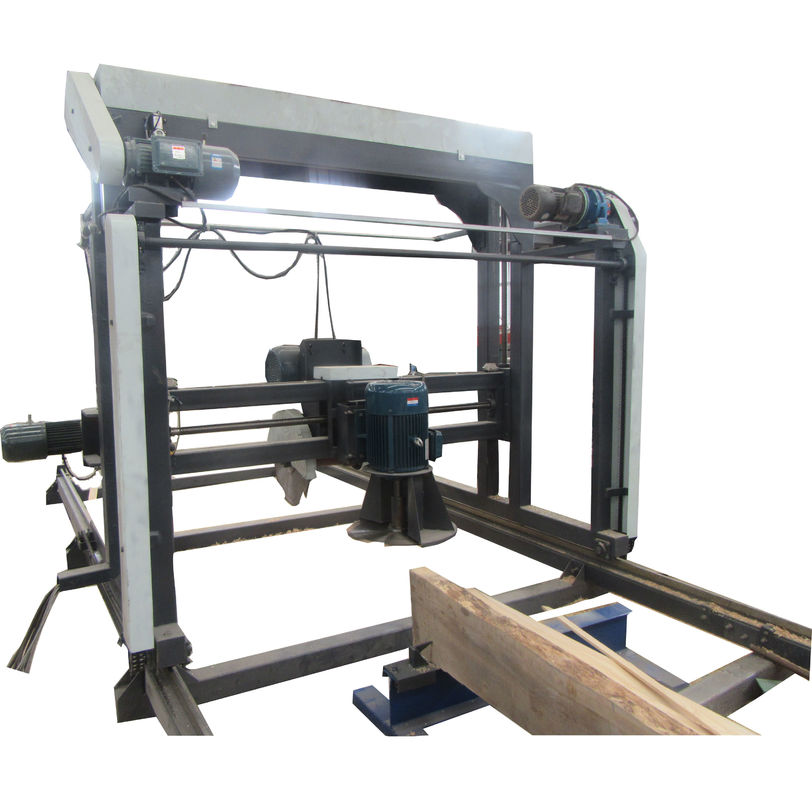

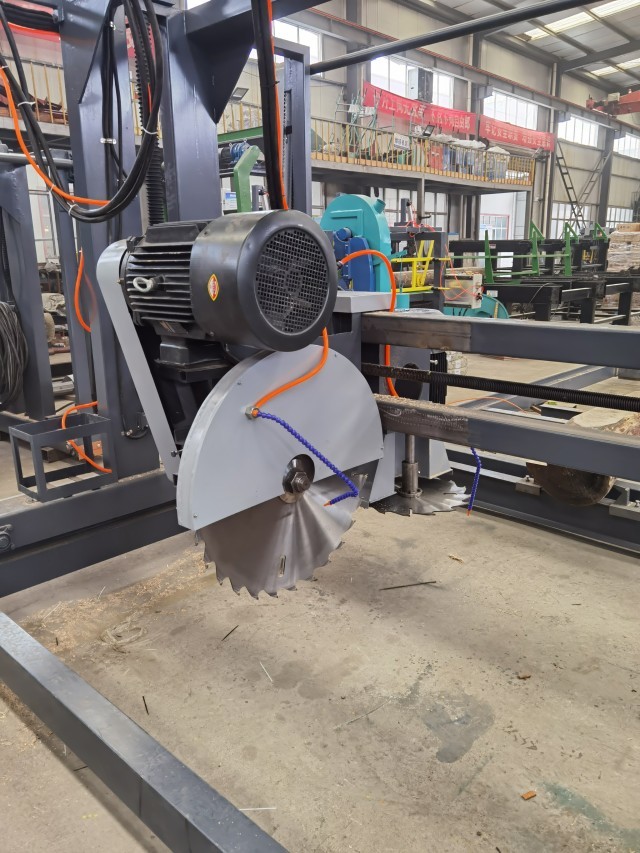

DS2000 Wood Circular Blade Saw mill Portable Swing Blade Sawmill with big motors power
Double Blades Angle Circular Saw Mill
- The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
- The Blades enables cutting in both directions,which considerably increases the cutting capacity.
- Quick and accurate electronic positioning guarantee invariable high productivity and safety.
- The angle circular saw is a machine that:
- Produces lumber with saw-cut dimension accuracy up to ± 1mm
- Produces lumber of excellent surface quality
- Results in very low operational costs
- Electric inverter crane,touch screen for length calculation and remote control.
Specification:
- Max. sawing timber size : 300mm x 210mm
- Carbide circular blade diameter : 760mm , 546mm
- Log feeding : frequency auto feeding
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM |
1*760mm 1*546mm |
| Motors Power(KW) | 11KW*2, 1.5KW*2, 2.2kw x 1 |
15KW*2, 1.5KW*1 2.2kw *1,3kw *1 |
22KW*1, 15KW*1 1.5KW*1 ,2.2kw *1 3kw *1 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |
