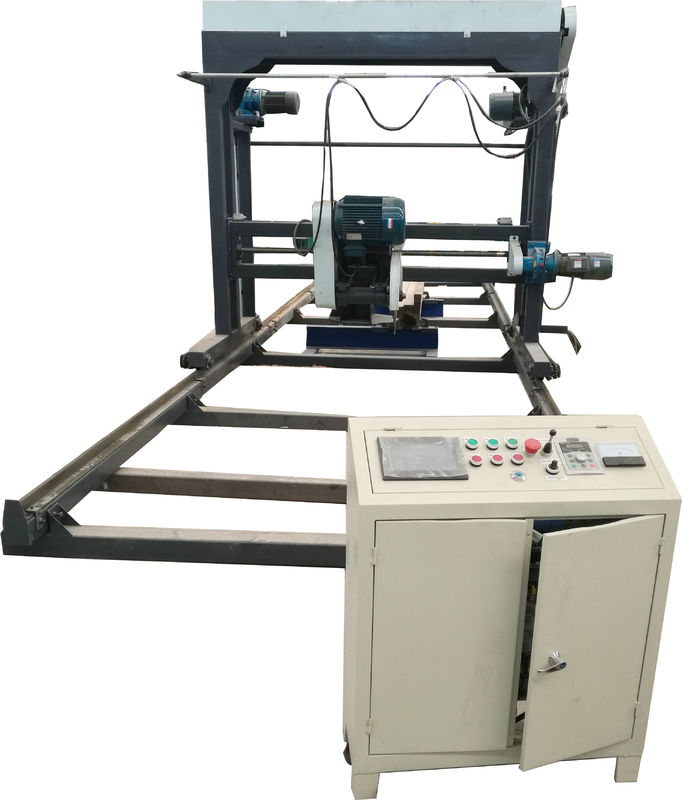

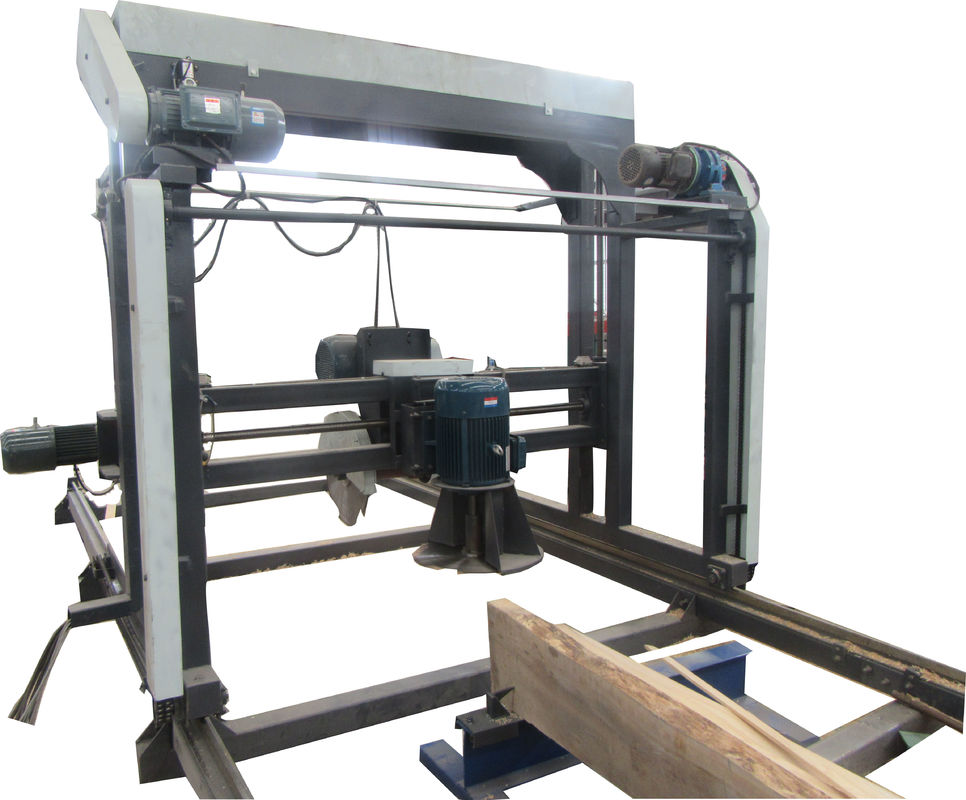

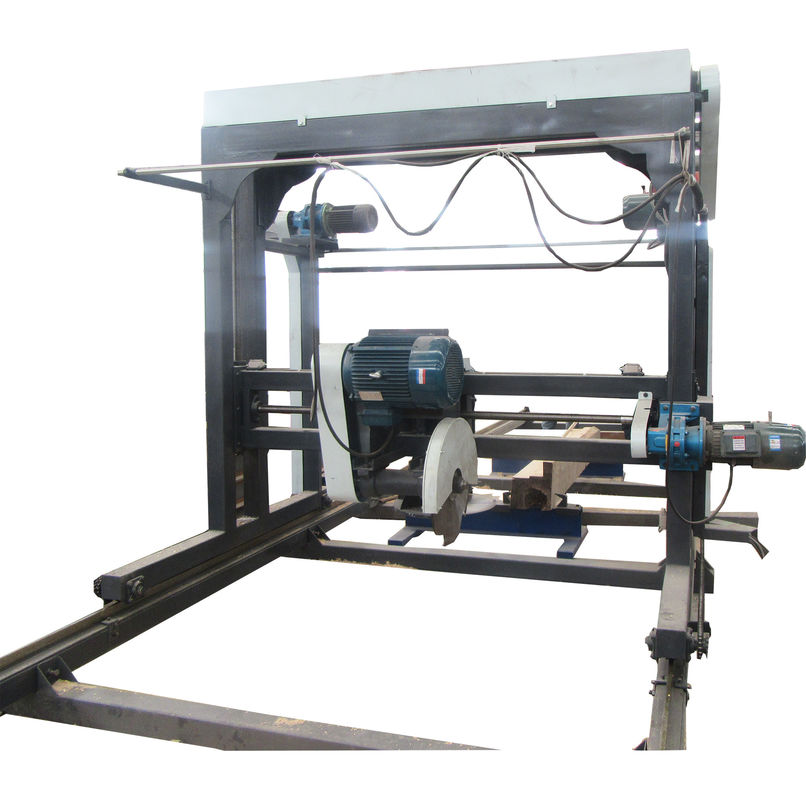

Double Blades Angle Circular Saw Mill
The Sawmill is a versatile machine for the radial lumber, Pooh flooring material,carpenter lumber and palette lath production.
The Blades enables cutting in both directions,which considerably increases the cutting capacity.
Quick and accurate electronic positioning guarantee invariable high productivity and safety.
The angle circular saw is a machine that:
Produces lumber with saw-cut dimension accuracy up to ± 1mm
Produces lumber of excellent surface quality
Results in very low operational costs
Electric inverter crane,touch screen for length calculation and remote control.
| Technical Parameter | DS700 | DS1300 | DS2000 |
| Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
| Max Sawing Wood Size | 150*150MM | 210 * 210MM | 210*210MM |
| Saw Blade Diameter | 2*424MM | 2*546MM | 2*546MM |
| Motors Power(KW) |
11KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1,15KW *1 1.1KW*3 |
| Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
| Machine weight | 1500KG | 2000KG | 3000KG |
