Wood Saw Machine, Wood Boards Edger Saw Machines with auto feeding, Slab Saw
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | EG600A, EG800, EG1000 |
| Minimum Order Quantity | 1 SET |
| Price | US $2,900 - 9,000 / Set |
| Packaging Details | iron frame packaging for Wood Boards Edger Saw Machine |
| Delivery Time | within 15 days for Wood Boards Edger Saw Machine |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Boards Edger Saw Machine | Max. Sawing Width | 600mm, 800mm, Etc |
|---|---|---|---|
| Sawing Height | 20mm To 70mm Or As Customer Needs | Feeding | Frequency Speed Adjustable |
| Voltage | 380V/50HZ/3phase Or As Customer Needs | Power(W) | 15kw |
| Blade Movement | One Blade Fixed, Another Movable | Control | Electric Button And Foot Switch |
| Cutting Positioning | Laser Positioning | After Sales Service | Video Technical Support |
Product Description
Twin Blades Wood Board Edger/border cutting saw machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
5. Feeding: frequency speed adjustable auto feeding
6. Max. sawing width: 600mm or as customer needs
7. Max. sawing thickness : 70mm
Technical data :
| Technical parameters | EG600A |
| cutting max. width | 600mm |
| cutting min. width | 50mm |
| sawn max. thickness | 70mm |
| sawn min. thickness | 10mm |
| Blade | 2*350mm |
| Feeding method | Automatic feeding conveyor |
| Feed Rate | 20-25m/ minute |
| Power | 15KW electric motor |
| Positioning | Infrared line |
| Machine weight | 800KG |
|
Remarks: One blade is fixed and another blade is movable. Can cut both sides at same time. Mobile wheels are workable |
|

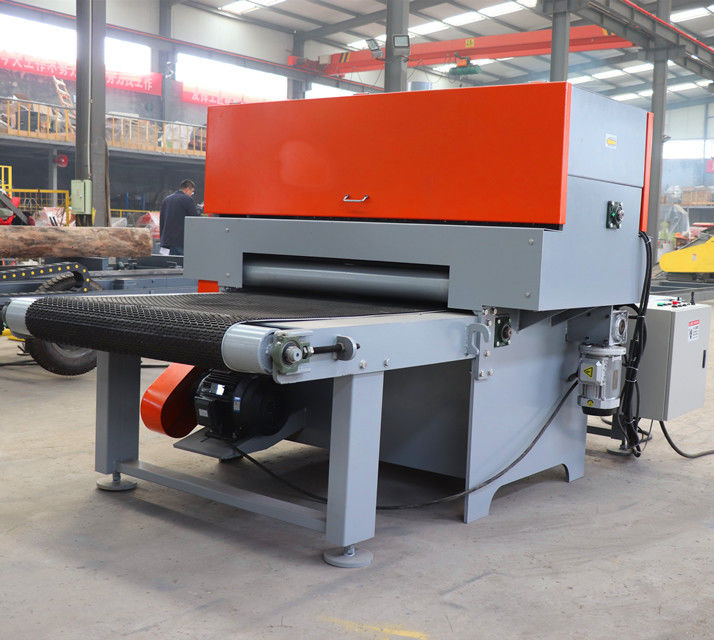

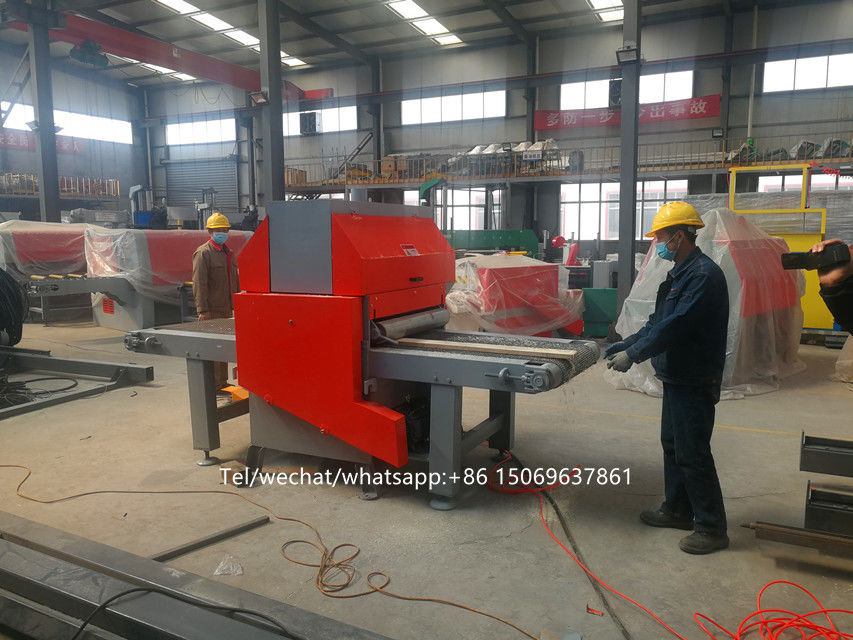

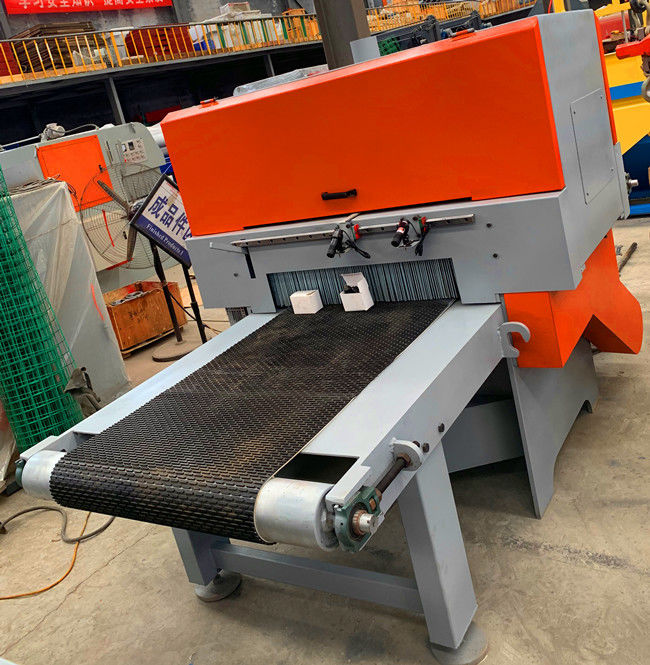

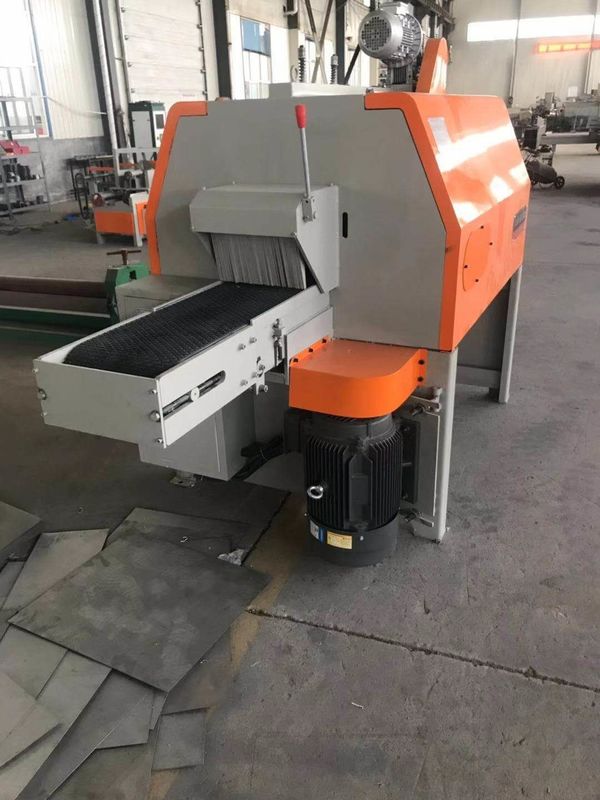

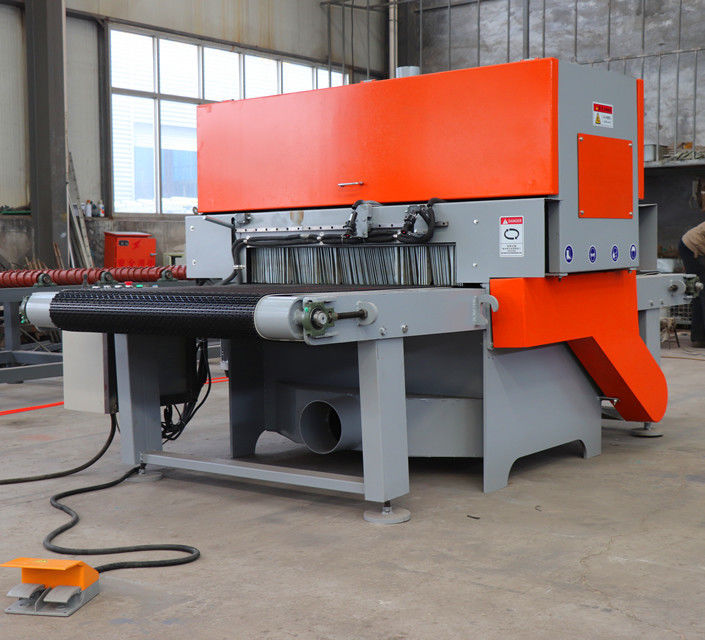

Photos:
Related Products
Wood Board Edger Saw for big size planks
Multi Blades Rip Saw/Woob Boards Edger Saw
Introduction:
- with Infrared positioning
- for board edges cutting
- sawing planks into small pcs
- easy usage, no installation
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
