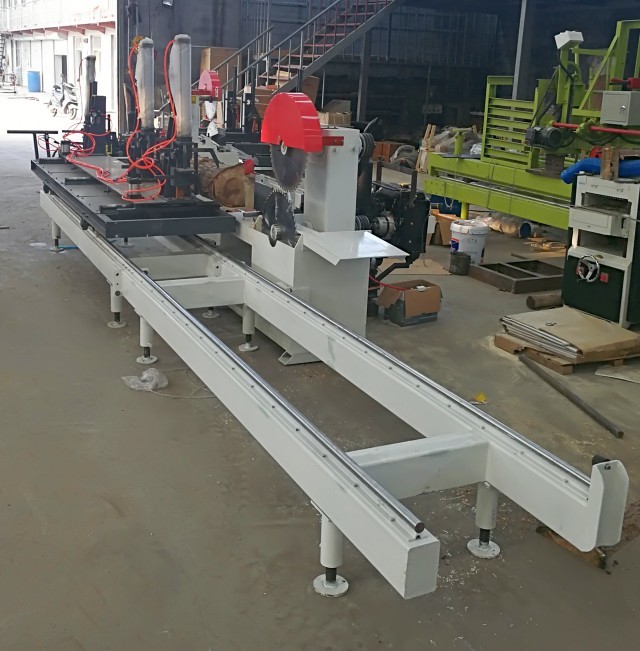

Twin Blades Circular Sliding Table Sawmill
Technical Data of Manual type
Model | TT1500 | TT2500 | TT3000 |
Max Sawing Wood Diameter
|
400mm | 400mm | 400mm |
Max Sawing Wood Length
|
1500mm | 2500mm | 3000mm |
Saw Blade Diameter
|
500mm | 500mm | 500mm |
Motor Power
|
7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
Rail Length
|
3000mm | 5000mm | 5800mm |
Wood Fasten Model
|
Pneumatic | Pneumatic | Pneumatic |
Carriage Rail Model
|
Linear Axis | Linear Axis | Linear Axis |
Wood Sliding Table Sawmill (Computer Type)
Model | CT1500 | CT2000 | CT3000 |
Max Sawing Wood Diameter | 400mm | 400mm | 400mm |
Max Sawing Wood Length | 1500mm | 2000mm | 3000mm |
Saw Blade Diameter | 500mm | 500mm | 500mm |
Motor Power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
Rail Length | 3500mm | 5000mm | 6500mm |
Wood Fasten Model | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
Carriage Rail Model | Linear Axis | Linear Axis | Linear Axis |
Feeding mode | Electric frequency variable speed adjustable | ||
Operation | PLC touching screen automatic operation |
Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.When cutting very hardwood we can increase motor power as customer needs .
Optional Parts - loading deck
Designed to saw mahogany sanders,teak, rosewood in African and South American.
The blade is 1.2 meters diameter,made of Japanese hard alloy,easy to polish.
The power can be generated from electricity or electric start diesel engine.
The machine is easy to operate and high efficiency.
Technical specifications:
Model |
PCY3000-3
|
PCY4000-4
|
PCY5000-5
|
Max. Sawing Log Diameter |
500mm
|
500mm
|
500mm
|
Motor Power |
22kw
|
22kw
|
22kw
|
Carriage Walking(forward, back) |
manual
|
manual
|
manual
|
Carriage Stake Quantity |
3sets
|
4sets
|
4sets
|
Carriage Length |
3meters
|
4meters
|
5meters
|
Max Sawing Wood Length |
4meters
|
5meters
|
6meters
|
Rail Length |
9meters
|
11meters
|
11meters
|
Machine Weight |
1500kg
|
1800kgs
|
2000kgs
|
Note: Circular Saw Blade : 1.2 Meters Diameter 36 Teeth Hard Alloy Circular Saw Blade | |||
Option 1:Change to Electric forward and backward. Option 2:Change Electric start diesel engine. Option 3:Add Conveyor |
