500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting

  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
  • 500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number CT1500, CT2000,CT3000, etc
Minimum Order Quantity 1 SET wood slidint table saw
Price US $2,500 - 9,800 / Set
Packaging Details iron made frame pallet
Delivery Time within 15 days
Payment Terms T/T, L/C, Western Union
Supply Ability 2000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Twin Blades Circular Sawmill Machine Cutting Log Dia. No More Than 480mm Or 19''
Max. Cutting Log Length 1.5meters, 2meters, 3meters Carriage Walking Forward/back Frequency Auto Walking
Main Electric Motor 7.5kw X 2sets Walking Motor 1.5kw
Voltage 380v/3phase Or As Customer Needs Circular Blade Diameter 500mm
Warranty 12 Months After-sales Service Video Technical Support, Spare Parts
High Light

Portable Circular Sawmill Machine

,

500mm Portable Circular Sawmill

,

500mm Circular Sawmill Machine
Leave a Message
Product Description

Automatic Circular sawmill sawing machine with log carriage for wood hard logs cutting



Twin Blades Circular Sawmill with Log Carriage

  • The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
  • The circular saw blade can avoid band saw blade bending,or dig hole on wood.
  • The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
  • The production capacity is more than 4 timers than band sawmill.
  • The specification is adjustable,Convenient to move the running rule,accuracy.
  • The track use linear guideway,accuracy,no error,wear resistent.
  • The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.


Computer Type


Model CT1500 CT2000 CT3000
Max Sawing Wood Diameter 400mm 400mm 400mm
Max Sawing Wood Length 1500mm 2000mm 3000mm
Saw Blade Diameter 500mm 500mm 500mm
Motor Power 7.5KW*2 7.5KW*2 7.5KW*2
Rail Length 3500mm 5000mm 6500mm
Wood Fasten Model Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Model Linear Axis Linear Axis Linear Axis
Feeding mode Electric frequency variable speed adjustable
Operation PLC touching screen automatic operation

Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.When cutting very hardwood we can increase motor power as customer needs .
500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting 0

Wood Sliding Table Sawmill (Manual type )


Model

 TT1500 TT2500 TT3000


Max Sawing Wood Diameter

 400mm 400mm 400mm


Max Sawing Wood Length

 1500mm 2500mm 3000mm


Saw Blade Diameter

 500mm 500mm 500mm


Motor Power

 7.5KW*2 7.5KW*2 7.5KW*2


Rail Length

 3000mm 5000mm 5800mm


Wood Fasten Model

 Pneumatic Pneumatic Pneumatic


Carriage Rail Model

 Linear Axis Linear Axis Linear Axis



500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting 1
500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting 2500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting 3

Optional -Diesel engine type



Optional -log loading deck and roller conveyor



Related Saw Machine

Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Specifications:



Model

 MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

 700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

 600MM 700MM 700MM 700MM



Sawn Thickness

 2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

 1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

 15KW 18.5KW 22KW 30KW



Lifting Motor Power

 1.5KW 1.5KW 1.5KW 1.5KW



Total Weight (KG)

 1100 1100 1300 1500



Detailed Images of stanard model:

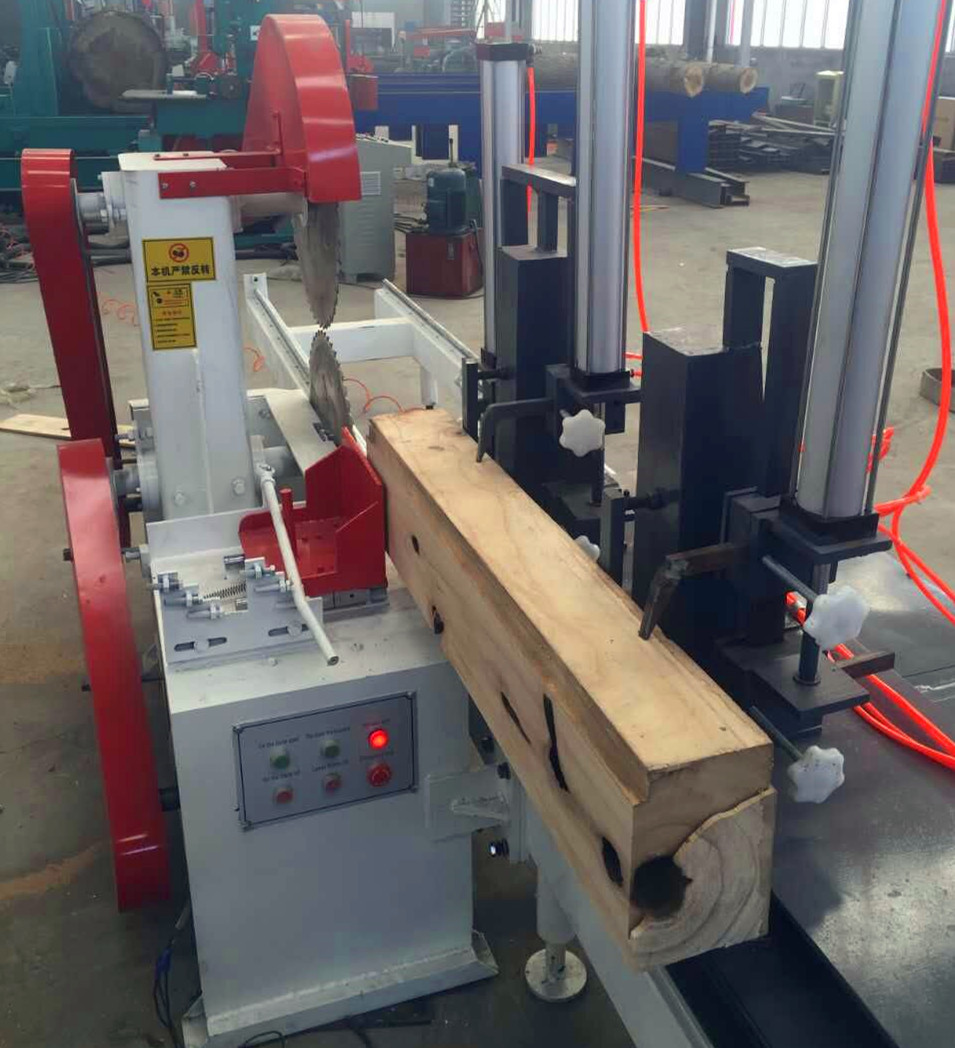

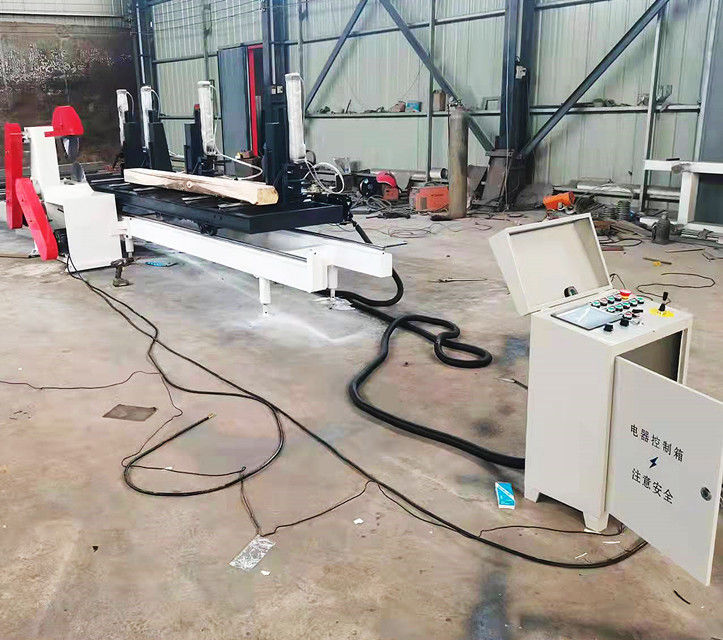

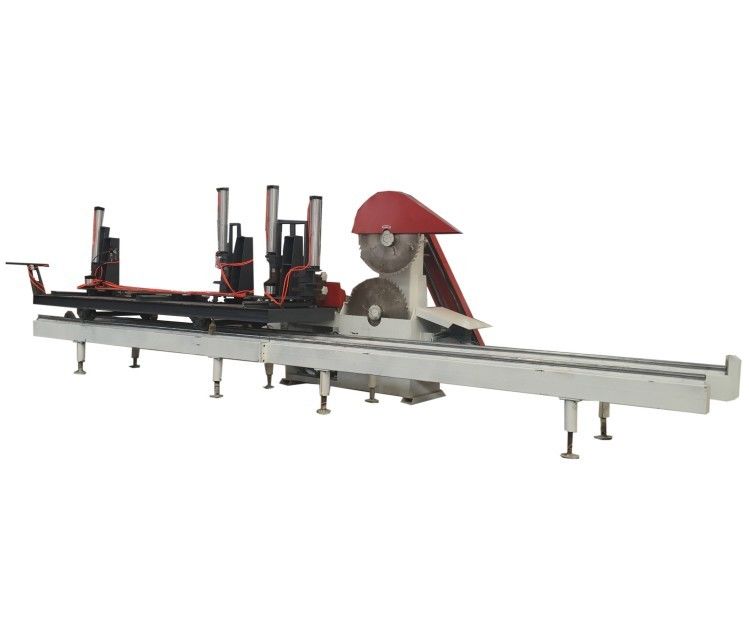

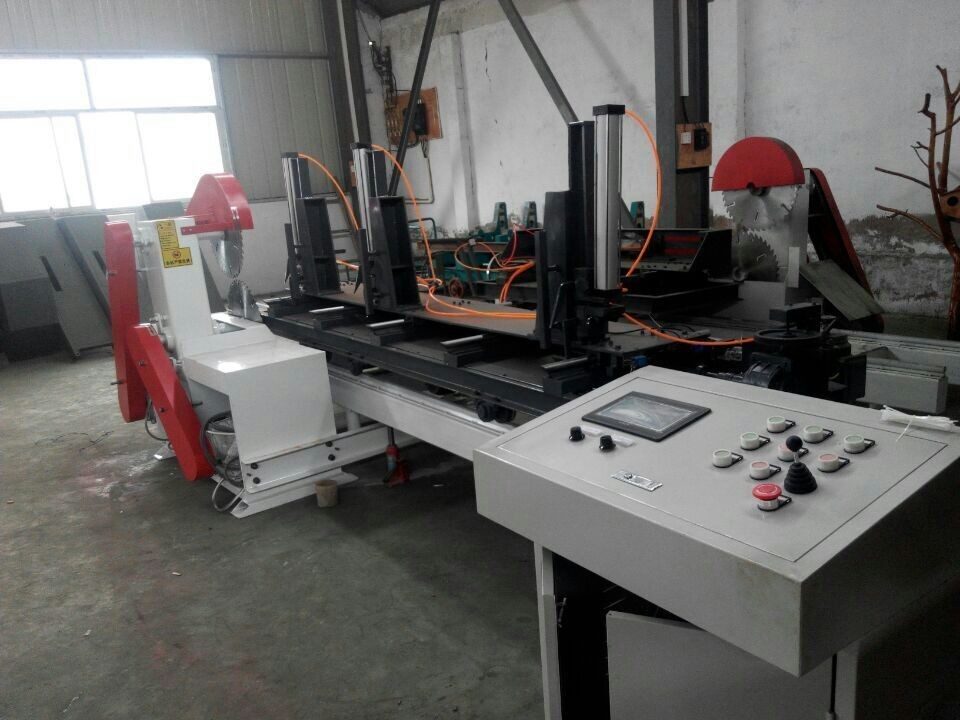

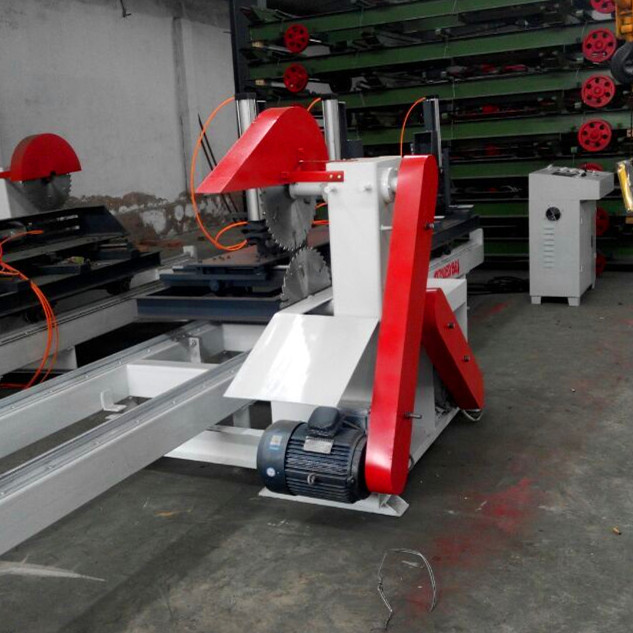

500mm Portable Circular Sawmill Machine With Log Carriage For Wood Hard Logs Cutting 4
