TT1500 Manual type wood sliding table sawmill Electrical Circular saws machine

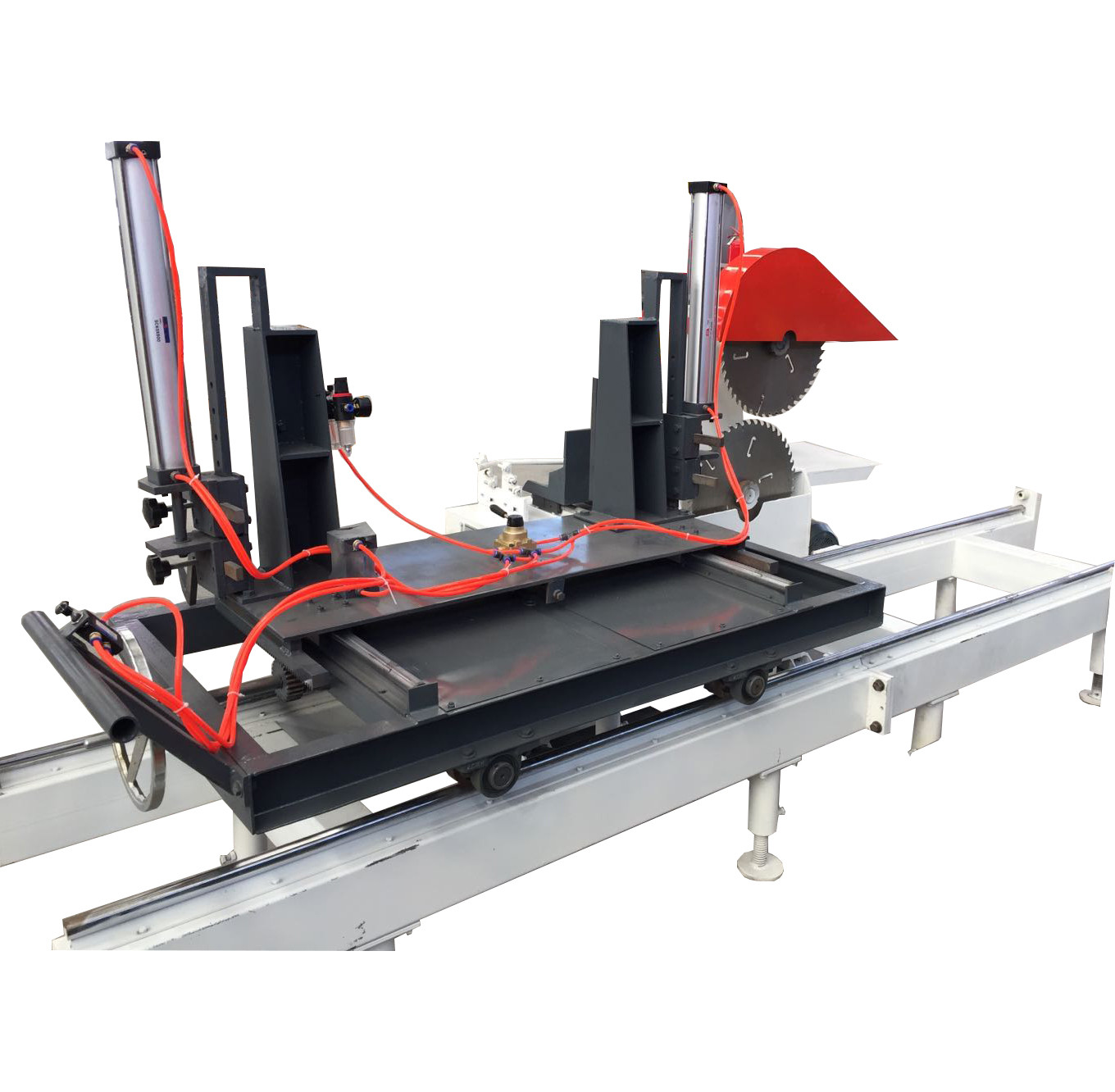

Wood Sliding Table Sawmill (Manual type )
Introduction:
Specification:
| Model | TT1500 | TT2000 | TT3000 |
| Max Sawing Wood Diameter | 400mm | 400mm | 400mm |
| Max Sawing Wood Length | 1500mm | 2000mm | 3000mm |
| Saw Blade Diameter | 500mm | 500mm | 500mm |
| Motor Power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
| Rail Length | 3500mm | 5000mm | 6500mm |
| Wood Fasten Model | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Model | Linear Axis | Linear Axis | Linear Axis |
Diesel engine powered circular sawmill:

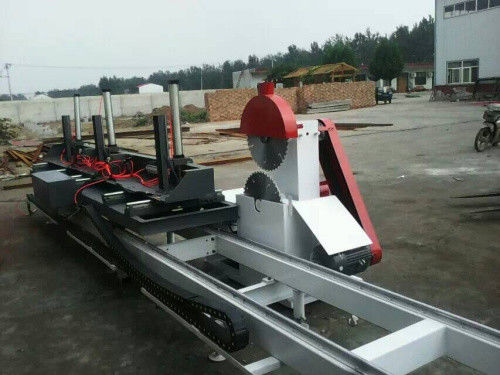

Automatic Woodworking Twin Blades Circular Sawmill - Computer type
Introduction:
1. Standard model, max. Cutting log diameter is 400mm. If log diameter upto 480mm, we also do it.
2. It is frequency variable auto walking. Feeding speed is adjustable.
3. PLC touching screen set sawing sizes.
4. Can change big motor as customer needs.
| model | CT1500 | CT2000 | CT3000 |
| Cut log max. diameter | 400mm | 400mm | 400mm |
| Cut length | 1.5m | 2m | 3m |
| Blade diameter | 500mm | 500mm | 500mm |
| Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
| Track length | 3500mm | 5000mm | 6500mm |
| Log clamping | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
| Feeding mode | frequency control | frequency control | frequency control |
| Setting size mode | Touch screen computer control | Touch screen computer control | Touch screen computer control |
