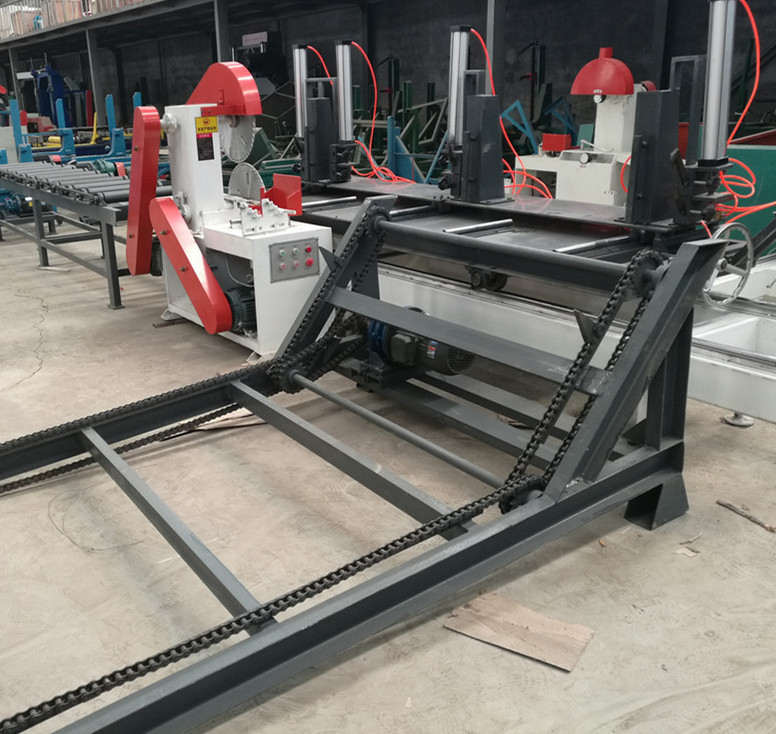

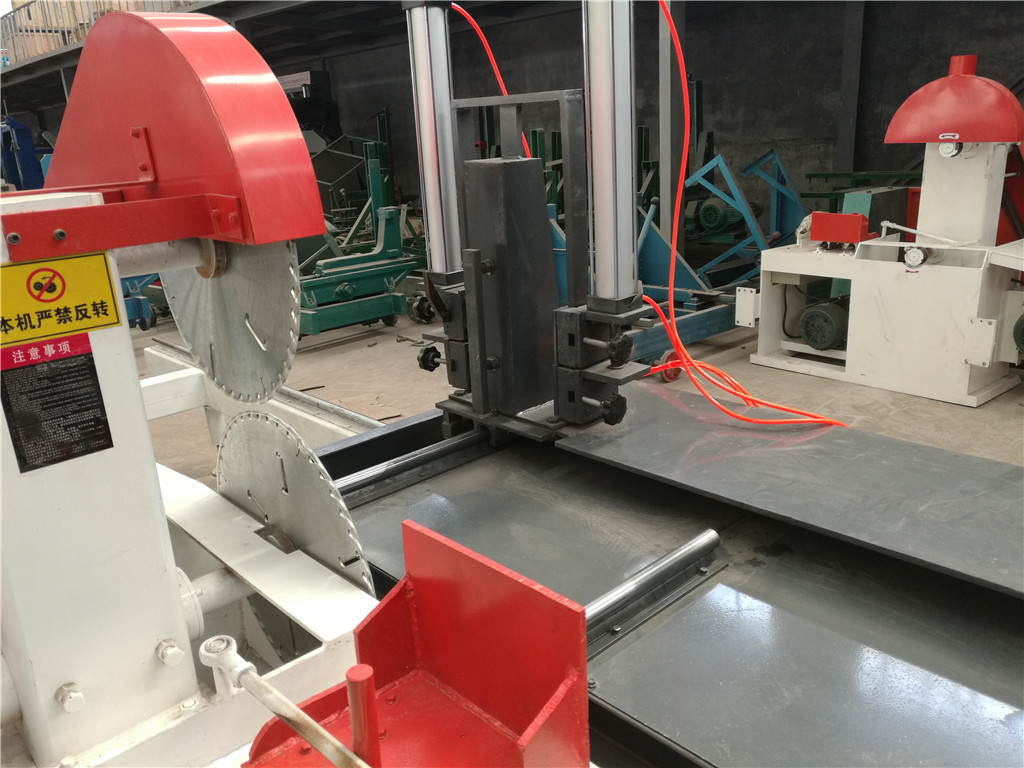

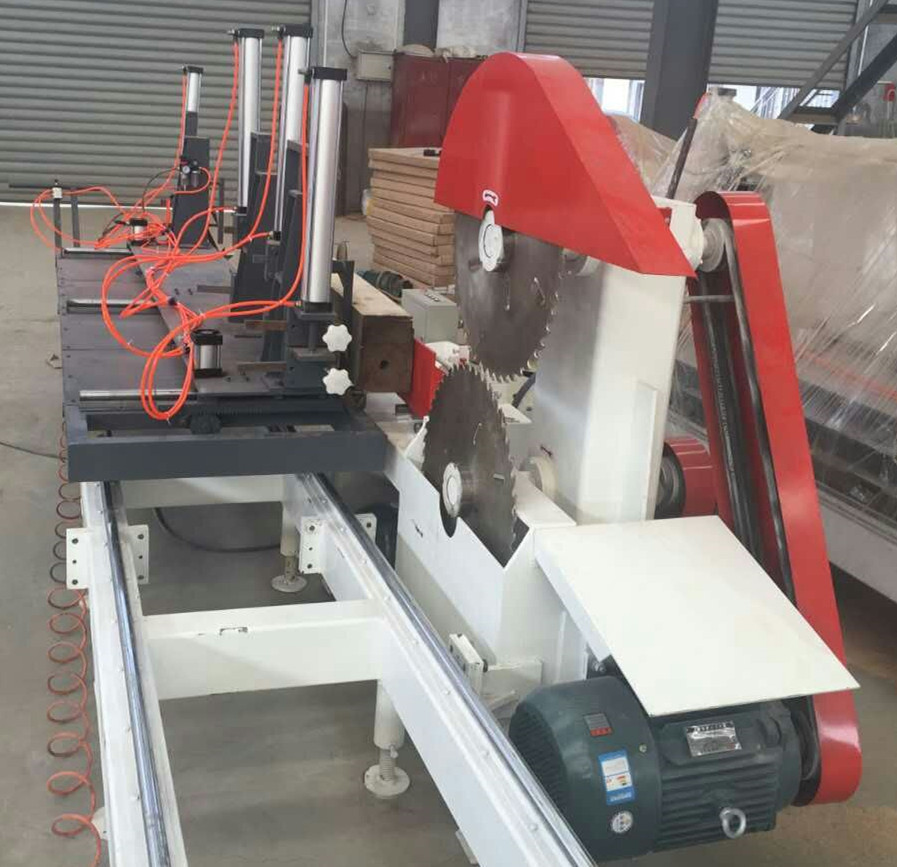

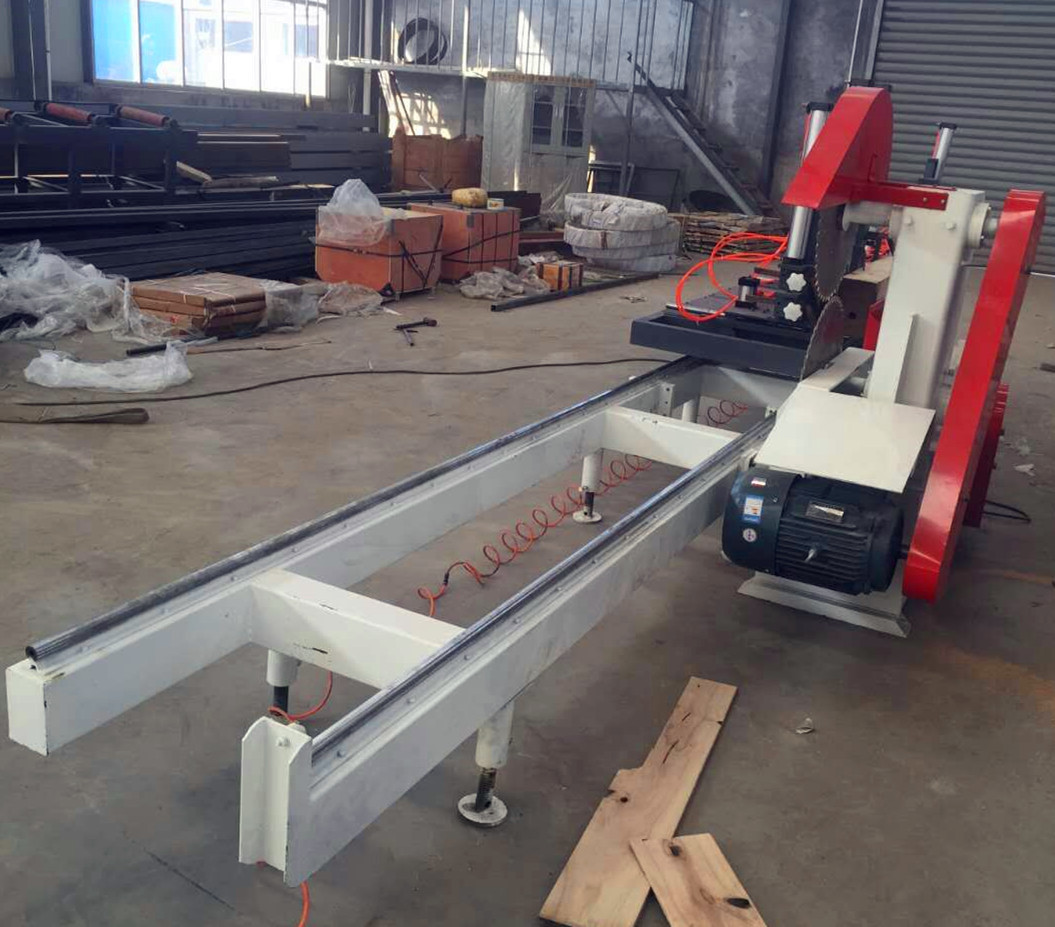

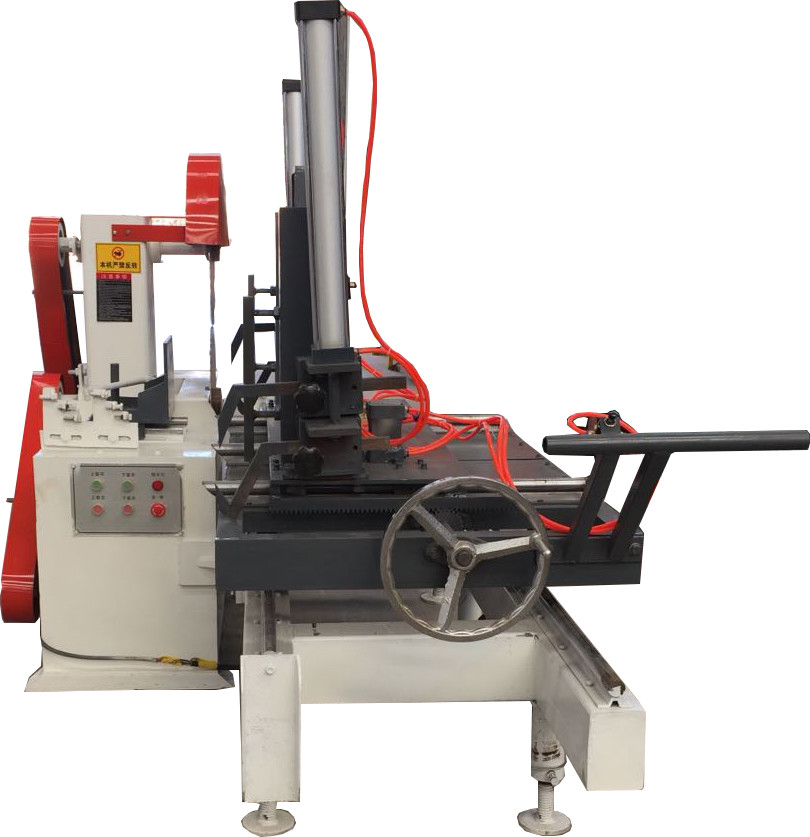

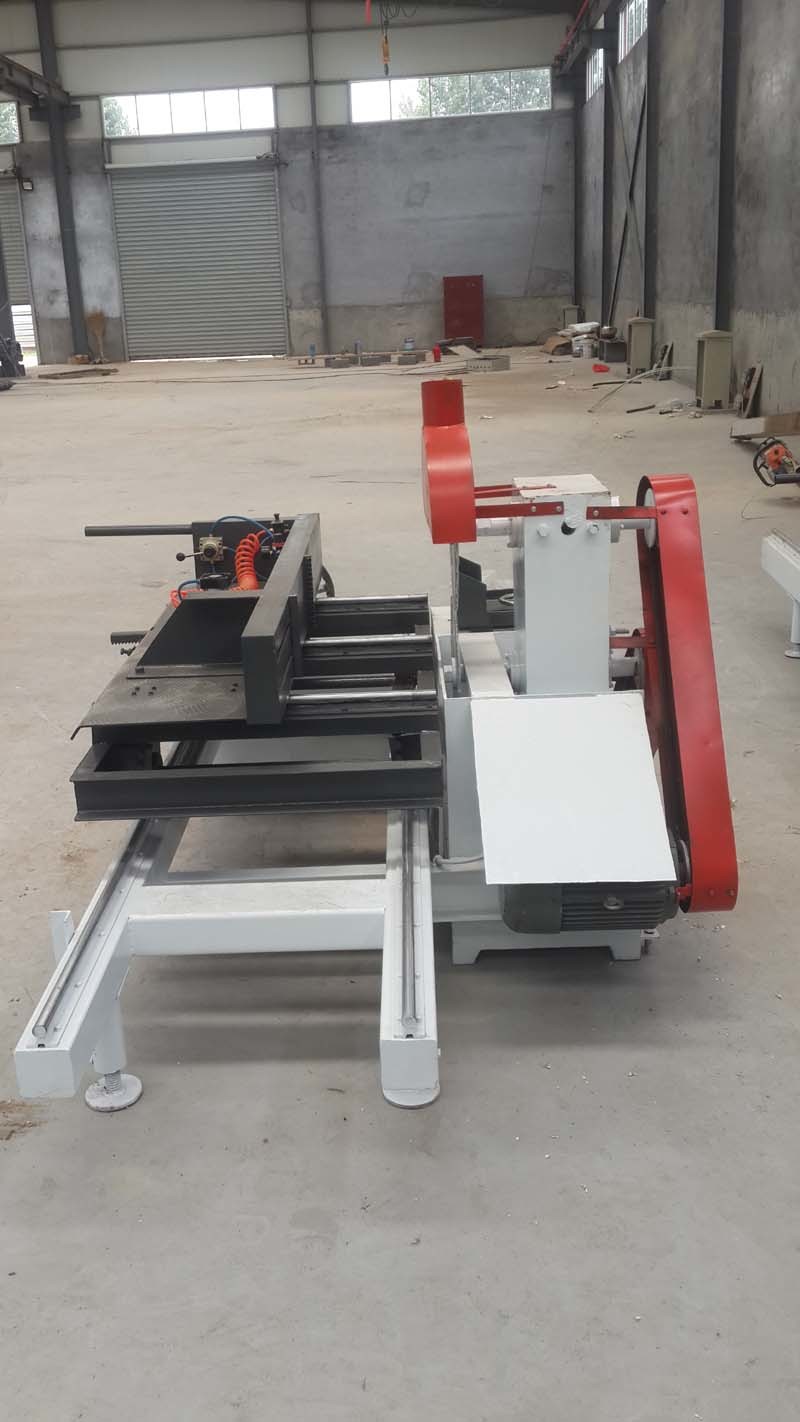

Twin Blades Circular Sliding Table Sawmill
The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
The circular saw blade can avoid band saw blade bending,or dig hole on wood.
The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
The production capacity is more than 4 timers than band sawmill.
The specification is adjustable,Convenient to move the running rule,accuracy.
The track use linear guideway,accuracy,no error,wear resistent.
The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.
Heavy Duty Twin Blades Wood Circular Sawmill with Log Carriage- Electric type
| Model | TT1500 | TT2000 | TT3000 |
|
Max Sawing Wood Diameter
|
400mm | 400mm | 400mm |
|
Max Sawing Wood Length
|
1500mm | 2000mm | 3000mm |
|
Saw Blade Diameter
|
500mm | 500mm | 500mm |
|
Motor Power
|
7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
|
Rail Length
|
3500mm | 5000mm | 6500mm |
|
Wood Fasten Model
|
Pneumatic | Pneumatic | Pneumatic |
|
Carriage Rail Model
|
Linear Axis | Linear Axis | Linear Axis |
Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.Can increase motor power as customer needs .

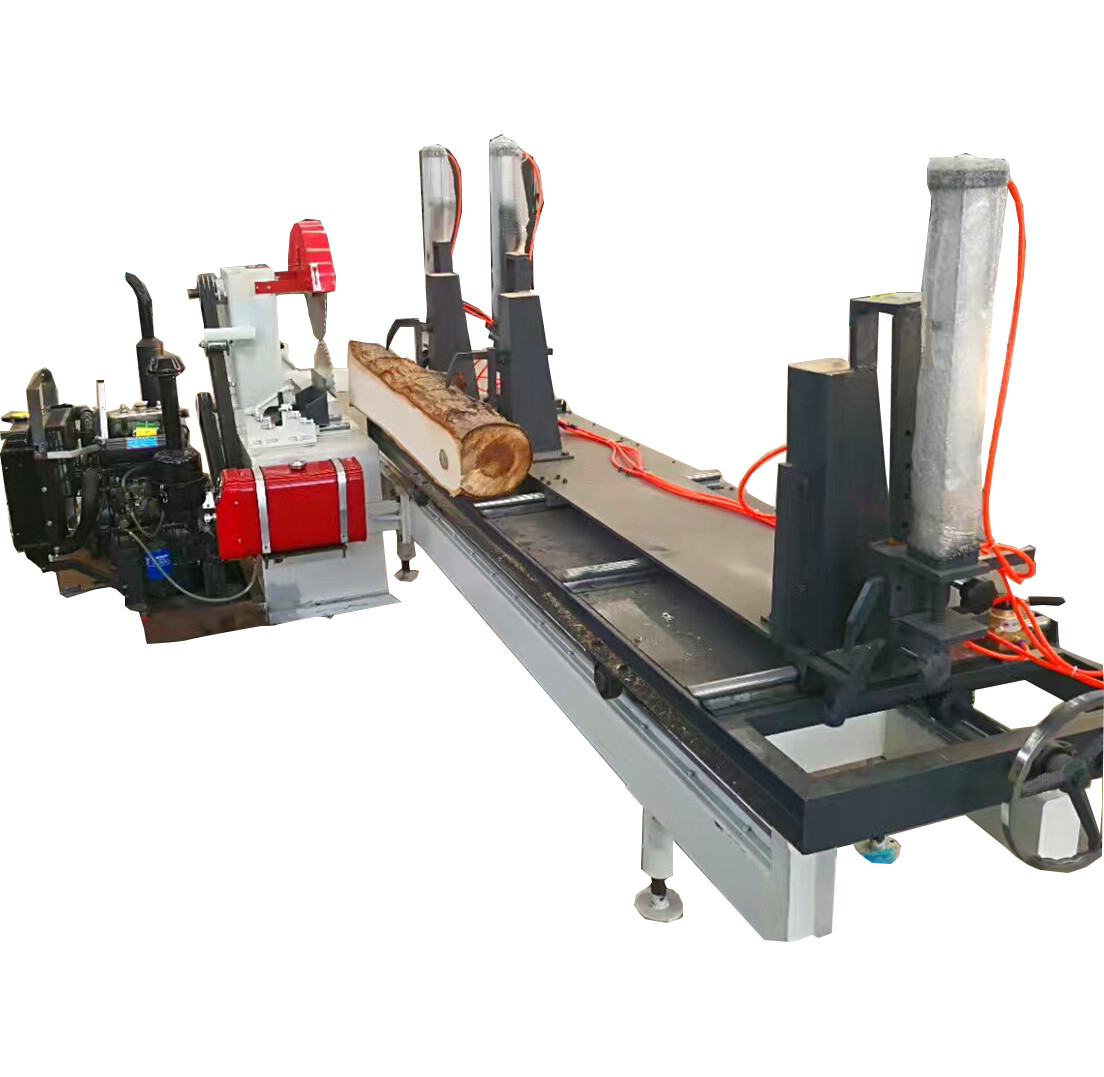

Heavy duty twin blades circular saw with log carriage-Diesel Engine Powered
| model | TTD400-1500 | TTD400-2000 | TTD400-3000 |
| Cut log max. diameter | 40 cm | 40 cm | 40 cm |
| Cut length | 1.5m | 2m | 3m |
| Blade diameter | 500mm | 500mm | 500mm |
| Diesel engine, electric start | 40HP | 40HP | 40HP |
| Track length | 3500mm | 5000mm | 6500mm |
| Log clamping | pneumatic | pneumatic | pneumatic |
| Movement of carriage | manually | manually | manually |
| Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
