| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | TT1500, TT2000,TT3000,CT1500,CT3000 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $3,000 - 9,800 / Set |
| Packaging Details: | iron made frame pallet |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000sets/year |
| Condition: | New | Type: | Circular Saw |
|---|---|---|---|
| Voltage: | 380v/3phase/50HZ Or As Customer Needs | Usage: | Wood Cutting |
| Warranty: | 12 Months | Cutting Log Dia.: | 48CM |
| Operation: | Manual Or Digital Auto Control | Power(W): | 7.5kw X 2 |
| Style: | Vertical | Motor Power: | Electric Or Diesel Engine |
Twin Blades Circular Sliding Table Sawmill
The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
The circular saw blade can avoid band saw blade bending,or dig hole on wood.
The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
The production capacity is more than 4 timers than band sawmill.
The specification is adjustable,Convenient to move the running rule,accuracy.
The track use linear guideway,accuracy,no error,wear resistent.
The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

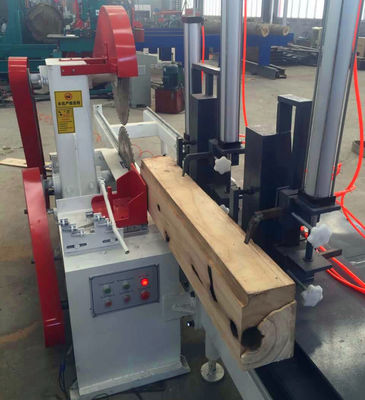

Wood Sliding Table Sawmill (Computer Type)
| Model | CT1500 | CT2000 | CT3000 |
| Max Sawing Wood Diameter | 400mm | 400mm | 400mm |
| Max Sawing Wood Length | 1500mm | 2000mm | 3000mm |
| Saw Blade Diameter | 500mm | 500mm | 500mm |
| Motor Power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
| Rail Length | 3500mm | 5000mm | 6500mm |
| Wood Fasten Model | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Model | Linear Axis | Linear Axis | Linear Axis |
| Feeding mode | Electric frequency variable speed adjustable | ||
| Operation | PLC touching screen automatic operation | ||
Optional part:
1.Maximum sawing log diameter is upto 48cm .
2.When cutting very hardwood we can increase motor power as customer needs .
Wood Sliding Table Sawmill (Manual type )
| Model | TT1500 | TT2000 | TT3000 |
| Max Sawing Wood Diameter | 400mm | 400mm | 400mm |
| Max Sawing Wood Length | 1500mm | 2000mm | 3000mm |
| Saw Blade Diameter | 500mm | 500mm | 500mm |
| Motor Power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
| Rail Length | 3500mm | 5000mm | 6500mm |
| Wood Fasten Model | Pneumatic up/down | Pneumatic up/down | Pneumatic up/down |
| Carriage Rail Model | Linear Axis | Linear Axis | Linear Axis |
