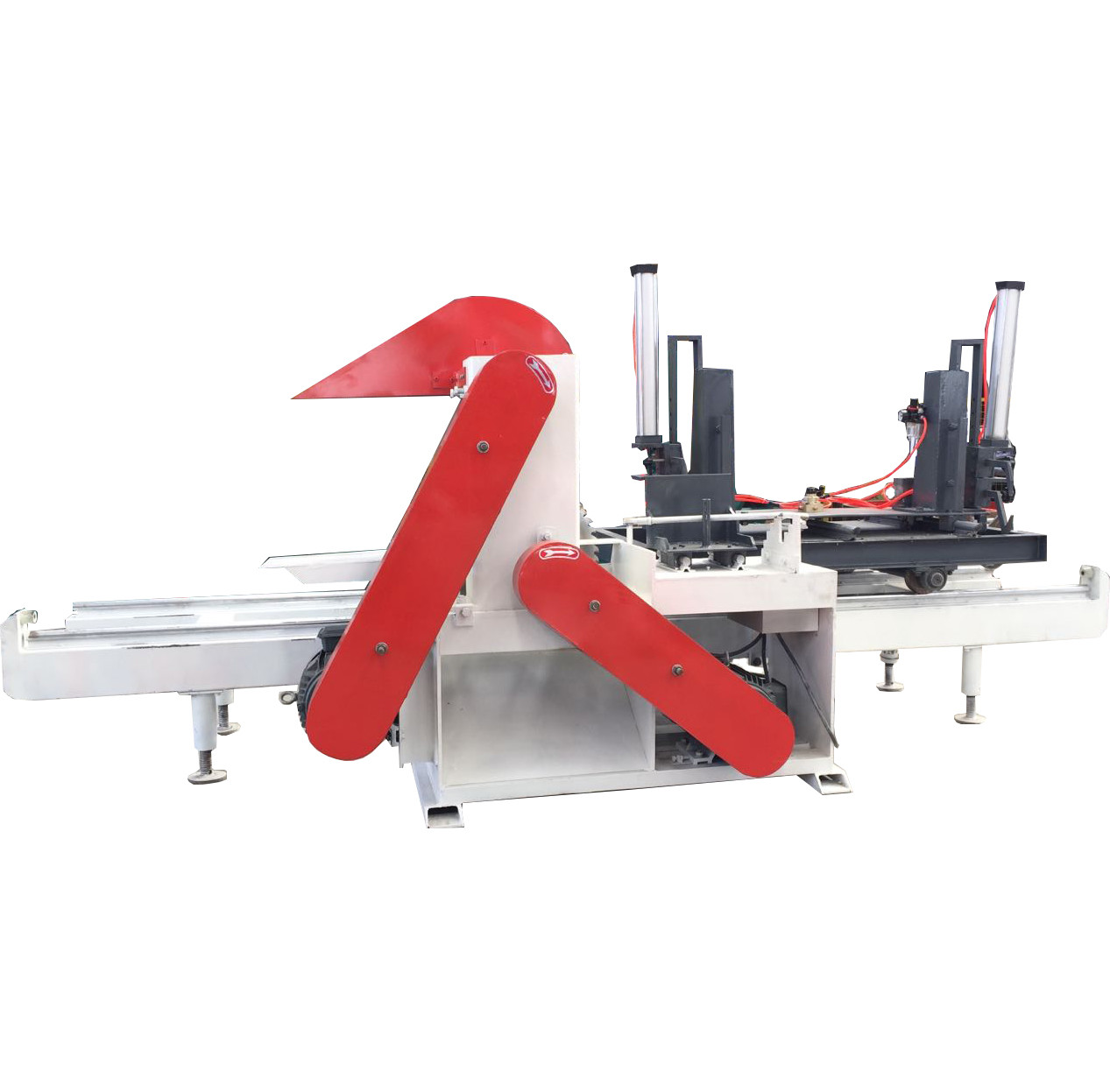

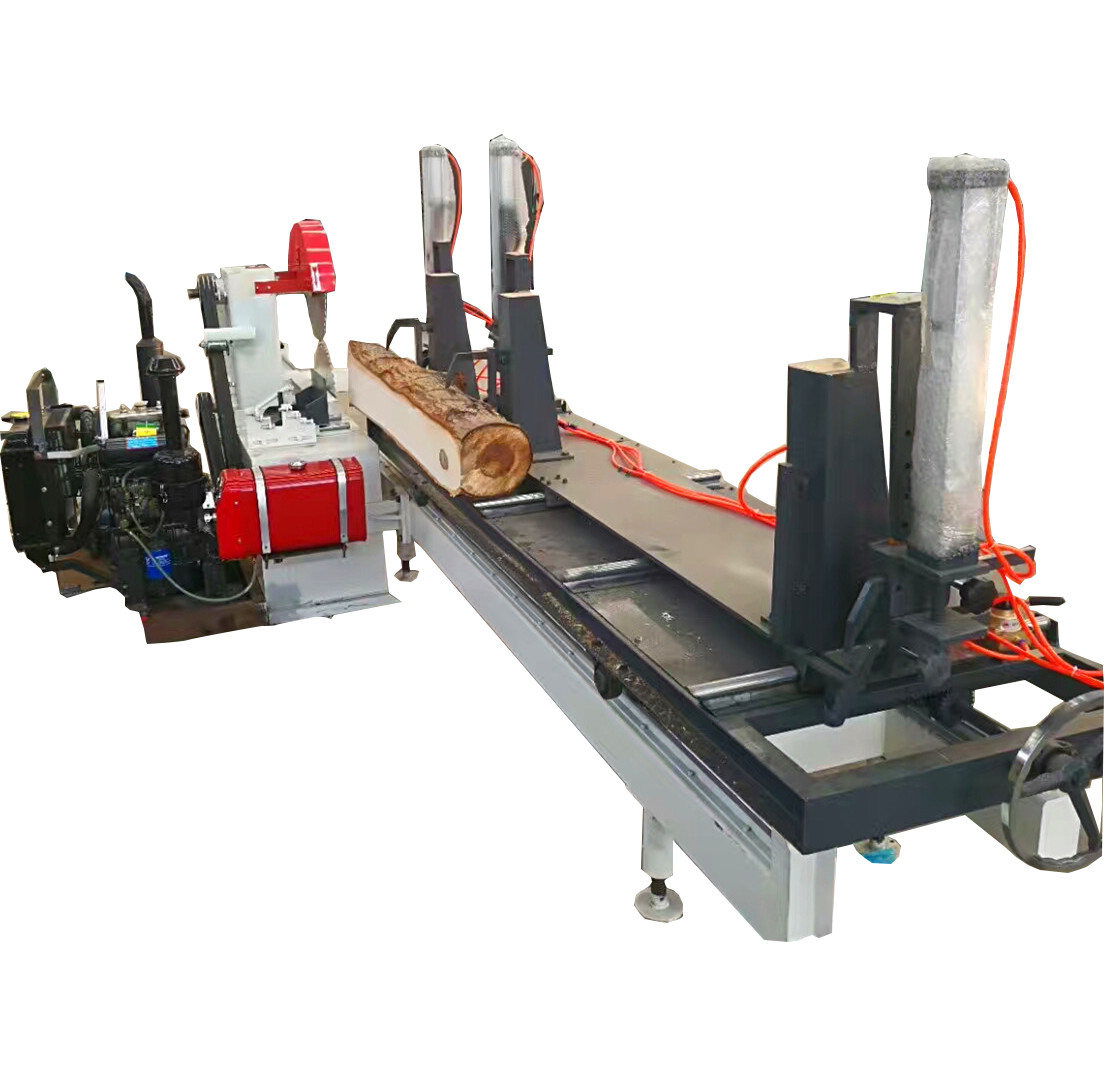

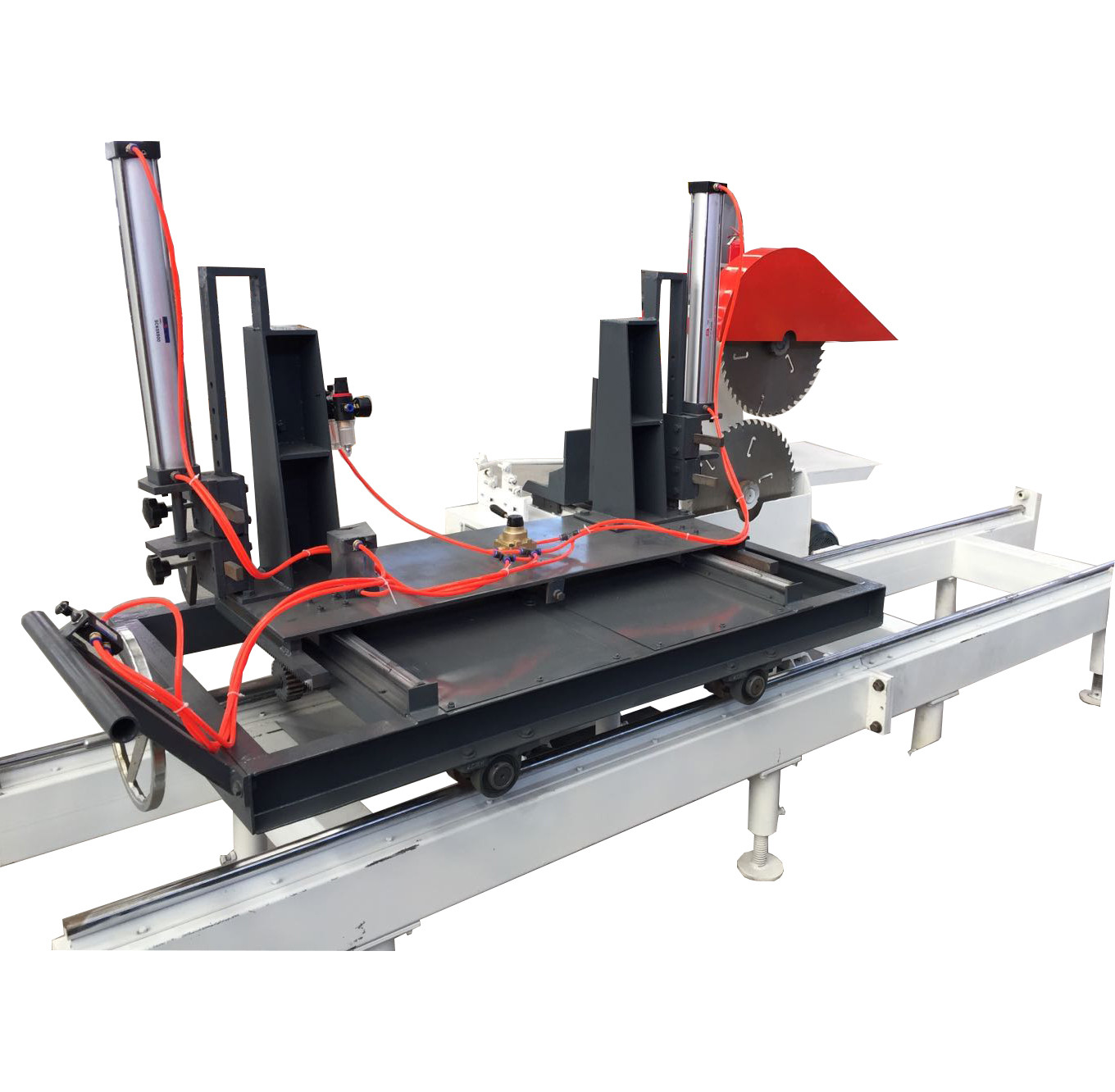

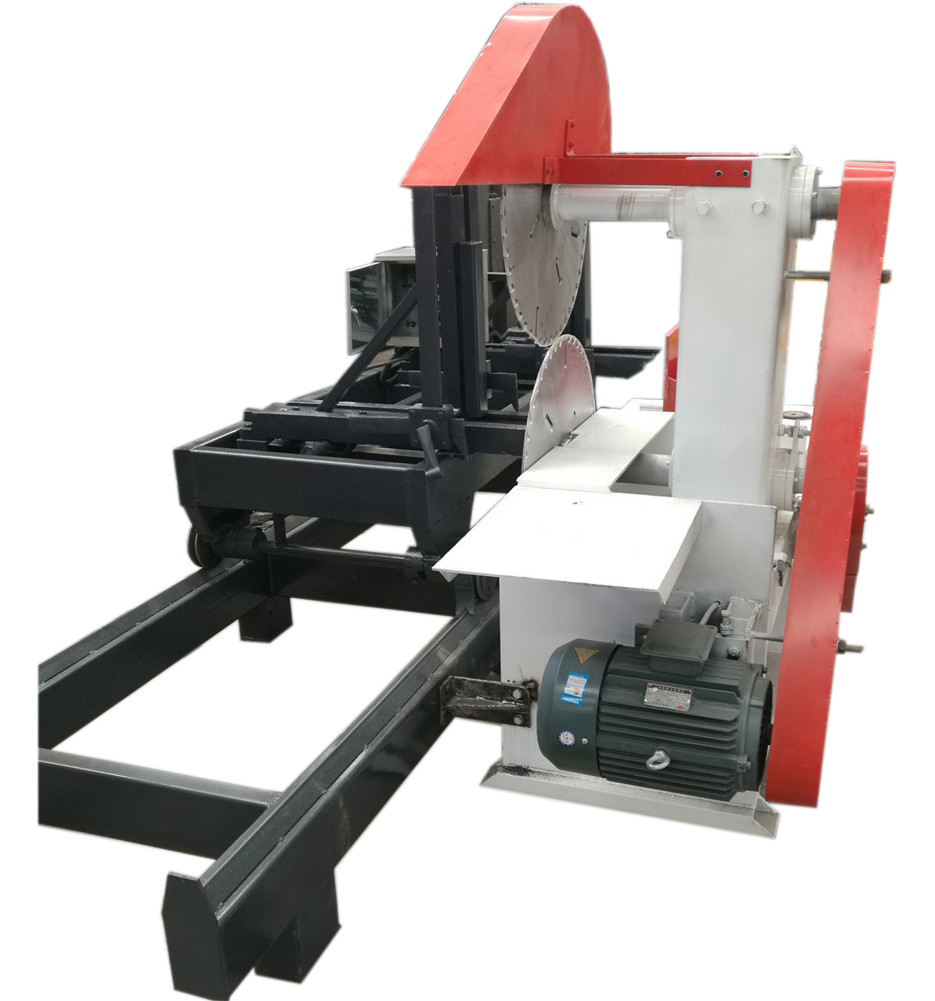

Twin Blades Circular Sawmill with Log Carriage
The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
The circular saw blade can avoid band saw blade bending,or dig hole on wood.
The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
The production capacity is more than 4 timers than band sawmill.
The specification is adjustable,Convenient to move the running rule,accuracy.
The track use linear guideway,accuracy,no error,wear resistent.
The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.
model | TT400-1500 | TT400-2000 | TT400-3000 |
Cut log max. diameter | 400mm or 16’’ | 400mm or 16’’ | 400mm or 16’’ |
Cut length | 1.5m | 2m | 3M |
Blade diameter | 500mm | 500mm | 500mm |
Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
Track length | 3000mm | 4000mm | 6000mm |
Log clamping | pneumatic | pneumatic | pneumatic |
Movement of carriage | manually | manually | manually |
Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
