2 Blade Circular Sawmill 7.5Kw 40cm Wood Cutting Sawmill Machine
Place of Origin | Shandong Province, China |
---|---|
Brand Name | SH |
Certification | ISO9001 |
Model Number | TT1500, TT2000,TT3000, etc |
Minimum Order Quantity | 1 SET |
Price | US $3,000 - 9,800 / Set |
Packaging Details | iron made frame pallet |
Delivery Time | within 15 days |
Payment Terms | T/T, L/C, Western Union |
Supply Ability | 1000sets/year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Voltage | 380v/3phase Or As Customer Needs Or With Diesel Engine |
---|---|---|---|
Type | Circular Saw | Warranty | 1 Year |
Usage | Wood Cutting | Cutting Log Dia. | 40cm |
Operation | Manual Or Digital Auto Control | Power | 7.5kw X 2 |
High Light | 2 Blade Circular Sawmill,40cm Wood Cutting Sawmill,Circular Sawmill 7.5Kw |
Wood Cutting Sawmill Double Blade Saw Mill Log Saw, 2 Blade Circular Sawmill

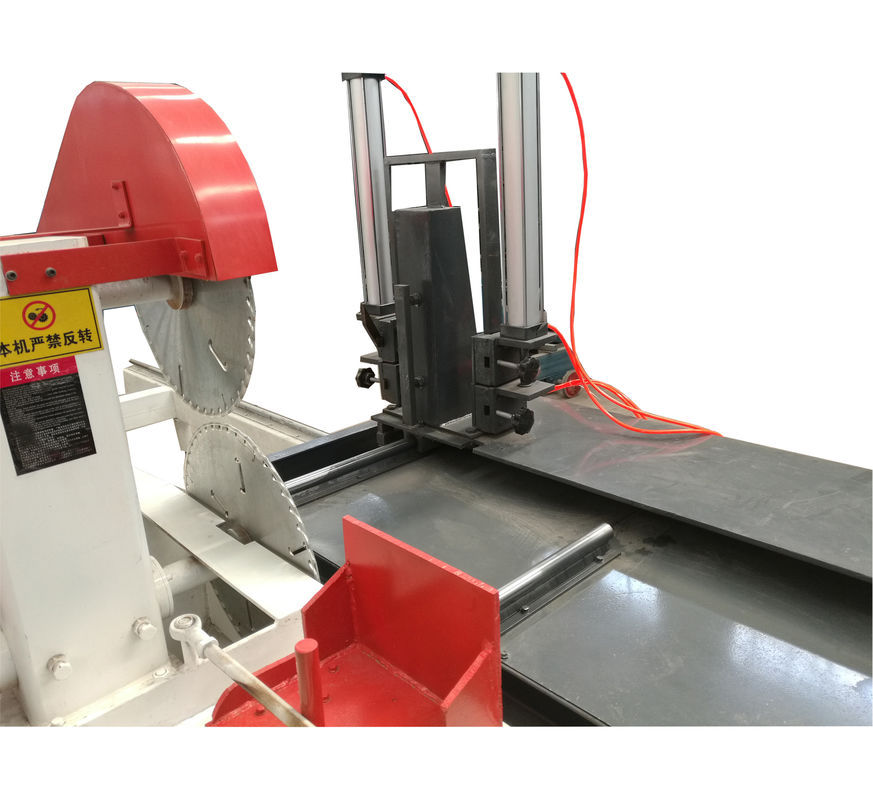

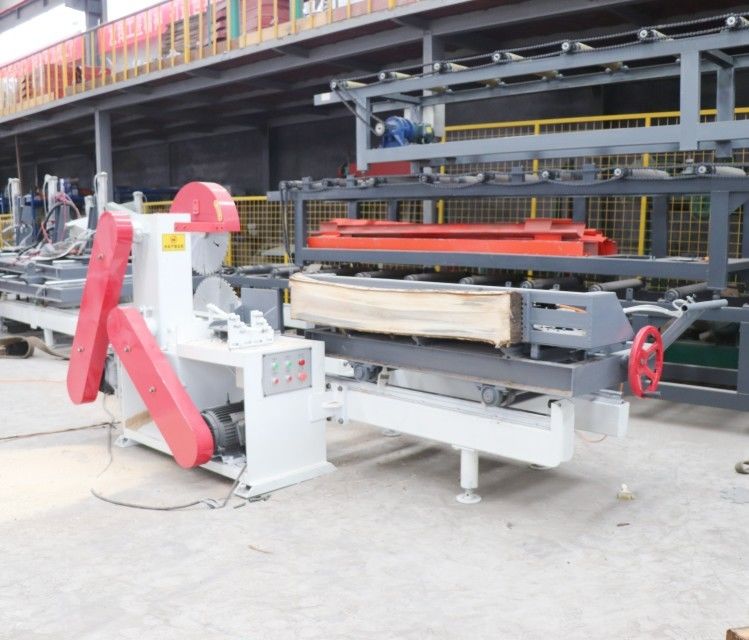

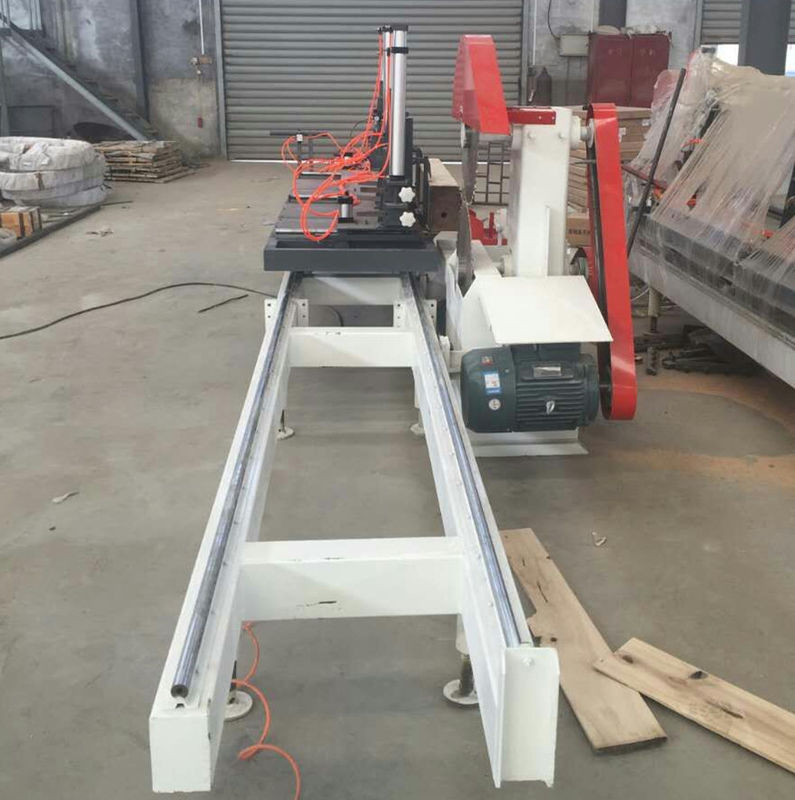

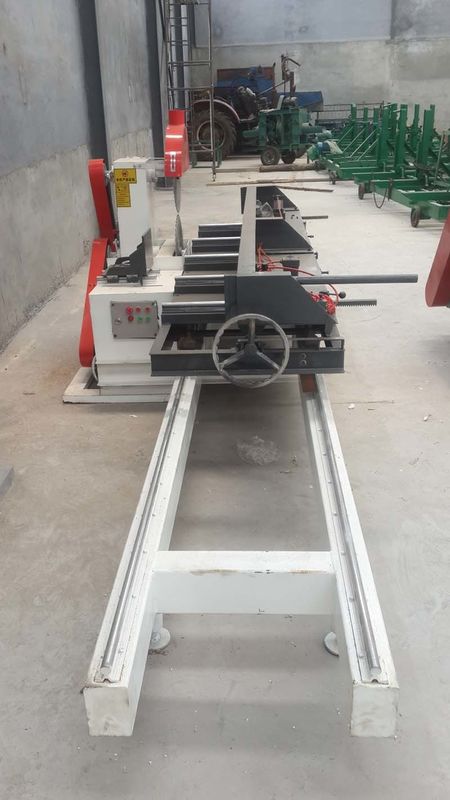

Twin Blades Circular Sawmill with Log Carriage
- The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
- The circular saw blade can avoid band saw blade bending,or dig hole on wood.
- The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
- The production capacity is more than 4 timers than band sawmill.
- The specification is adjustable,Convenient to move the running rule,accuracy.
- The track use linear guideway,accuracy,no error,wear resistent.
- The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.
Technical data - manual type:
model | TT400-1500 | TT400-2000 | TT400-3000 |
Cut log max. diameter | 400mm or 16’’ | 400mm or 16’’ | 400mm or 16’’ |
Cut length | 1.5m | 2m | 3M |
Blade diameter | 500mm | 500mm | 500mm |
Main Motor power | 7.5KW*2 | 7.5KW X 2 sets | 7.5KW X 2 sets |
Track length | 3000mm | 4000mm | 6000mm |
Log clamping | pneumatic | pneumatic | pneumatic |
Movement of carriage | manually | manually | manually |
Carriage Rail Mode | Linear Axis | Linear Axis | Linear Axis |
Optional - diesel engine type
Related Saw Machine
Portable Horizontal Band Sawmill (Electric Model )
- Portable horizontal band saw which is easy to install and operate.
- Finished with Carbide band saw blade for hard wood cutting .
- The sawing kerf is small, reduce the waste to high output.
- The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Technical data:
Specifications: | ||||
Model |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
CNC Horizontal Band Sawmill
