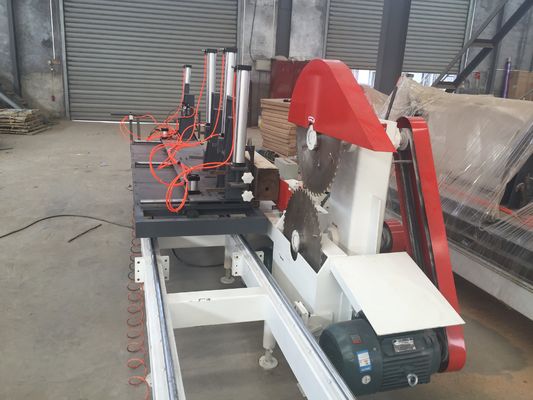

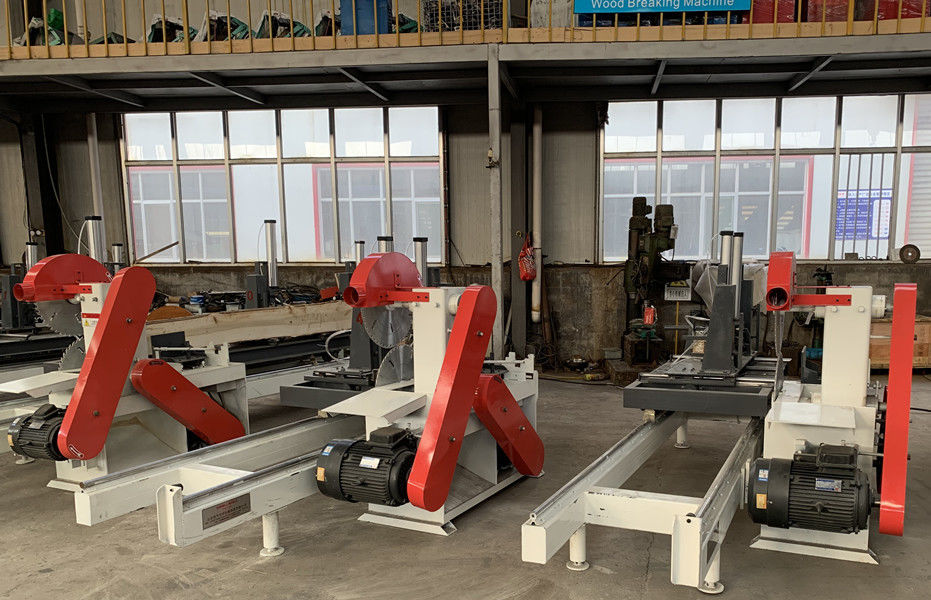

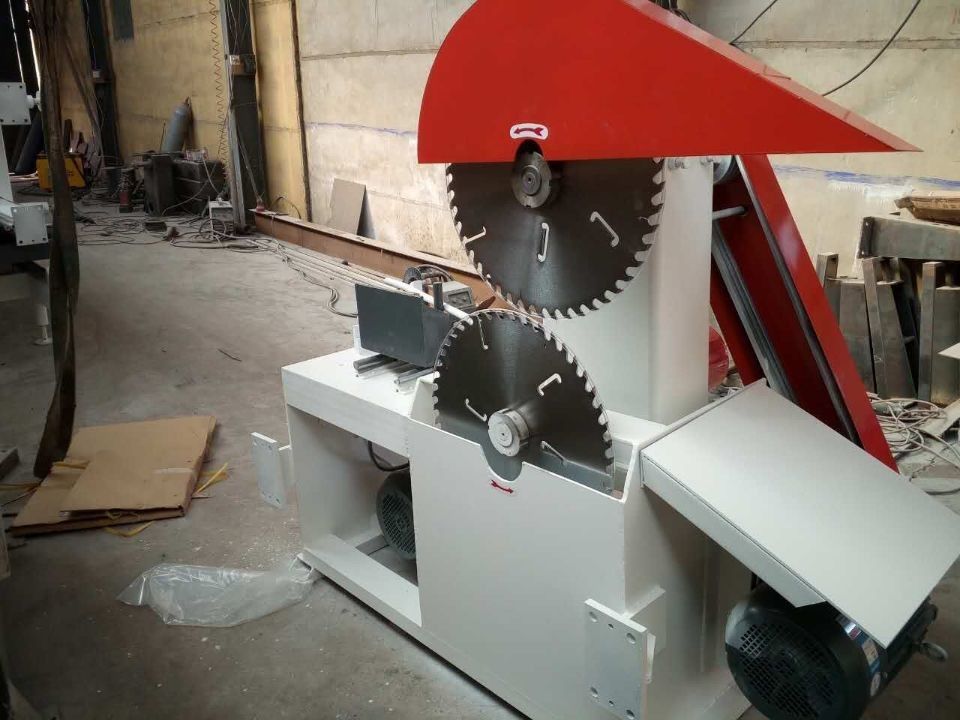

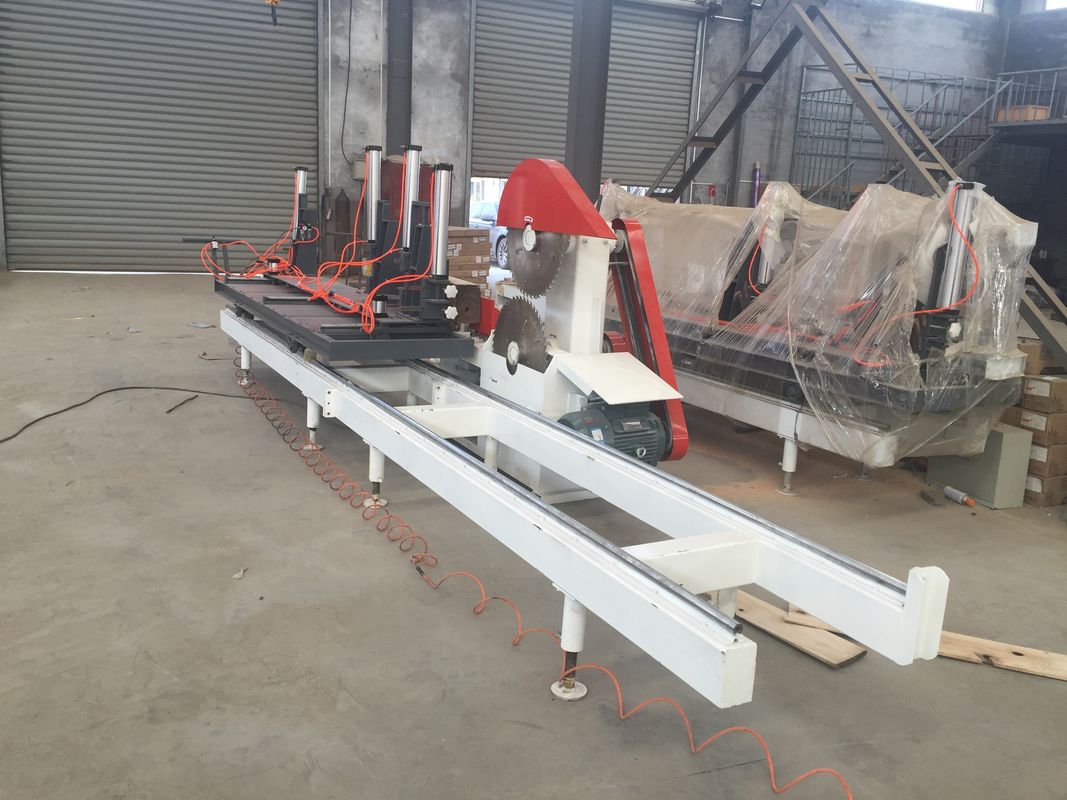

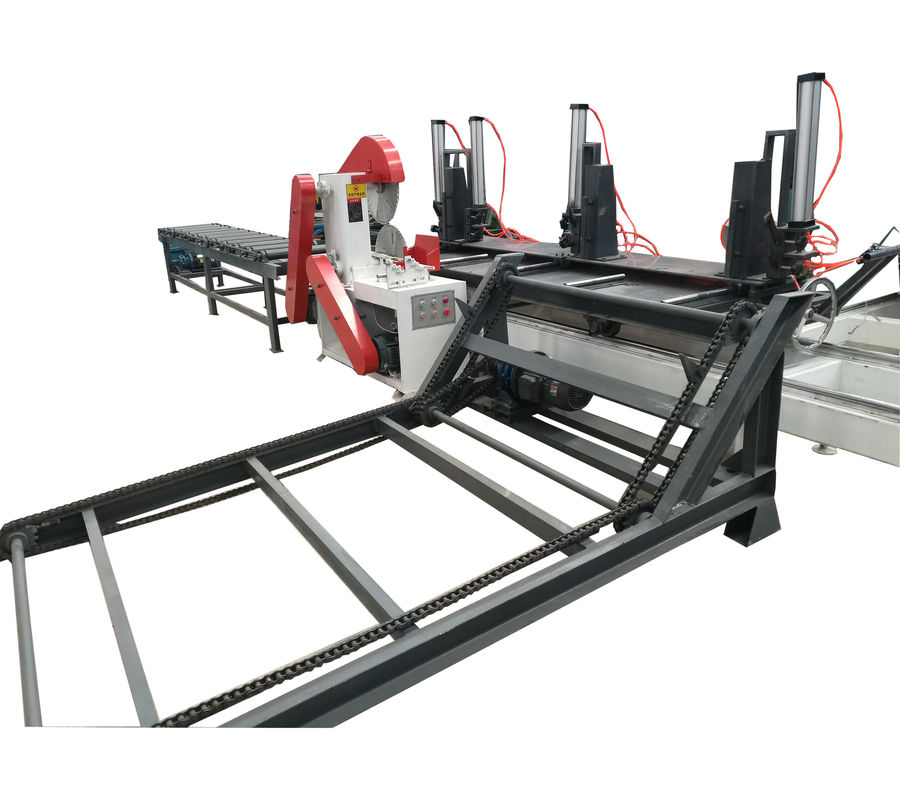

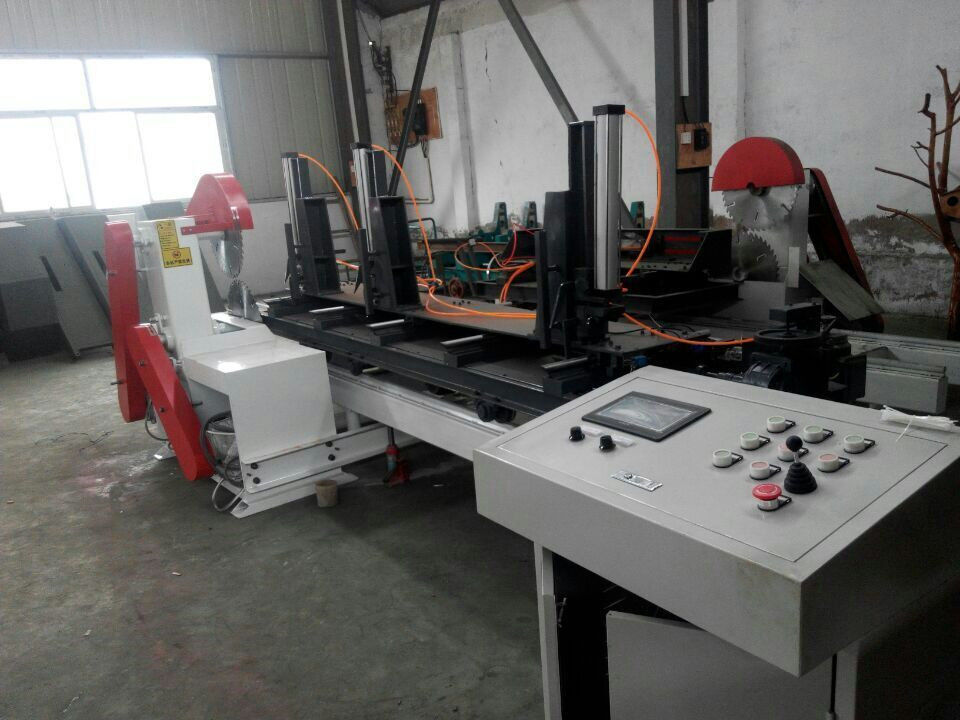

woodworking machinery of heavy duty twin blades circular sawmill with log carriage

woodworking machinery of heavy duty twin blades circular sawmill with log carriage

    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
    • woodworking machinery of heavy duty twin blades circular sawmill with log carriage
  • woodworking machinery of heavy duty twin blades circular sawmill with log carriage

    Product Details:

    Place of Origin: shandong province, China
    Brand Name: SH
    Certification: ISO9001
    Model Number: CT1500, CT2000, CT3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $3,000 - 9,800 / Set
    Packaging Details: iron made frame pallet
    Delivery Time: within 20 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 2000sets/year
    Contact Now
    Detailed Product Description
    Name: Double Blades Log Circular Sawmill Condition: New
    Sawing Log Diameter: 40cm Sawing Log Max. Length: 3meters Or As Customer Needs
    Log Feeding: Frequency Auto Feeding Operation: Touching Screen Auto Setworks

    Twin Blades Circular Sliding Table Sawmill

    Introduction

    1. The round log can slitting naturally,slitting totally,can sawing round wood to square timber.

    2. The circular saw blade can avoid band saw blade bending,or dig hole on wood.

    3. The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.

    4. The production capacity is more than 4 timers than band sawmill.

    5. The specification is adjustable,Convenient to move the running rule,accuracy.

    6. The track use linear guideway,accuracy,no error,wear resistent.

    7. The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

    Technical data:

    • Sawing log max. diameter/height: 40cm or 48cm
    • log feeding : frequency auto feeding
    • sawn sizes setting : touching screen auto setworks

    Wood Sliding Table Sawmill (Computer Type)



    Model CT1500 CT2000 CT3000
    Max Sawing Wood Diameter 400mm 400mm 400mm
    Max Sawing Wood Length 1500mm 2000mm 3000mm
    Saw Blade Diameter 500mm 500mm 500mm
    Motor Power 7.5KW*2 7.5KW*2 7.5KW*2
    Rail Length 3500mm 5000mm 6500mm
    Wood Fasten Model Pneumatic up/down Pneumatic up/down Pneumatic up/down
    Carriage Rail Model Linear Axis Linear Axis Linear Axis
    Feeding mode Electric frequency variable speed adjustable
    Operation PLC touching screen automatic operation

    Optional part:

    1.Maximum sawing log diameter is upto 48cm .

    2.When cutting very hardwood we can increase motor power as customer needs .
