Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ1200 MJ1500 MJ2000 MJ2500
Minimum Order Quantity 1 SET
Price US $12,000 - 31,000 / Set
Packaging Details container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 200 sets/quarter

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Band Saw Use Woodworking
Style Horizontal Conditon New
Voltage 380V/3phase/50HZ Or As Customer Needs Power 37-53kw
Weight 2800kg To 4000kgs Warranty 12 Months
After-sales Service Provided Engineers Available To Service Machine Overseas Operation PLC Touching Screen Automatic
Engine Electrical Type Or Diesel Engine Powered
Leave a Message
Product Description

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.



Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 900 1000 1100 1100
Sawing thickness (MM) 400 450 480 480
Max Sawing wood Length (MM) 10000 10000 10000 10000
Main Motor Power (KW) 22 37 45 45
Total Power (6 Motors) (KW) 30 45 53 53
Total Weight (KG) 2800 3000 3800 4000
Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .

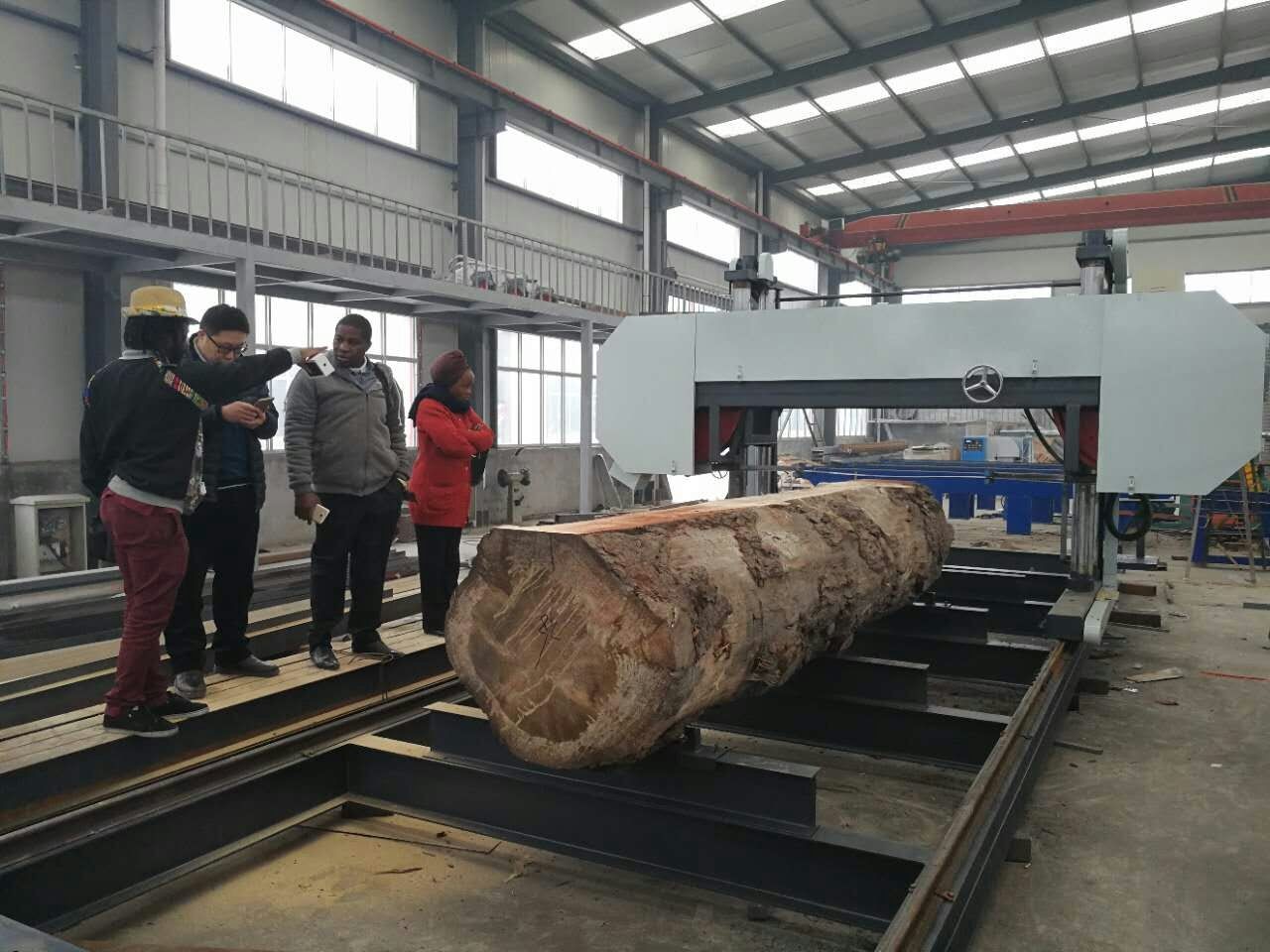

Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood 0Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood 1





Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification MJ2000D
Cut max. diameter (mm) 2000
Saw wheel diameter (mm) 1070
Cutting thickness (mm) 10-400
Cut length (m) 10m
Band saw blade size (mm) 1.25x125/150x9800
Saw Walking Frequency variable
Saw blade tension electrical
Saw Elevating Electrical
Main motor 70HP Diesel engine
Total weight (kgs) 4500

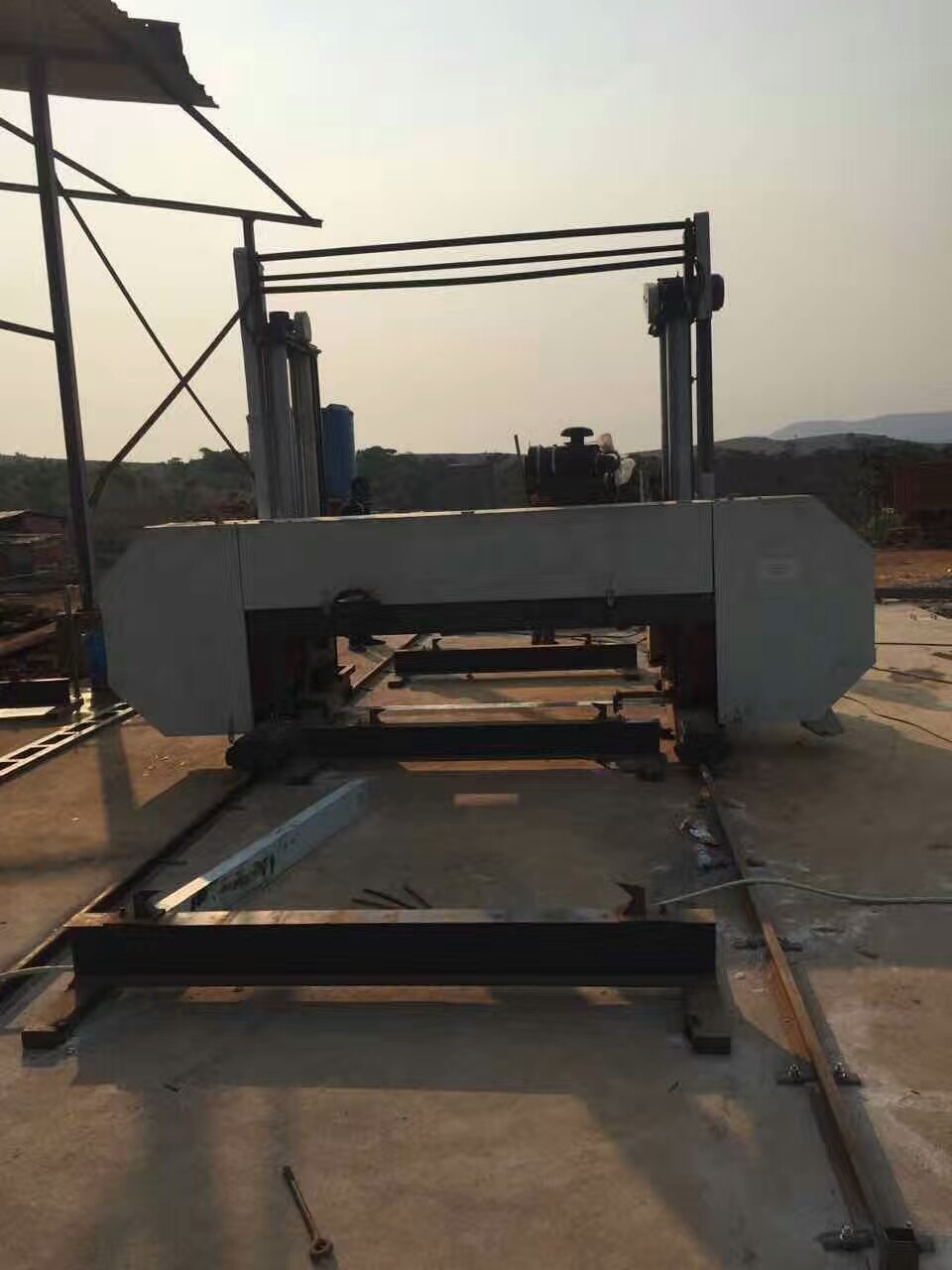

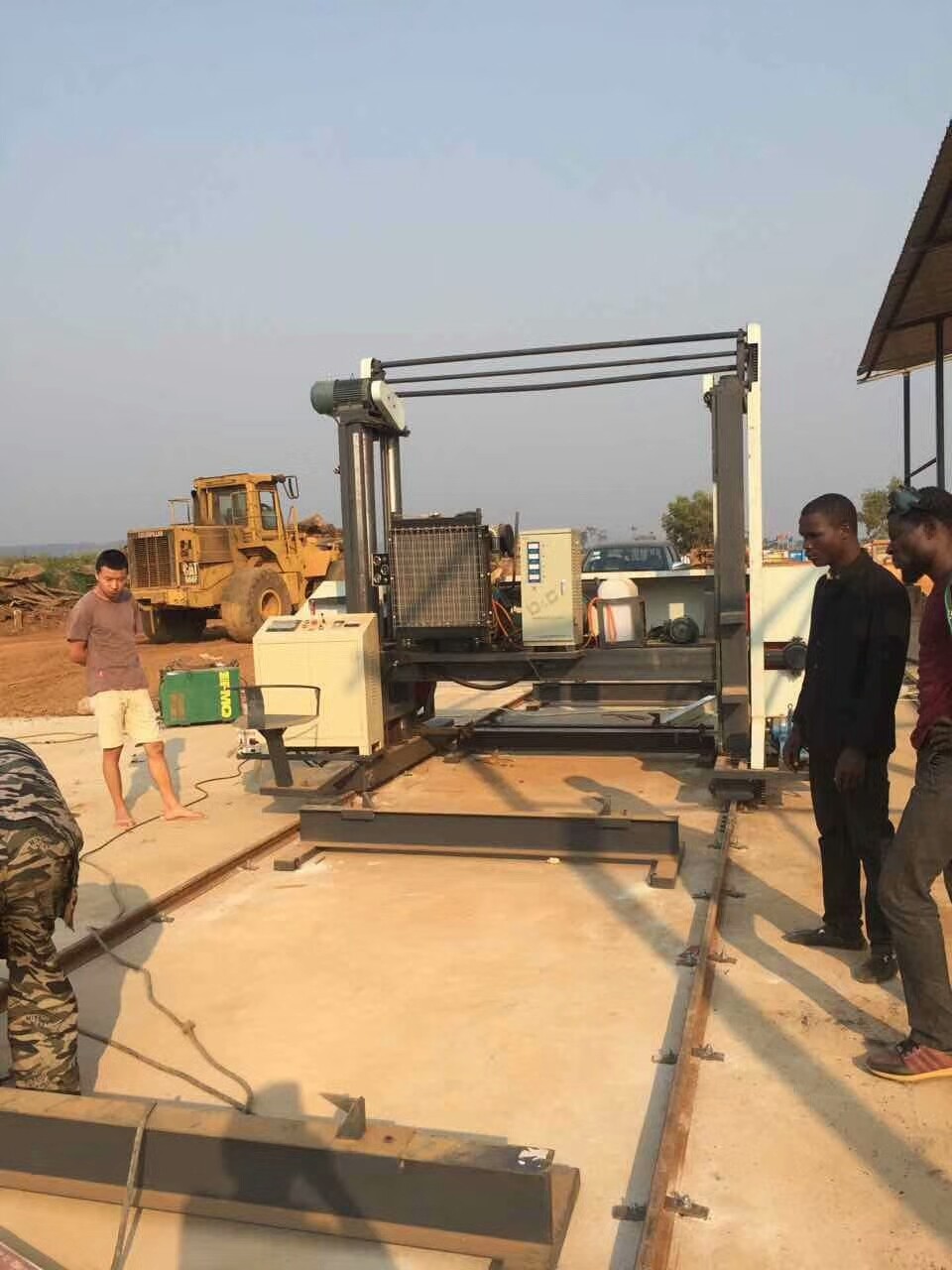

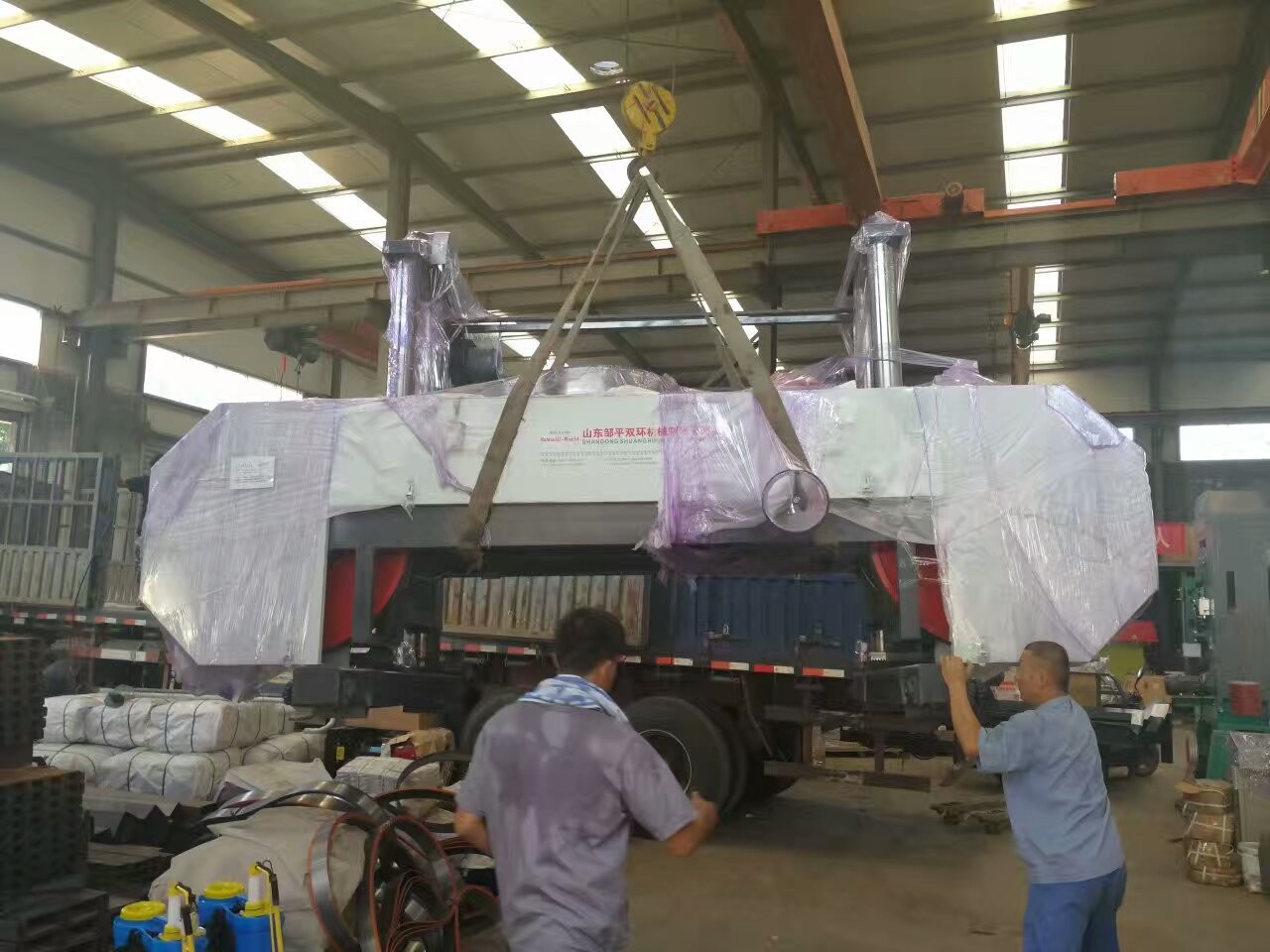

Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood 2Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood 3Band Saw Machine Big Timber ripping horizontal Cutting machine for large wood 4
