1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill

  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
  • 1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number MJ1200 MJ1500 MJ2000 MJ2500
Minimum Order Quantity 1 SET
Price US $11,000 - 29,000 / Set
Packaging Details container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000 sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Big Horizontal Band Saw Mill Type Band Saw
Voltage 380V/3phase/50HZ Or As Customer Needs Main Motor Power 37kw, 45kw, 55kw
Max. Cutting Log Diameter 1200mm To 2500mm Band Wheel Diameter 1070mm
Bandsaw Blade Width 125mm, 150mm Operation PLC Touching Screen Automatic
Engine Electrical Type Or Diesel Engine Powered Warranty 12 Months
Weight 3800kg To 4000kgs
High Light

2500mm Automatic Bandsaw Mill

,

1200mm Automatic Bandsaw Mill

,

Rosewood Bandsaw Log Mill
Leave a Message
Product Description

Big heavy duty horizontal band saw for wood / Automatic bandsaw mill machine

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.



Technical specifications:



Model  MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width  1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter  1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters  6meters  6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw  37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg




















Detailed Image

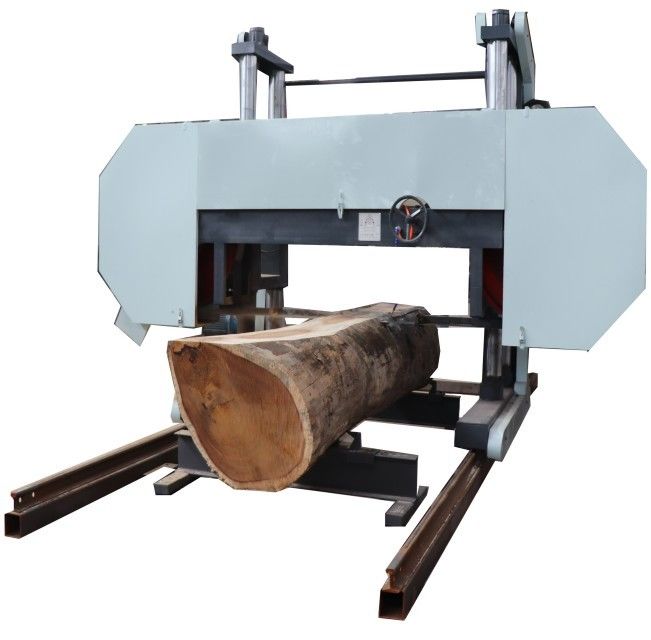

1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 0

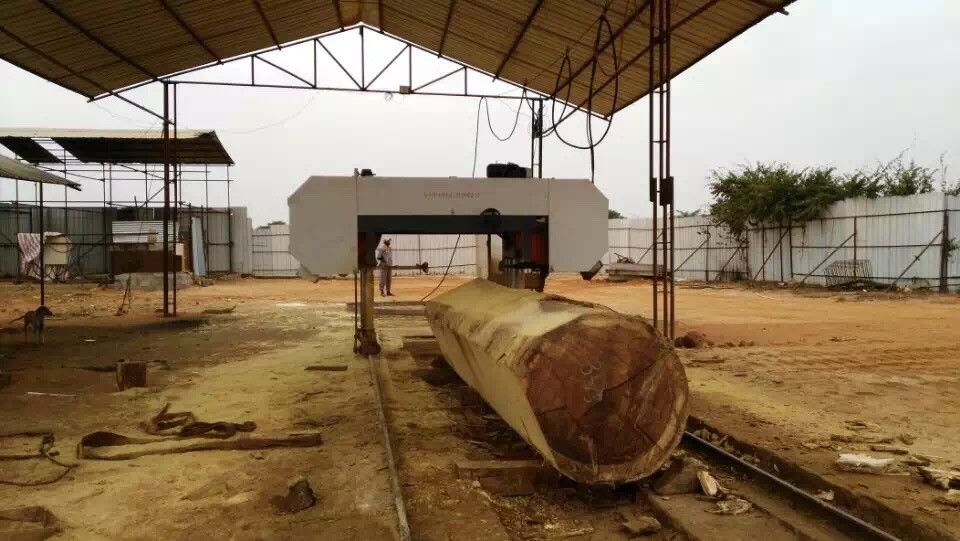

1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 1

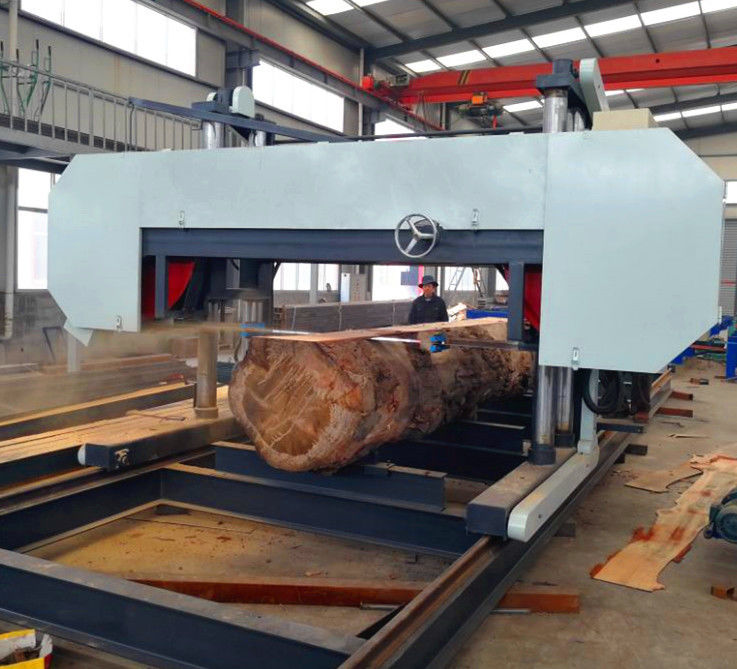

1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 2

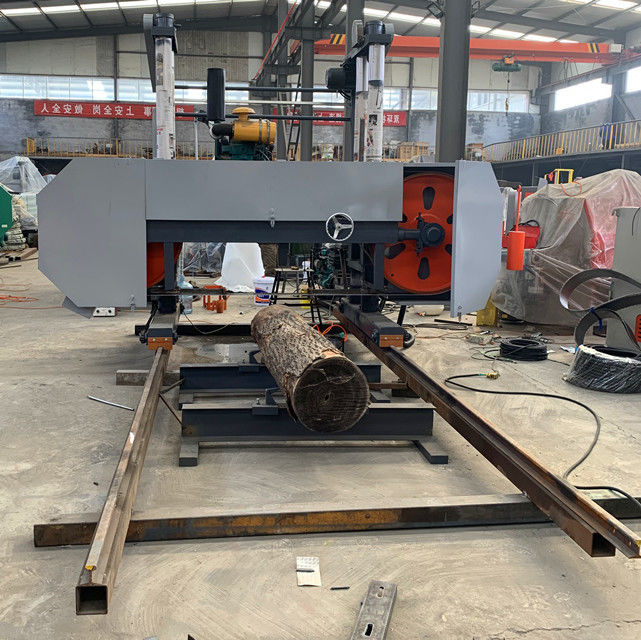

Optional -  Diesel Engine Powered Large Size Horizontal Band Sawmill

Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Diesel engine +20kw generator 80HP 80HP 80HP 80HP
Weight 3800kgs 4500kg 5000kg 5500kg

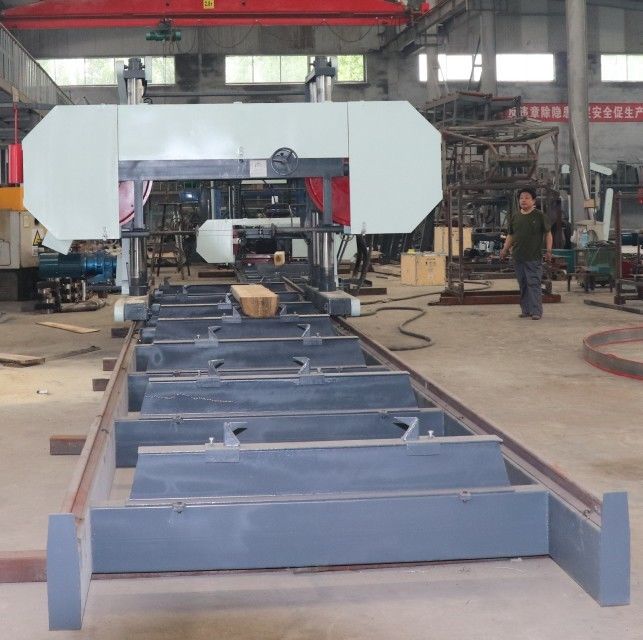

1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 31200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 4

Optional Parts -automatic blade sharpener

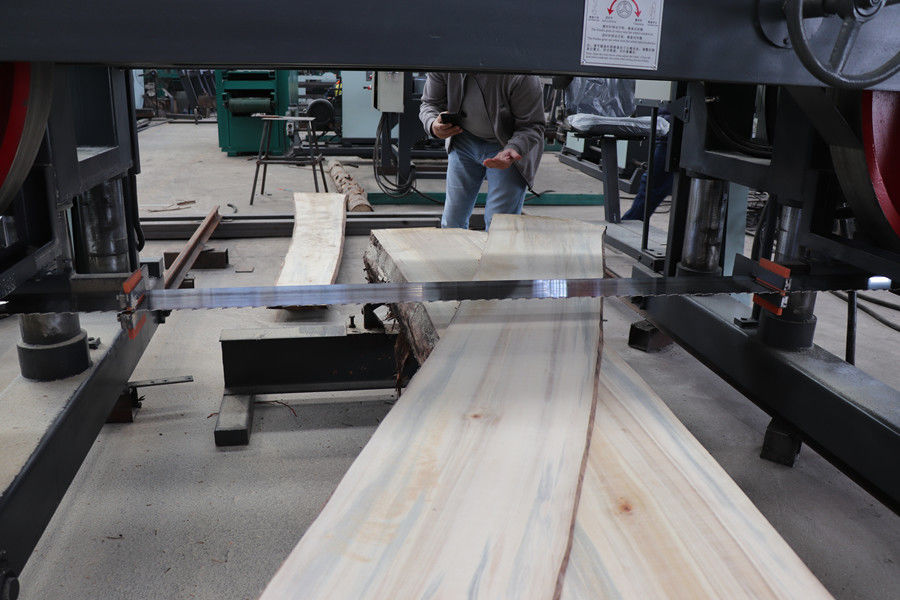

1200mm To 2500mm Automatic Bandsaw Mill Rosewood Bandsaw Log Mill 5
