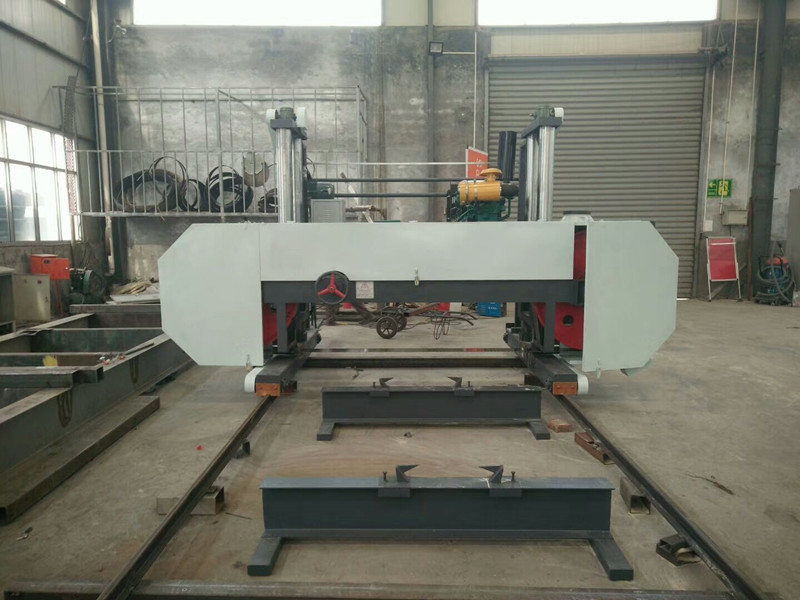

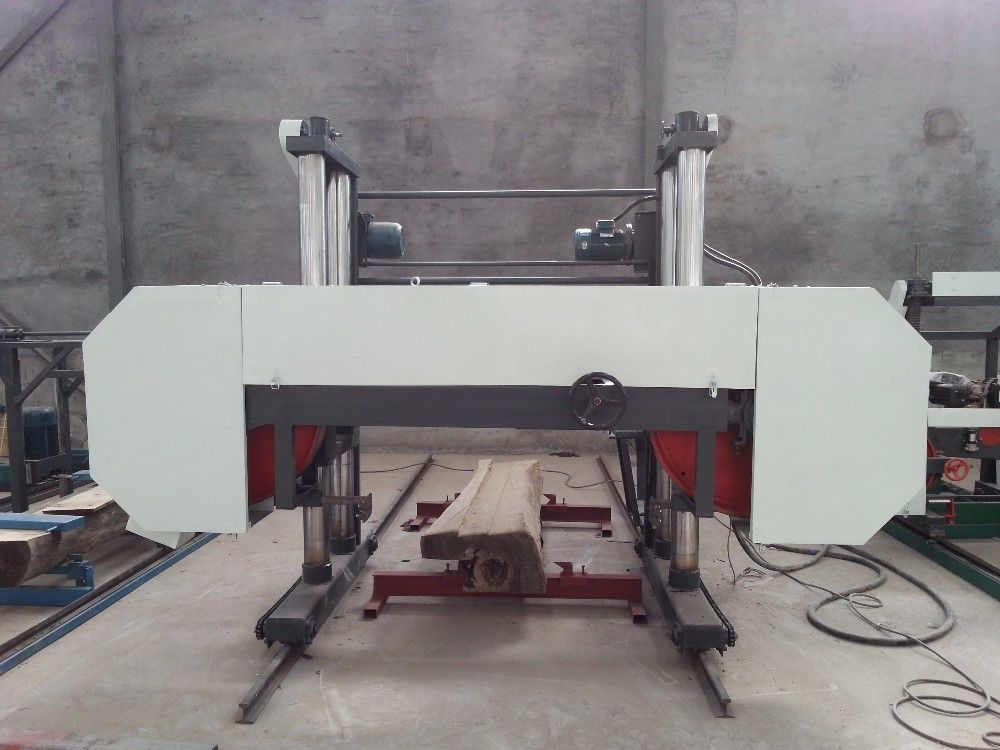

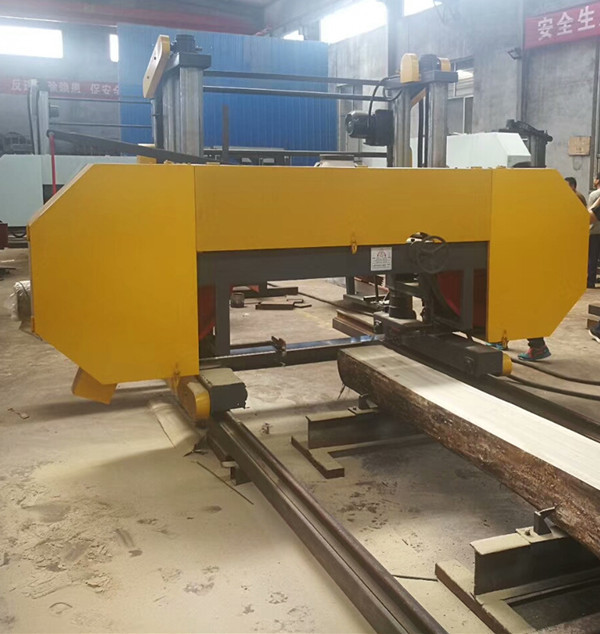

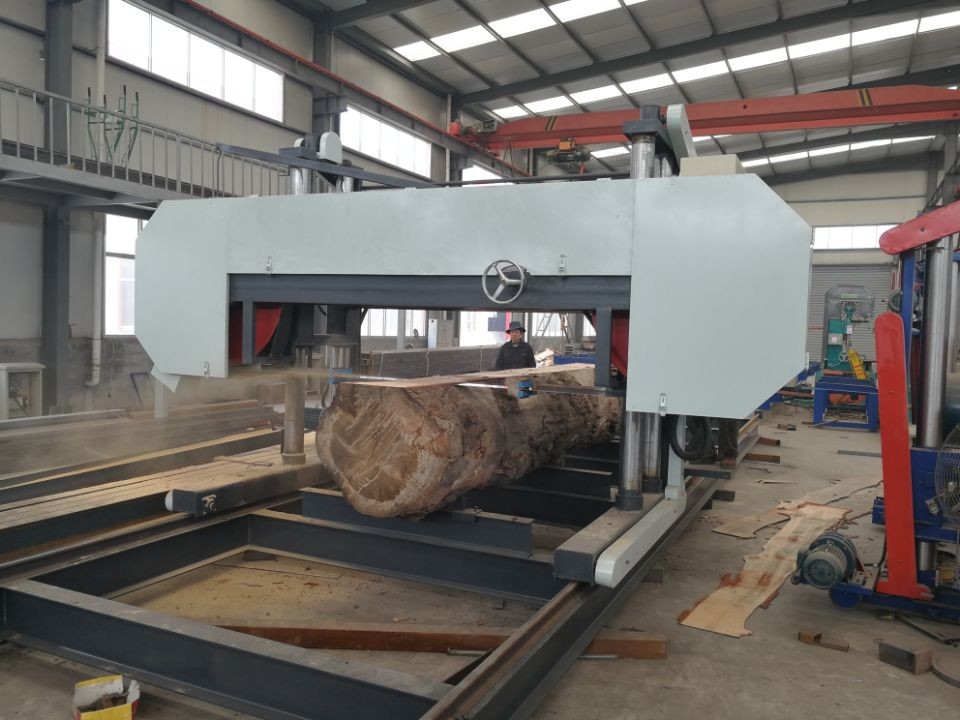

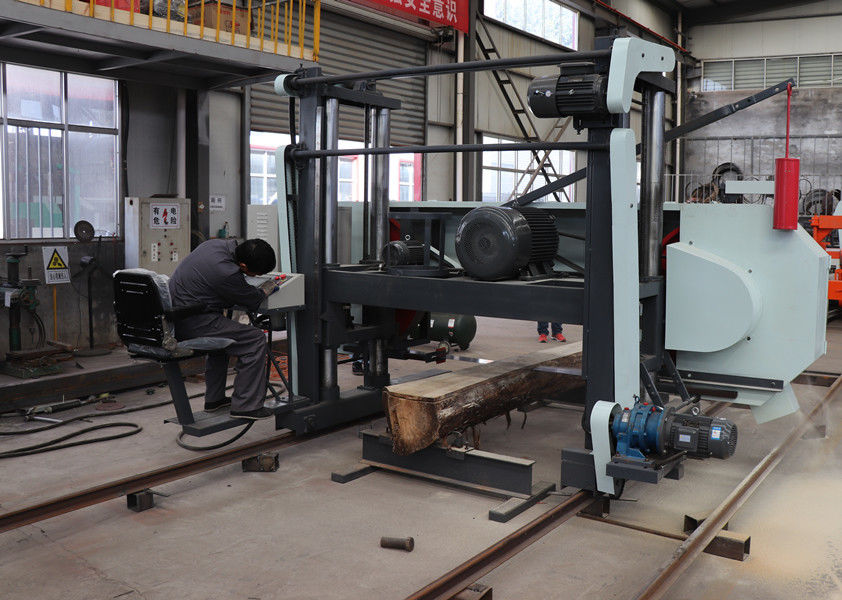

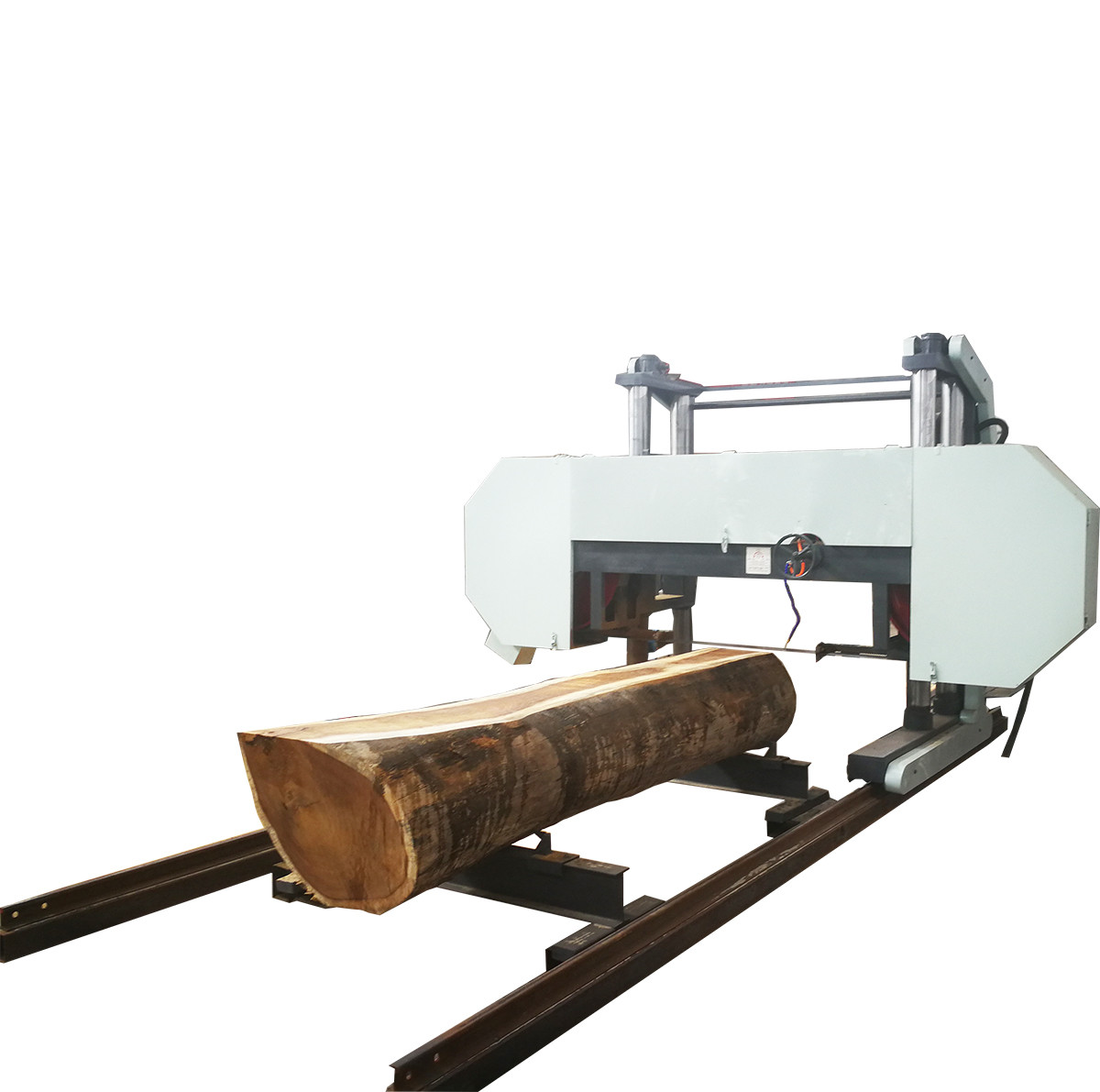

Heavy Duty Large Size Horizontal Band Sawmill
1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
3. Diesel engine powered big sawmill is workable
Structure Features:
1.High quality parts, SKF bearings from Sweden
2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .
Technical specifications:
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Main motor power | 30kw | 37kw | 45kw | 55kw |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
Optional - Diesel Engine Powered Large Size Horizontal Band Sawmill
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Diesel engine +20kw generator | 80HP | 80HP |
80HP |
80HP |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |
Wood Edger Cutting Circular Blade Table Sawmill
Introduction:
1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.
2.Sawing max width is upto 1.5meters
3.The saw equipped with carbide blade for hardwood cutting .
4.The saw machine is with auto feeding .
Technical data:
| Model | BT3000-600 | BT3000-1000 | BT3000-1500 |
| Sawing thickness | 10-180mm | 10-180mm | 10-180mm |
| Sawing maximum length | 3000mm | 3000mm | 3000mm |
| Sawing maximum width | 600mm | 1000mm | 1500mm |
| Circular blade diameter | 500mm | 500mm | 500mm |
| Motor power | 11KW | 15KW | 15KW |
| Track length | 5800mm | 5800mm | 5800mm |
| Wood grasp type | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Manual | Manual | Manual |
| Operation | Manual | Manual | Manual |
|
Optional parts: 1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks |
|||
