    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: MJ1200 MJ1500 MJ2000 MJ2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $11,000 - 31,000 / Set
    Packaging Details: container loading
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1500sets/year
    Contact Now
    Detailed Product Description
    Conditon: New Type: Horizontal Band Saw
    Use: Woodworking Voltage: 380V,3PH Or As Customer Needs
    Power: 37-53kw Weight: 2800kg To 4000kgs
    Warranty: 12 Months Operation: Automatic
    Engine: Electric Or Diesel Engine

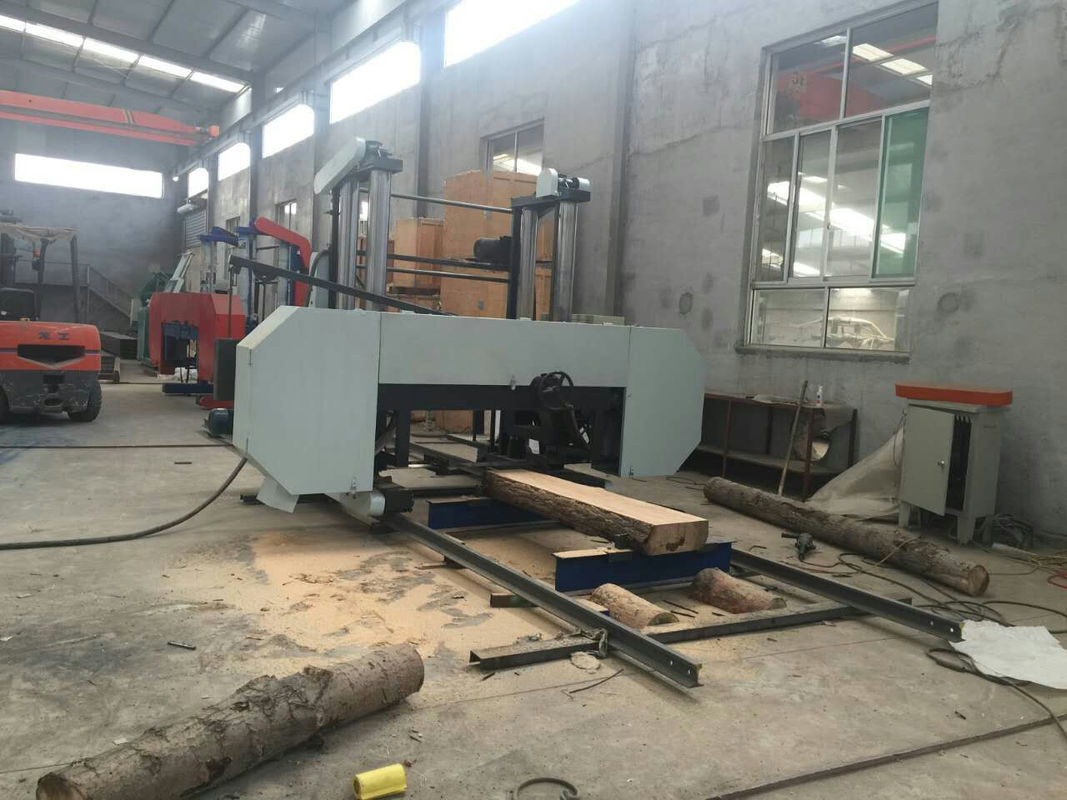

    Heavy Duty Large Size Horizontal Band Sawmill
    The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
    It have large saw wheel and high power.
    Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.



    Technical specifications:

    Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
    Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
    Saw wheel diameter (MM) 900 1000 1100 1100
    Sawing thickness (MM) 400 450 480 480
    Max Sawing wood Length (MM) 10000 10000 10000 10000
    Main Motor Power (KW) 22 37 45 45
    Total Power (6 Motors) (KW) 30 45 53 53
    Total Weight (KG) 2800 3000 3800 4000
    Electric & Screw Band Saw Blade Tension
    Infinitely variable speeds forward and backward
    Touch Screen sawing thickness setting
    Control Cabinet and Seats built on the sawmill
    4 group Mobile card wood file .

    Wood tree cutting big horizontal diesel wood sawmill,Horizontal Bandsaw MillWood tree cutting big horizontal diesel wood sawmill,Horizontal Bandsaw Mill

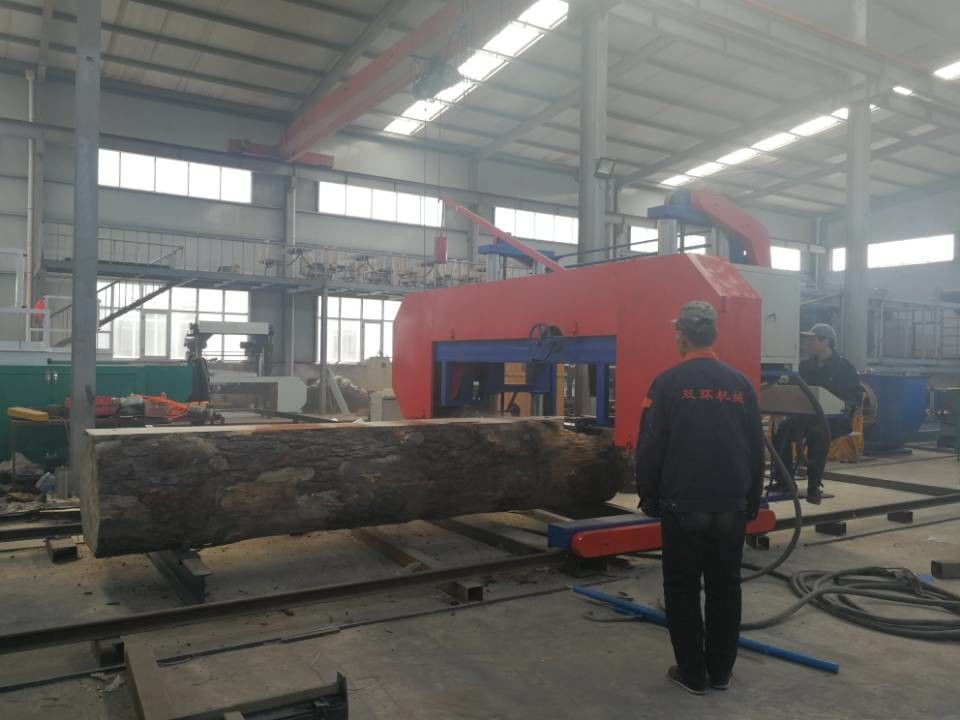

    Diesel Engine Powered Large Size Horizontal Band Sawmill

    Technical specification MJ2000D
    Cut max. diameter (mm) 2000
    Saw wheel diameter (mm) 1070
    Cutting thickness (mm) 10-400
    Cut length (m) 10m
    Band saw blade size (mm) 1.25x125/150x9800
    Saw Walking Frequency variable
    Saw blade tension electrical
    Saw Elevating Electrical
    Main motor 70HP Diesel engine
    Total weight (kgs) 4500

    Wood tree cutting big horizontal diesel wood sawmill,Horizontal Bandsaw MillWood tree cutting big horizontal diesel wood sawmill,Horizontal Bandsaw MillWood tree cutting big horizontal diesel wood sawmill,Horizontal Bandsaw Mill
