CNC Large Bandsaw Horizontal band sawmill wood saw lumber mill
| Place of Origin | shandong province |
|---|---|
| Brand Name | SH |
| Certification | ISO |
| Model Number | MJ1200 MJ1500 MJ2000 MJ2500 |
| Minimum Order Quantity | 1 SET |
| Price | US $15,900 - 28,000 / Set |
| Packaging Details | container loading |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Horizontal Band Saw |
|---|---|---|---|
| Use | Woodworking | Warranty | 12 Months |
| Voltage | 380v, 3phaes, 50HZ Or As Customer Needs | Operation | Automatic |
| Power | 30-55KW | Main Motor Start | Electrical |
Product Description

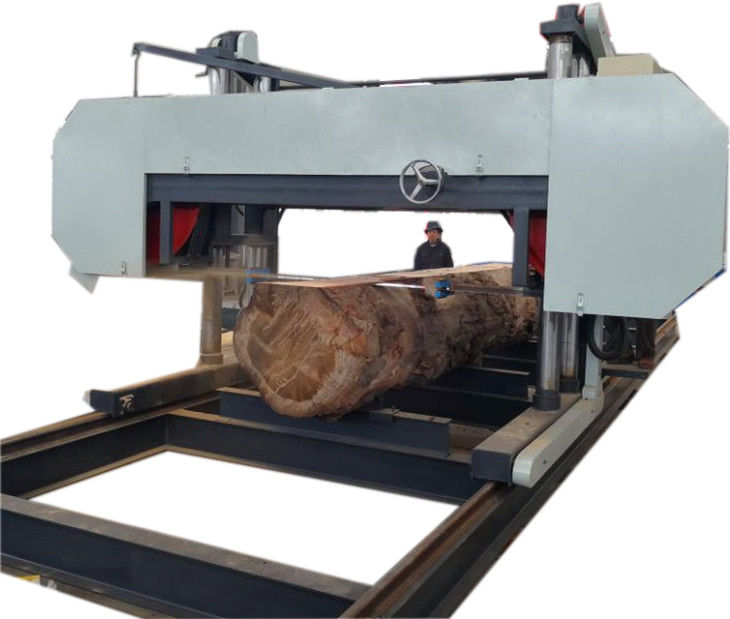

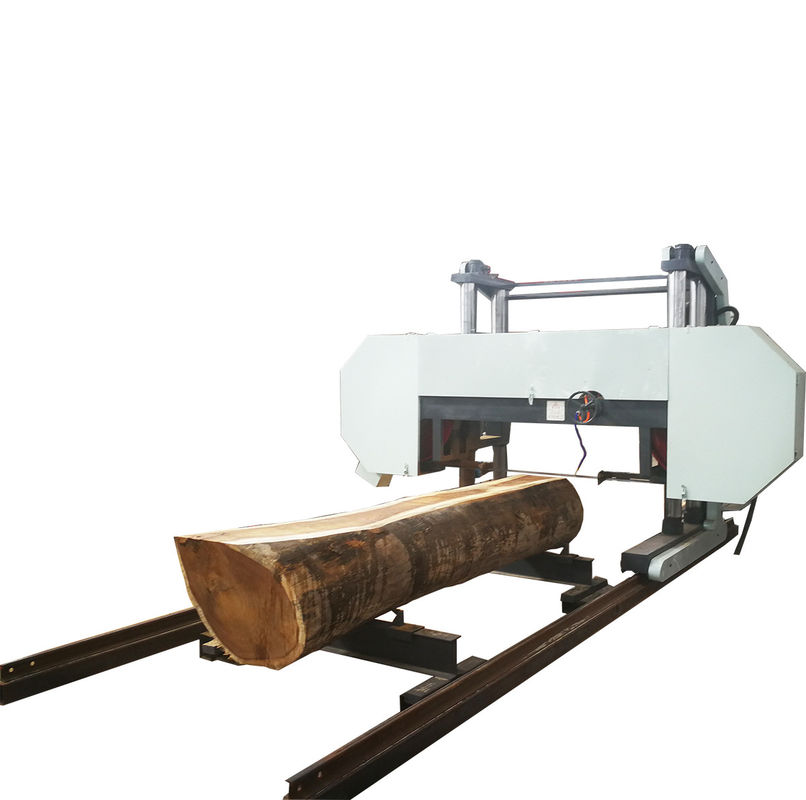

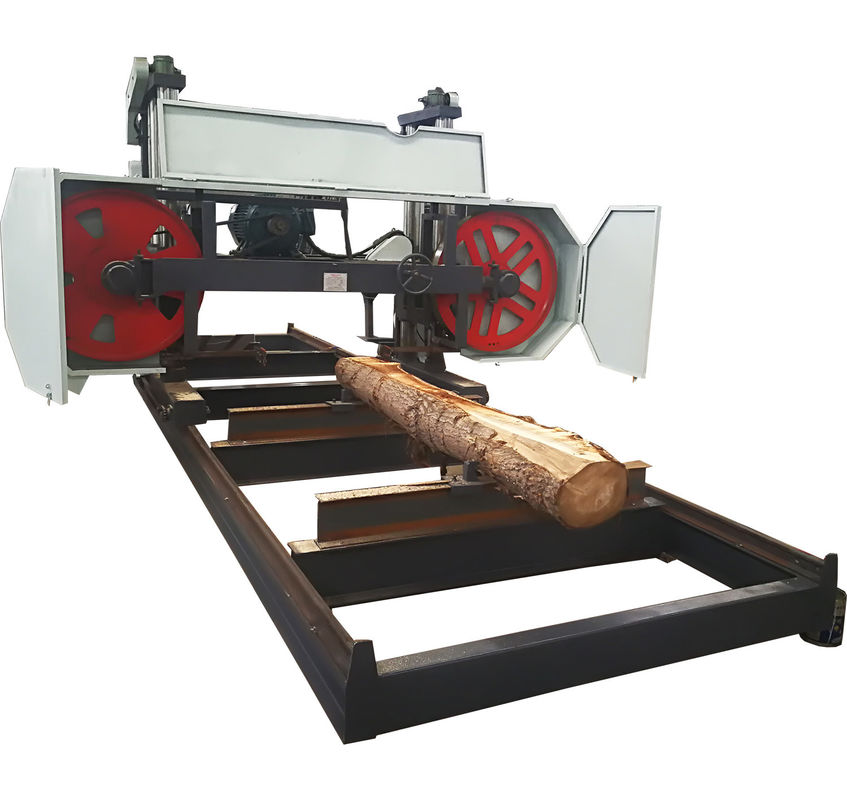

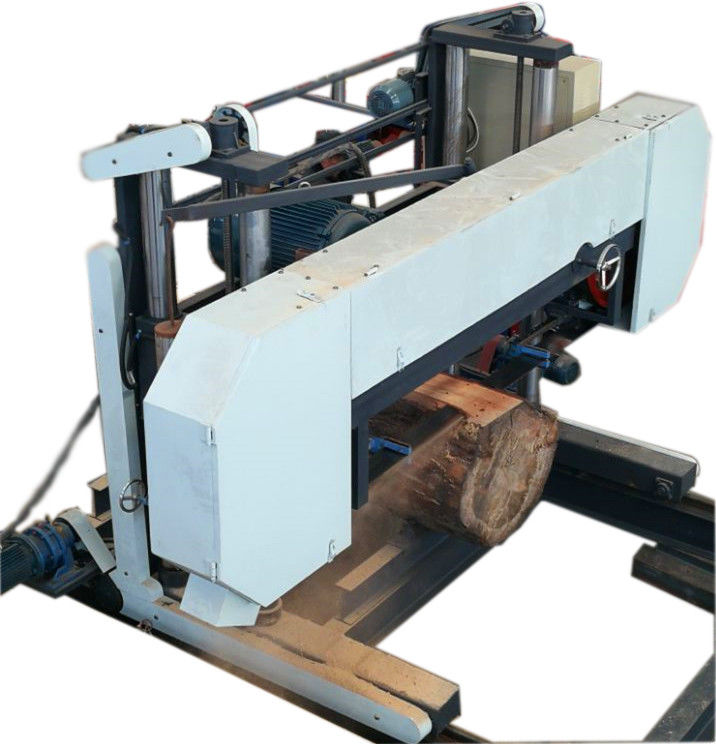

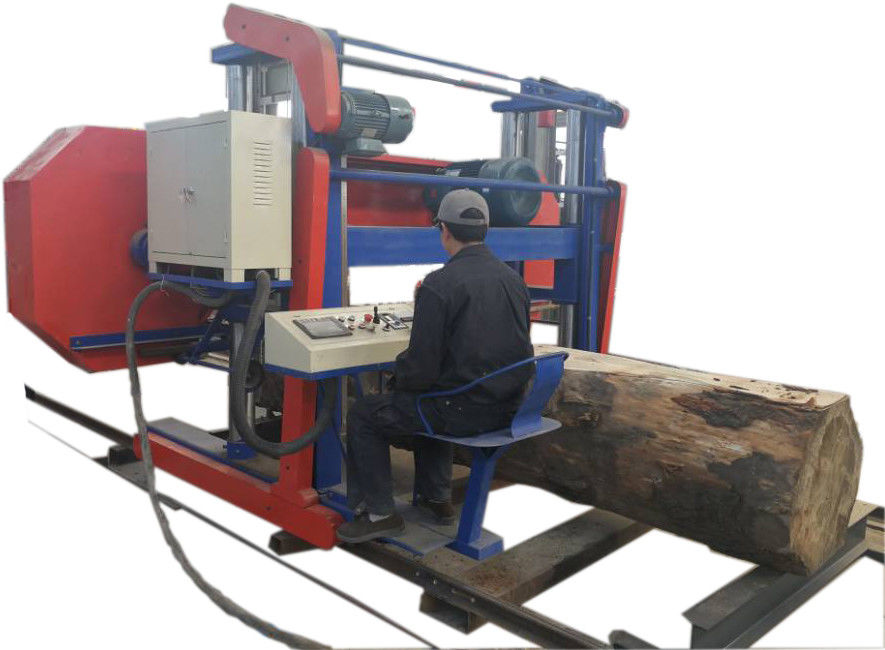

Heavy Duty Large Size Horizontal Band Sawmill
Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .
It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
| Sawing thickness (MM) | 400 | 450 | 480 | 480 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Main Motor Power (KW) | 22 | 37 | 45 | 45 |
| Total Power (6 Motors) (KW) | 30 | 45 | 53 | 53 |
| Total Weight (KG) | 3800 | 4500 | 5000 | 5500 |
| Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file . |
||||
Diesel Engine Powered Large Size Horizontal Band Sawmill
| Technical specification | MJ2000D |
| Cut max. diameter (mm) | 2000 |
| Saw wheel diameter (mm) | 1070 |
| Cutting thickness (mm) | 10-400 |
| Cut length (m) | 10m |
| Band saw blade size (mm) | 1.25x125/150x9800 |
| Saw Walking | Frequency variable |
| Saw blade tension | electrical |
| Saw Elevating | Electrical |
| Main motor | 60HP Diesel engine |
| Total weight (kgs) | 5500 |
