1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200,MJ1500,MJ1800, MJ2000, MJ2500
Minimum Order Quantity: 1 SET wood saw machine
Price: US $12,000 - 31,000 / Set
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Detail Information
Product Name: Heavy Duty Horizontal Band Saw Machine In Sawmill For Cutting Logs Power: 30KW To 53KW
Saw Wheel Diameter: 1070mm Max. Sawing Width: 2000mm, 2500mm Or As Customer Needs
Feeding: Automatic Frequency Speed Adjustable Applicable Industries: Manufacturing Plant,woodworking Sawmill
Keyword: Horizontal Band Saw Machine,horizontal Band Sawmill Wood Cutting Color: Customer Actual Requirements
After-sales Service Provided: Online Support,commissioning And Training Warranty: 12 Months
Highlight:

37KW Timber Band Saw Machine

,

1500mm Timber Band Saw Machine

,

Horizontal Log Band Sawmill


Product Description

Large Timber Band Saw Machine Wood Band Saw Mill Log Band Sawmill

Heavy Duty Large Size Horizontal Band Sawmill



1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

3. Diesel engine powered big sawmill is workable



Structure Features:

1.High quality parts, SKF bearings from Sweden

2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .



Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 1070 1070 1070 1070
Sawing thickness (MM) 400 400 400 400
Max Sawing wood Length (MM) 6000 6000 6000 6000
Main Motor Power (KW) 30 37 45 55
Or diesel engine +20kw generator 80HP 80HP 80HP 80HP
Walking motor (kw) 3kw 3kw 3kw 3kw
Total Weight (KG) 3800 4500 5000 5500

Structure feature:

Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .



1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 0

1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 1

Optional- free base ground sawmill track

1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 2

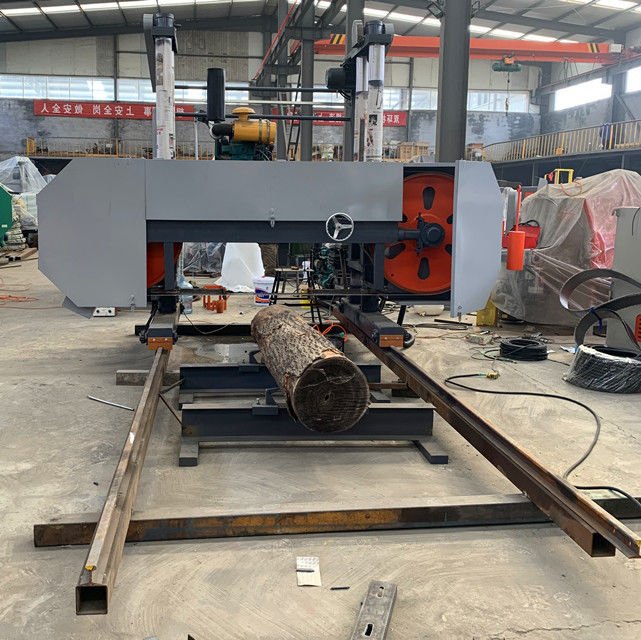

Diesel Engine Powered band Saw

1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 31500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 4

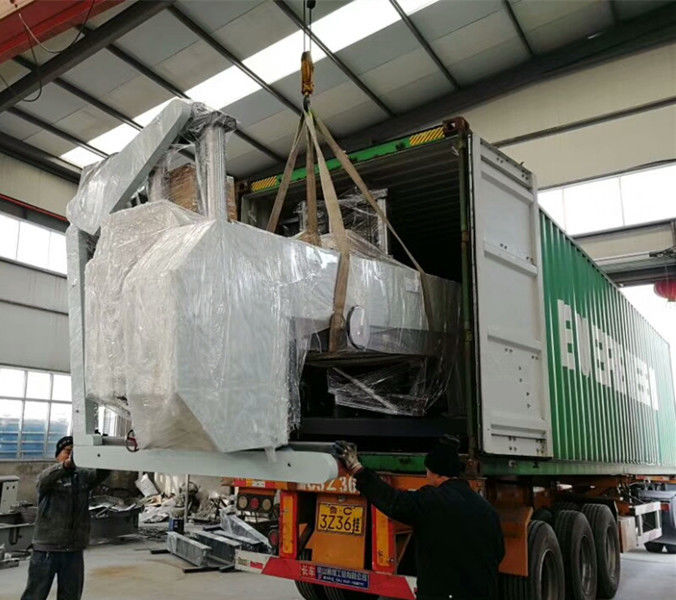

Container loading

1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 5



Hydraulic Automatic Big Log Sawmill



1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 6



Edger Saw

1500mm Large Horizontal Log Saw Machine Horizontal Big Log Band Sawmill 7
