Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine

1 SET
MOQ
US $16,000 - 29,000 / Set
Price
Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Large Horizontal Log Saw Machine
Conditon: New
Type: Band Saw
Max. Sawing Length: 6meters Or Extend Sawmill Track For Free
Power: 55KW
Saw Wheel Diameter: 1070mm
Max. Cutting Width: 2500mm
Bandsaw Blade Size: 10500x125mm
Operation: PLC Touching Screen Automatic
Warranty: 12 Months
Voltage: 380V/3phase/50HZ Or As Customer Needs
After-sales Service Provided: Online Support,commissioning And Training
Highlight:

55KW Large Bandsaw Mill

,

2500mm Dia Bandsaw Wood Mill

,

Large Bandsaw Mill 2500mm Dia
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Product Description

Large horizontal log saw machine, Automatic Saw Machines for big diameter wood sawing



Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .



Technical specifications:



Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg




















Detailed Image

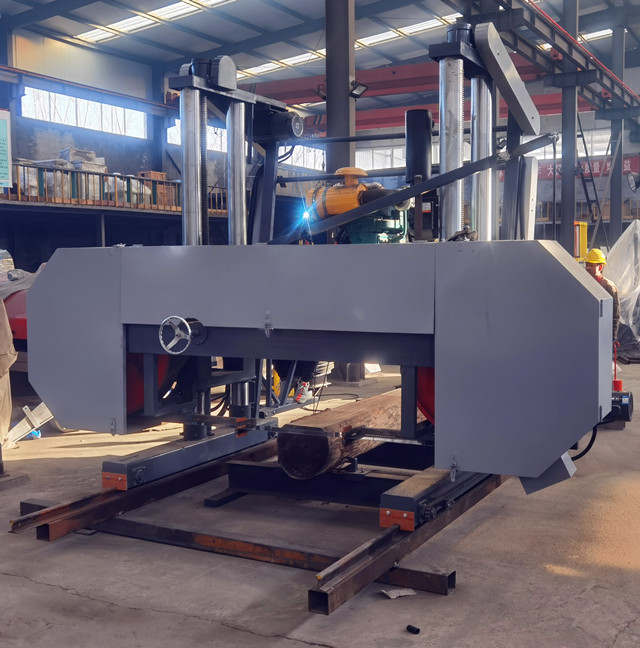

Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 0

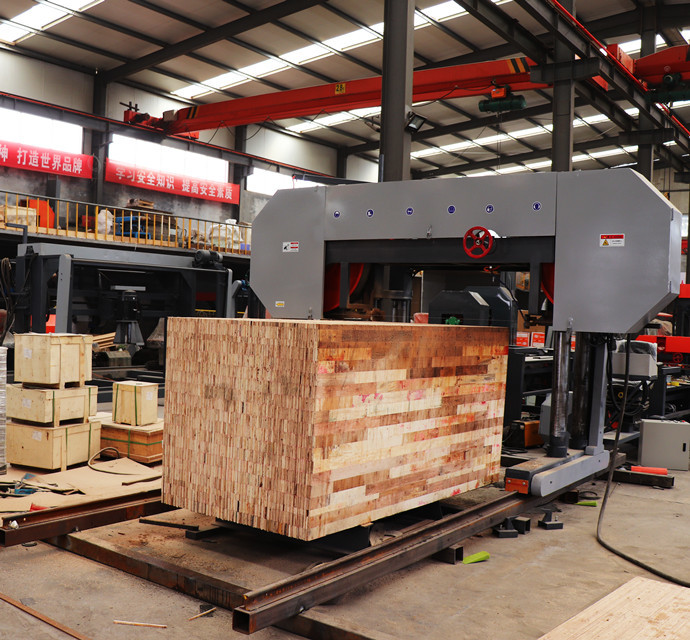

Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 1
Sawmill track

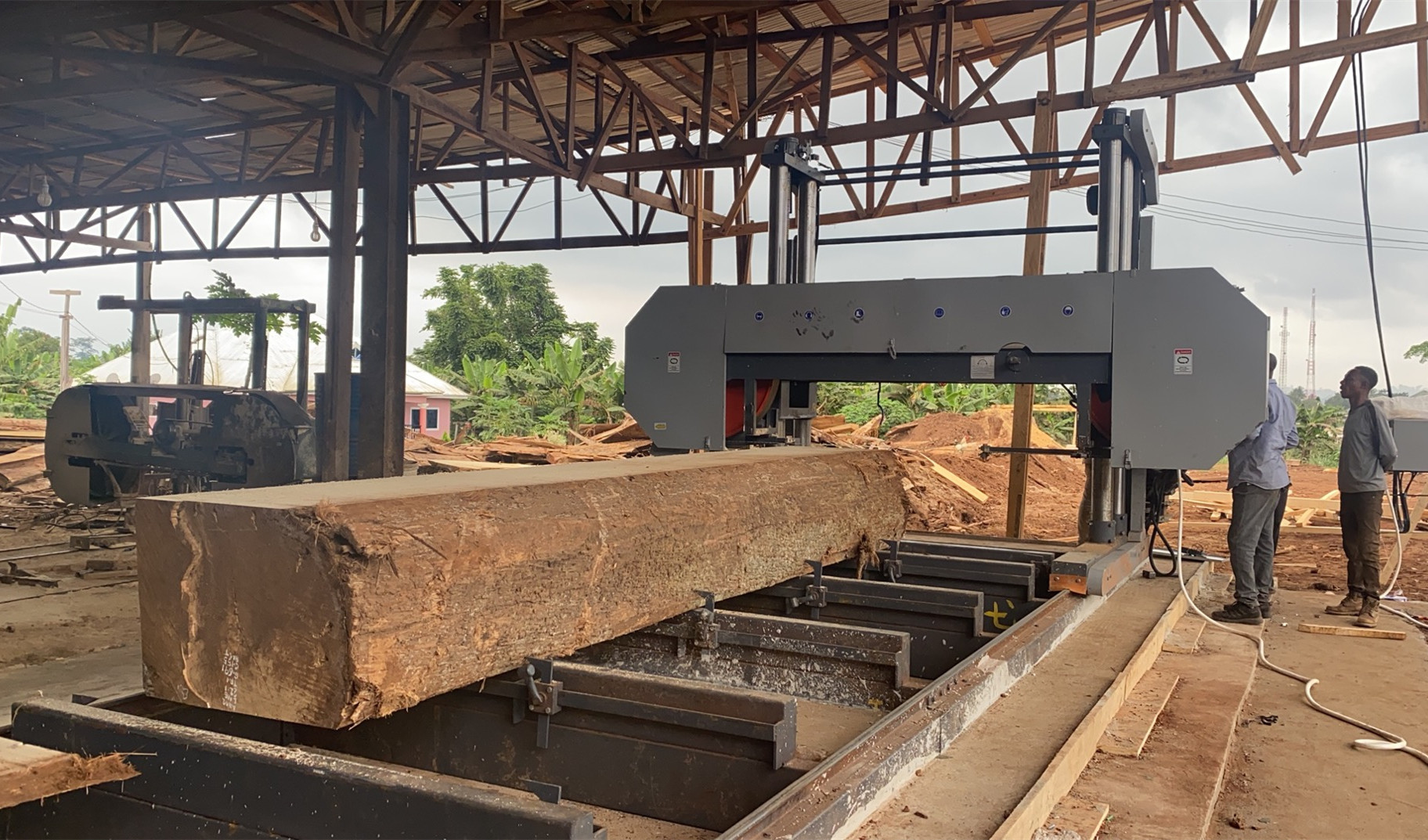

Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 2

Optional parts - free base ground sawmill track
Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 3

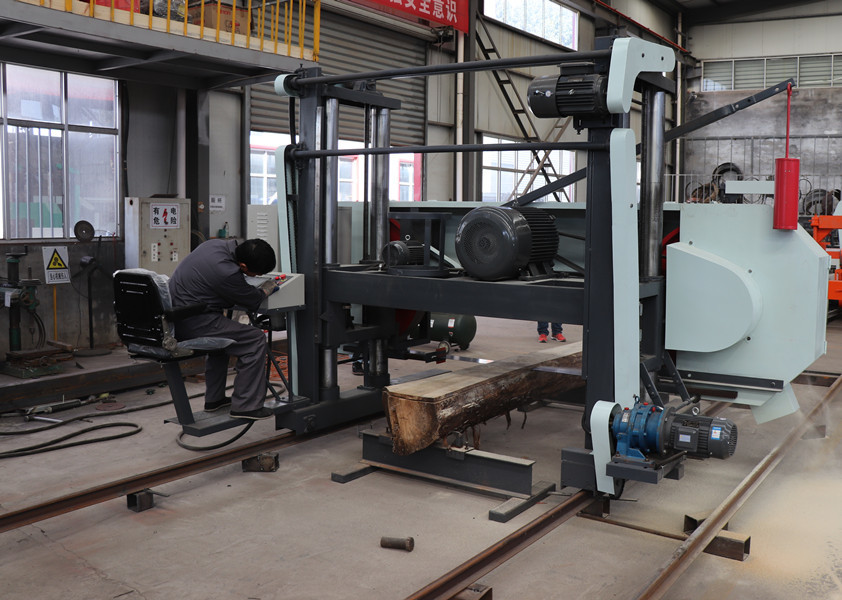

Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification MJ2000D
Cut max. diameter (mm) 2000
Saw wheel diameter (mm) 1070
Cutting thickness (mm) 10-400
Cut length (m) 10m
Band saw blade size (mm) 1.25x125/150x9800
Saw Walking Frequency variable
Saw blade tension electrical
Saw Elevating Electrical
Main motor 60HP Diesel engine
Total weight (kgs) 5500

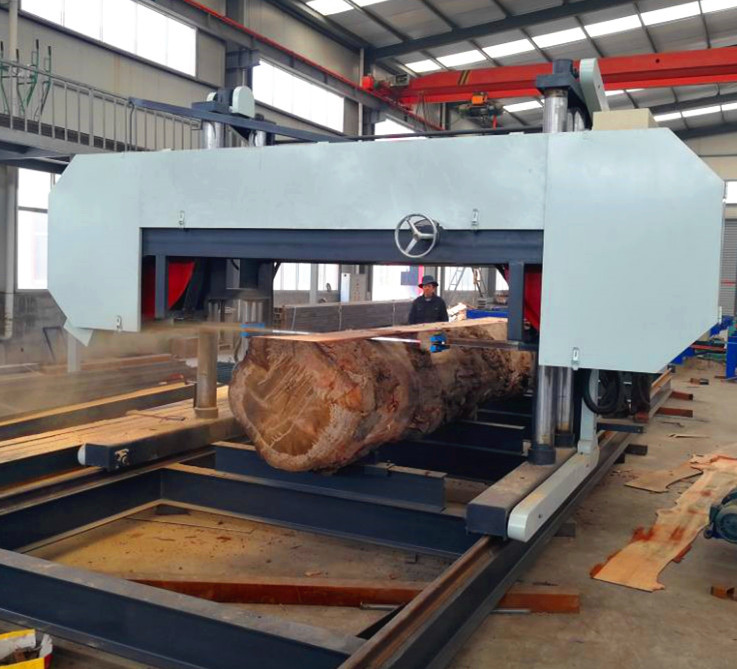

Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 4

Large Bandsaw Mill 2500mm Dia Bandsaw Wood Saw Mill Automatic Sawmill Machine 5
