| Place of Origin: | Shandong Province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | MJ1200,MJ1500,MJ2000,MJ2500 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $12,000 - 31,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |
| Conditon: | New | Type: | Bandsaw Mill |
|---|---|---|---|
| Operation: | PLC Touching Screen Automatic | Engine: | Electrical Type Or Diesel Engine Powered |
| Max. Sawing Log Width: | 2000mm | Max. Sawing Log Length: | Any Length , No Limit |
| Sawn Sizes Setting: | PLC Touching Screen Auto Setworks | Saw Wheel Diameter: | 1070mm |

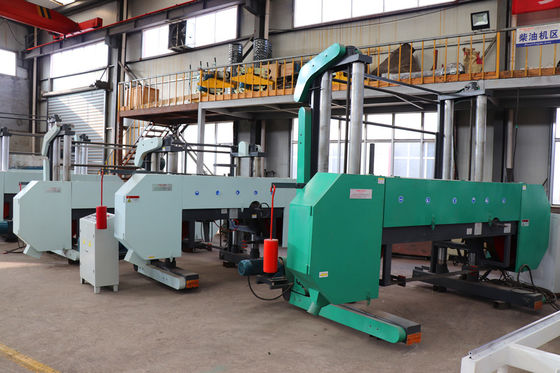

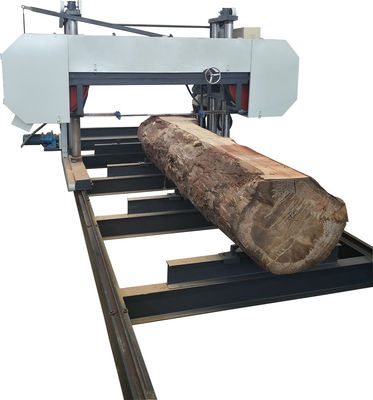

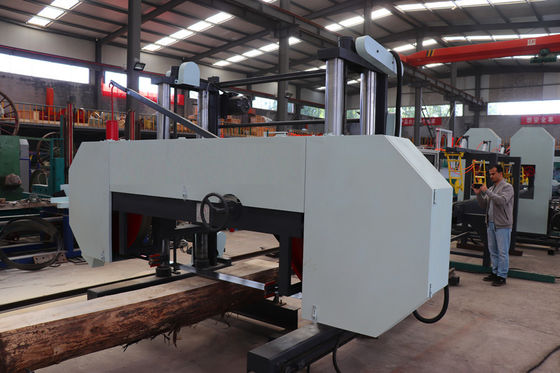

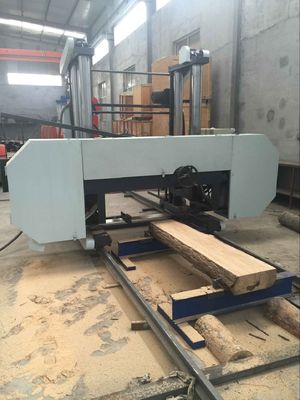

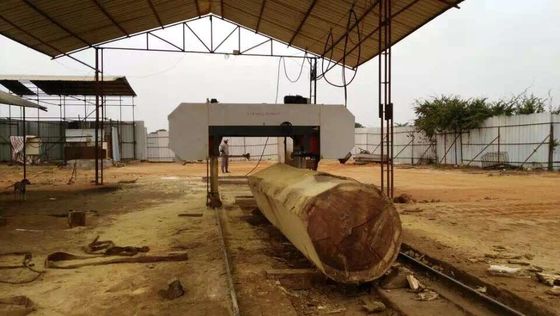

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.
Technical specifications:
| Technical Parameter | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max Sawing Wood Diameter (MM) | 1200 | 1500 | 2000 | 2500 |
| Saw wheel diameter (MM) | 900 | 1000 | 1100 | 1100 |
| Sawing thickness (MM) | 400 | 450 | 480 | 480 |
| Max Sawing wood Length (MM) | 10000 | 10000 | 10000 | 10000 |
| Main Motor Power (KW) | 22 | 37 | 45 | 45 |
| Total Power (6 Motors) (KW) | 30 | 45 | 53 | 53 |
| Total Weight (KG) | 2800 | 3000 | 3800 | 4000 |
| Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Cabinet and Seats built on the sawmill 4 group Mobile card wood file . |
||||

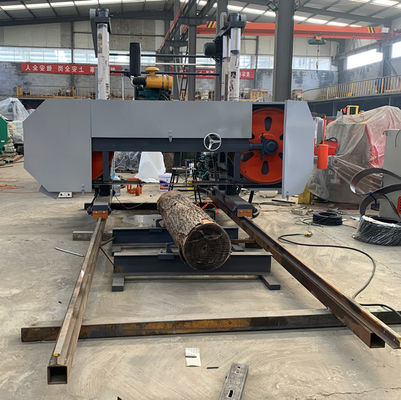

Diesel Engine Powered Large Size Horizontal Band Sawmill
| Technical specification | MJ2000D |
| Cut max. diameter (mm) | 2000 |
| Saw wheel diameter (mm) | 1070 |
| Cutting thickness (mm) | 10-400 |
| Cut length (m) | 10m |
| Band saw blade size (mm) | 1.25x125/150x9800 |
| Saw Walking | Frequency variable |
| Saw blade tension | electrical |
| Saw Elevating | Electrical |
| Main motor | 80HP Diesel engine |
| Total weight (kgs) | 4500 |
