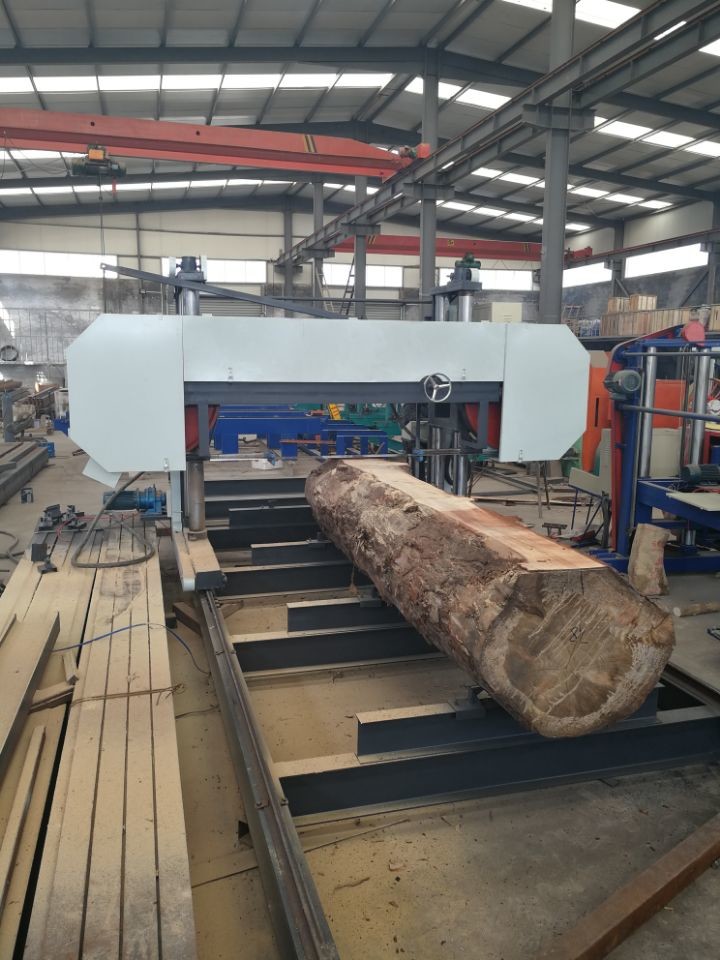

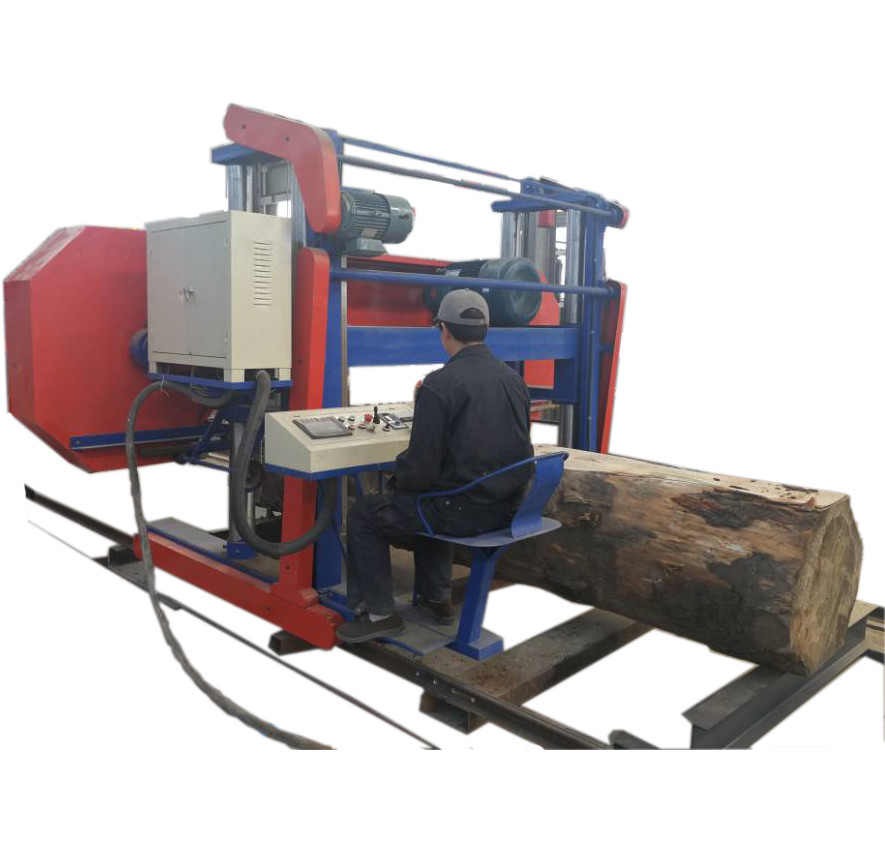

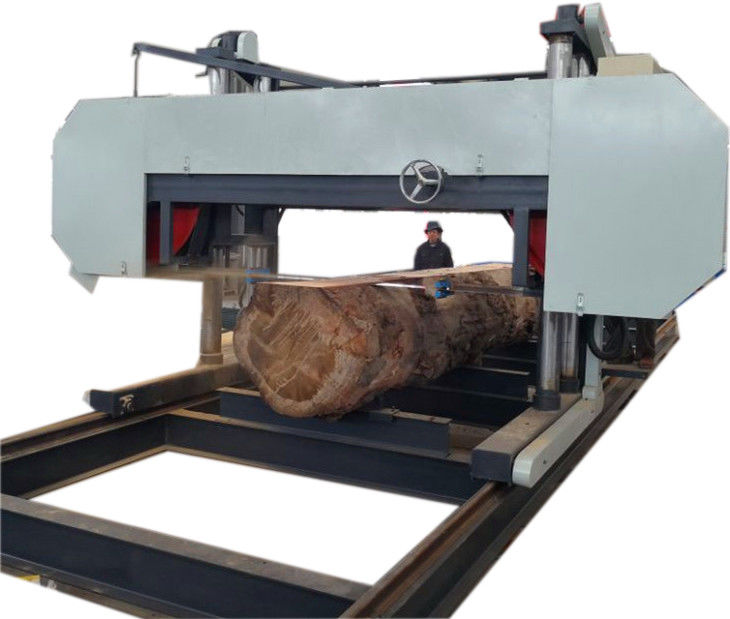

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.

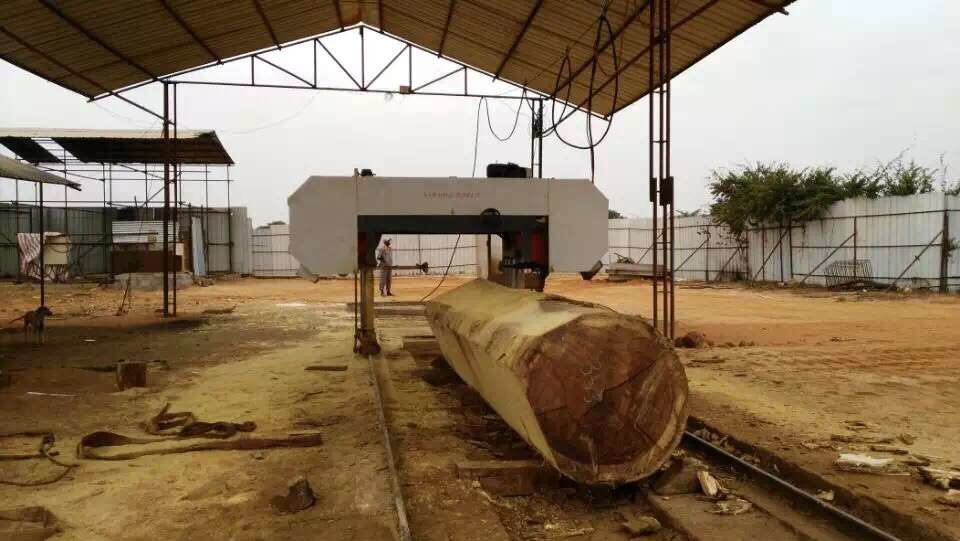

Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.
|
Technical Parameter |
MJ950 |
MJ1200 |
MJ1600 |
MJ1800 |
MJ2000 |
MJ2500 |
||
|
Max Sawing Wood Diameter (MM) |
950 |
1200 |
1600 |
1800 |
2000 |
2500 |
||
|
Saw wheel diameter (MM) |
900 |
900 |
1000 |
1000 |
1100 |
1100 |
||
|
Sawing thickness (MM) |
400 |
400 |
450 |
450 |
480 |
480 |
||
|
Max Sawing wood Length (MM) |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
||
|
Main Motor Power (KW) |
22 |
22 |
37 |
37 |
45 |
45 |
||
|
Total Power (6 Motors) (KW) |
30 |
30 |
45 |
45 |
53 |
53 |
||
|
Total Weight (KG) |
2500 |
2800 |
3000 |
3500 |
3800 |
4000 |
||
|
Electric & Screw Band Saw Blade Tension Infinitely variable speeds forward and backward Touch Screen sawing thickness setting Control Carbinet and Seats built on the sawmill 4 group Mobile card wood file . |
||||||||
