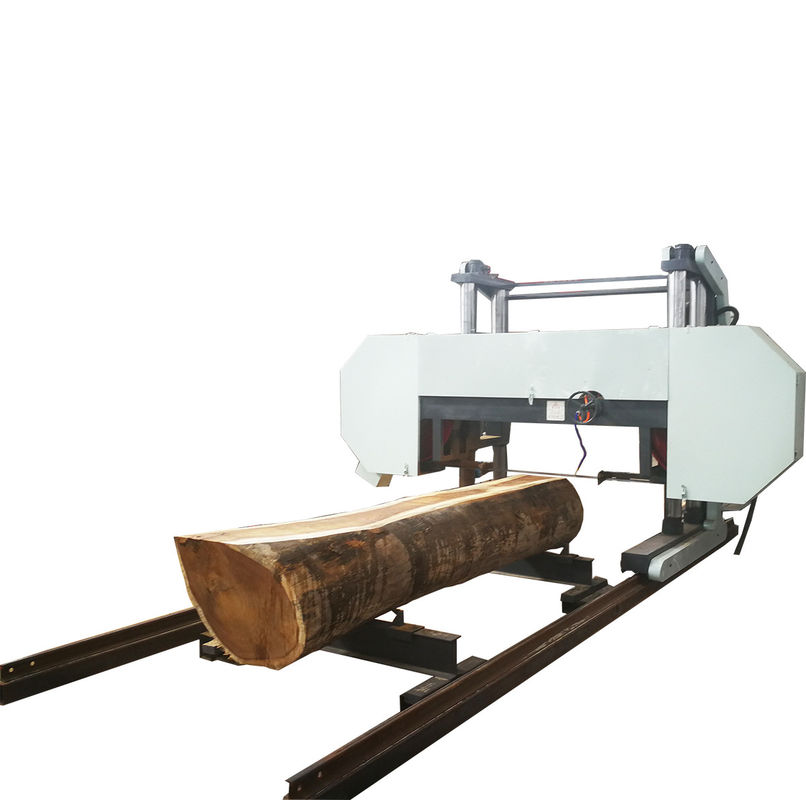

MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet

1 SET wood saw machine
MOQ
US $12,000 - 31,000 / Set
Price
MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Band Saw Machine
Max. Sawing Wood Width: 2000mm
Power(w): 45KW
Max. Sawing Wood Length: 6meters Or Extend Sawmill Track For Free
Saw Wheel Diameter: 1070mm
Warranty: 12 Months
Walking Motor: 3kw
Saw Head Elevation: 2.2kw
Blade Tension Motor: 1.5kw
Application: Horizontal Wood Band Saw Sawmill,sawmill Timber Lumber Factory,Furniture Factory
Applicable Industries: Manufacturing Plant,woodworking Sawmill
Keyword: Horizontal Band Saw Machine,horizontal Band Sawmill Wood Cutting
After-sales Service Provided: Online Support,commissioning And Training
Highlight:

MJ2000 Heavy Duty Sawmill

,

MJ2000 Big Wood Band Saw

,

2000mm Heavy Duty Sawmill

Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200 MJ1500 MJ2000 MJ2500
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Product Description

MJ2000 Heavy Duty Sawmill Machine, Horizontal Cutting Big Wood Saw Machine with control cabinet



Heavy Duty Large Size Horizontal Band Sawmill



1. Combined with the current automation technology, the heavy duty horizontal band saw machine is a high quality product .

2. It solves the difficulty of sawing lagrge diameter wood in the past and applies for national patents. A great many products are exported to Gabon, Angola , Fiji and Southeast Asian Countries.

3. Diesel engine powered big sawmill is workable

4.Working video link : https://youtu.be/f6KLyUnMFf0



Structure Features:

1.High quality parts, SKF bearings from Sweden

2.Variable frequency speed adjustable walking forward/back. The walking speed is 1-20meters/minute .



Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 1070 1070 1070 1070
Sawing thickness max (MM) 350 350 400 400
Max Sawing wood Length (MM) 6000 6000 6000 6000
Main Motor Power (KW) 30 37 45 55
Blade length(mm) 7900 8600 9700 10500
Total Weight (KG) 3800 4500 5000 5500
  • Electric & Screw Band Saw Blade Tension
  • Infinitely variable speeds forward and backward
  • Touch Screen sawing thickness setting
  • Control Cabinet and Seats built on the sawmill
  • 4 group Mobile card wood file .

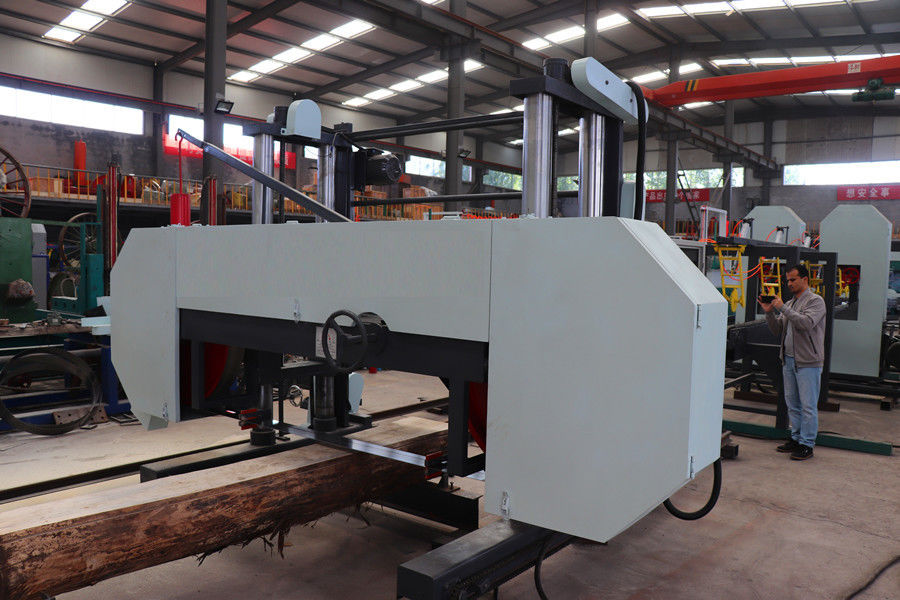

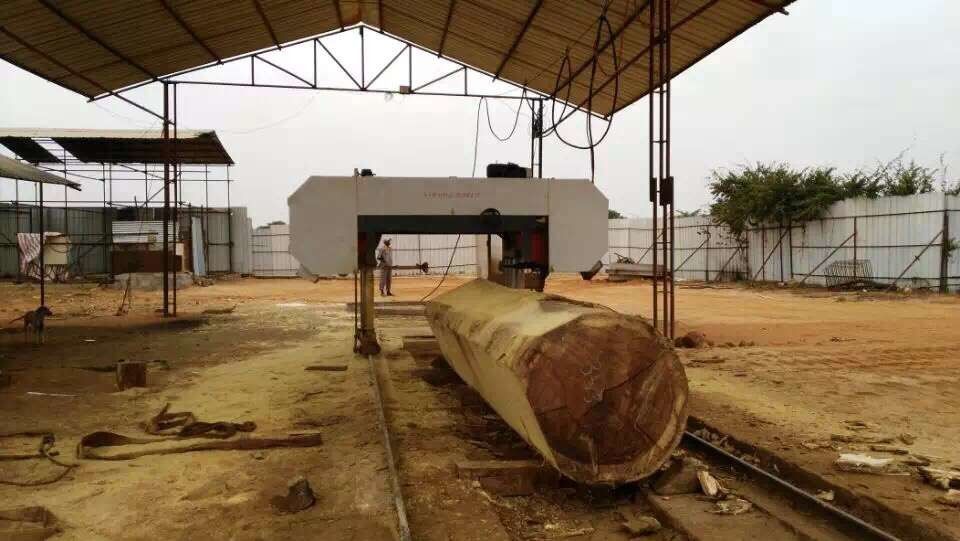

MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet 0MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet 1

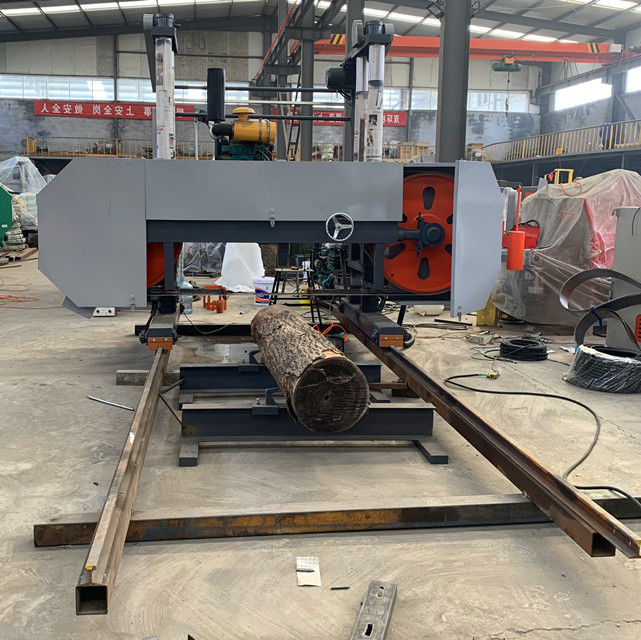

Diesel Engine Powered band Saw

Technical specifications:

Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 1070 1070 1070 11070
Sawing thickness max (MM) 350 350 400 400
Max Sawing wood Length (MM) 10000 10000 10000 10000
Diesel engine power (HP) 80 80 80 80
Blade length (mm) 7900 8600 9700 10500
Total Weight (KG) 3800 4500 5000 5500
  • Electric & Screw Band Saw Blade Tension
  • Infinitely variable speeds forward and backward
  • Touch Screen sawing thickness setting
  • Control Cabinet and Seats built on the sawmill
  • 4 group Mobile card wood file .

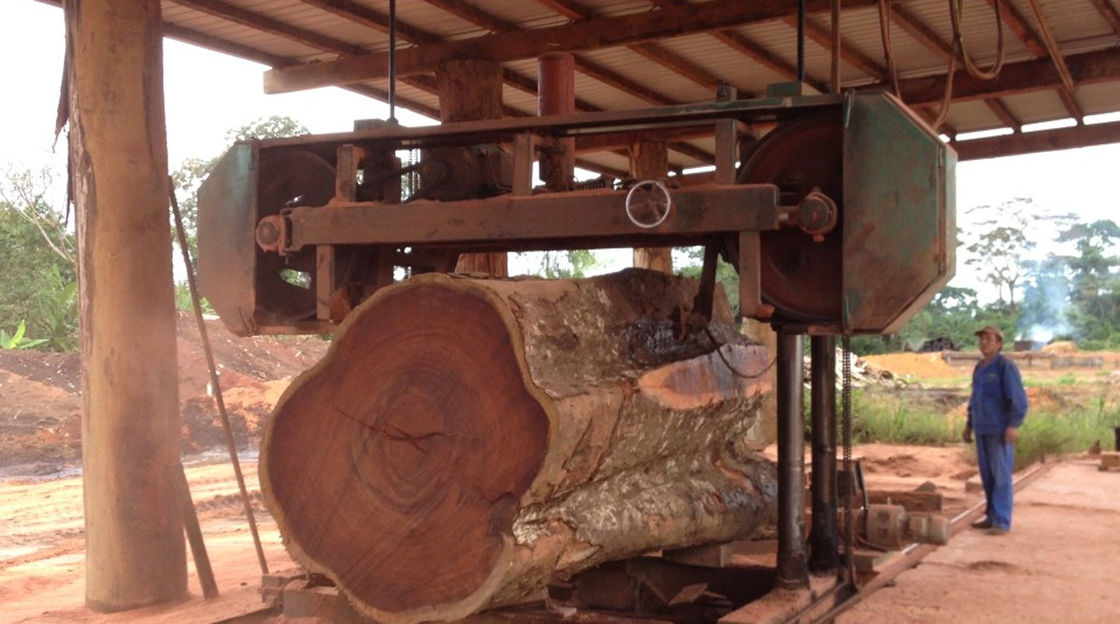

MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet 2MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet 3

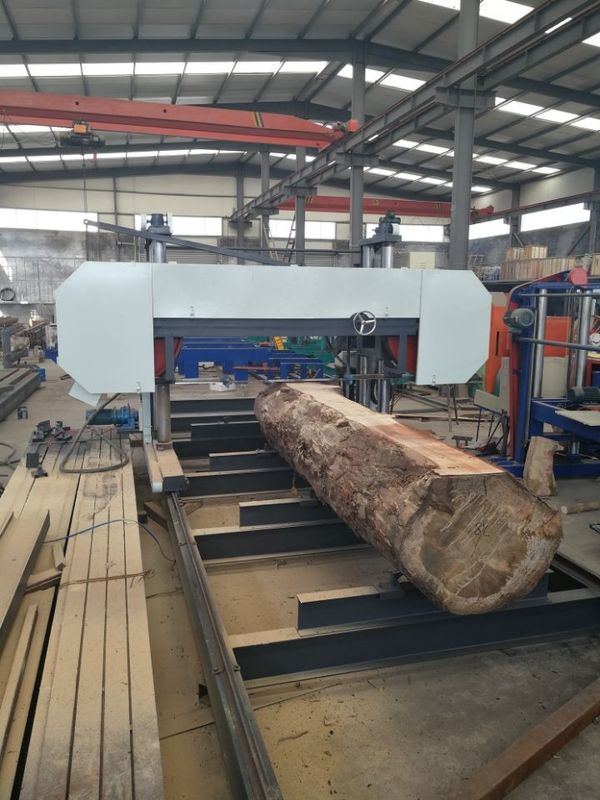

MJ2000 Heavy Duty Sawmill Big Wood Band Saw With Control Cabinet 4
