large wood bandsaw machine / large bandsaw horizontal Bandsaw, Log cutting band sawmill

1 SET
MOQ
US $12,000 - 31,000 / Set
Price
large wood bandsaw machine / large bandsaw horizontal Bandsaw, Log cutting band sawmill
Features Gallery Product Description Request A Quote
Features
Specifications
Conditon: Conditon
Type: Horizontal Band Saw
Use: Woodworking
Diesel Engine: 60HP
Max. Sawing Log Width: 2500mm
Band Wheel Diameter: 1070mm
Bandsaw Blade Width: 125mm
Operation: PLC Touching Screen Automatic
Feeding: Inveter Auto Feeding And Speed Adjustable
Blade Tension: Electrical
Weight: 3800kg To 5500kgs
Warranty: 12 Months
Basic Infomation
Place of Origin: shandong province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ1200MJ1500MJ1800 MJ2000 MJ2500 MJ3000
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 500sets/year
Product Description

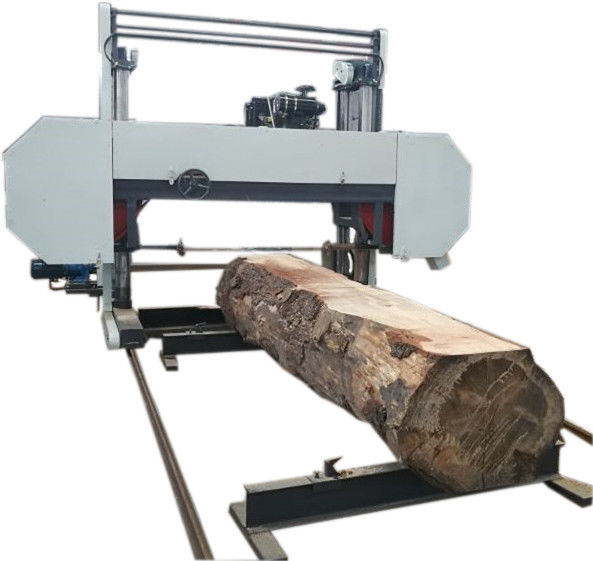

Heavy Duty Large Size Horizontal Band Sawmill
The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
It have large saw wheel and high power.
Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola.


Working video link : https://youtu.be/f6KLyUnMFf0 / https://youtu.be/JtZscNdQx_A

https://youtu.be/na_jLTSg6Nc


Technical specifications:



Diesel Engine Powered Large Size Horizontal Band Sawmill

Technical specification MJ2000D
Cut max. diameter (mm) 2000
Saw wheel diameter (mm) 1070
Cutting thickness (mm) 10-400
Cut length (m) 10m
Band saw blade size (mm) 1.25x125/150x9800
Saw Walking Frequency variable
Saw blade tension electrical
Saw Elevating Electrical
Main motor 60HP Diesel engine
Total weight (kgs) 5500

large wood bandsaw machine / large bandsaw horizontal Bandsaw, Log cutting band sawmill 0

Electrical Type:



Technical Parameter MJ1200 MJ1500 MJ2000 MJ2500
Max Sawing Wood Diameter (MM) 1200 1500 2000 2500
Saw wheel diameter (MM) 900 1000 1100 1100
Sawing thickness (MM) 400 450 480 480
Max Sawing wood Length (MM) 10000 10000 10000 10000
Main Motor Power (KW) 22 37 45 45
Total Power (6 Motors) (KW) 30 45 53 53
Total Weight (KG) 3800 4500 5000 5500
Electric & Screw Band Saw Blade Tension
Infinitely variable speeds forward and backward
Touch Screen sawing thickness setting
Control Cabinet and Seats built on the sawmill
4 group Mobile card wood file .
